atanh - Inverse hyperbolic tangent

Syntax

Y = atanh(X)

Description

The atanh function operates element-wise on arrays. The function's domains and ranges include complex values. All angles are in radians.

Y = atanh(X) returns the inverse hyperbolic tangent for each element of X.

Examples

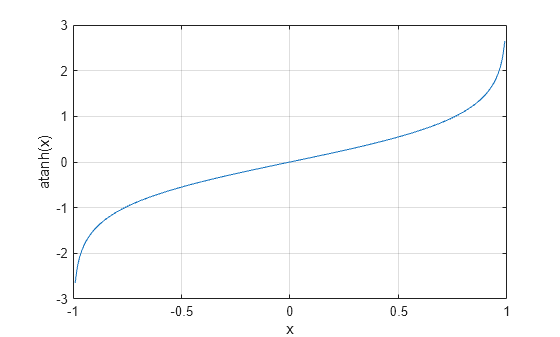

Graph the inverse hyperbolic tangent function over the domain .

x = -0.99:0.01:0.99;
plot(x,atanh(x)), grid on

Definition

The hyperbolic inverse tangent can be defined as

Algorithm

atanh uses FDLIBM, which was developed at SunSoft, a Sun Microsystems business, by Kwok C. Ng, and others. For information about FDLIBM, see http://www.netlib.org.

See Also

atan2, atan, tanh
