Filter Builder Design Panes
Main Design Pane
The main pane of Filter Builder varies depending on the filter
response type, but the basic structure is the same. The following
figure shows the basic layout of the dialog box.
As you choose the response for the filter, the available options
and design parameters displayed in the dialog box change. This display
allows you to focus only on parameters that make sense in the context
of your filter design.
Every filter design dialog box includes the options displayed
at the top of the dialog box, shown in the following figure.
Save variable as — When
you click Apply to apply your changes or OK to
close this dialog box, filterBuilder
saves the
current filter to your MATLAB workspace as a filter object with the
name you enter.
View Filter Response —
Displays the magnitude response for the current filter specifications
and design method by opening the Filter Visualization Tool (fvtool
).
Note:
The filterBuilder dialog box includes an Apply option.
Each time you click Apply, filterBuilder writes
the modified filter to your MATLAB workspace. This modified filter
has the variable name you assign in Save variable as.
To apply changes without overwriting the variable in you workspace,
change the variable name in Save variable as before
you click Apply. |
There are three tabs in the Filter Builder dialog box, containing
three panes: Main, Data Types,
and Code Generation. The first pane changes according
to the filter being designed. The last two panes are the same for
all filters. These panes are discussed in the following sections.
Data Types Pane

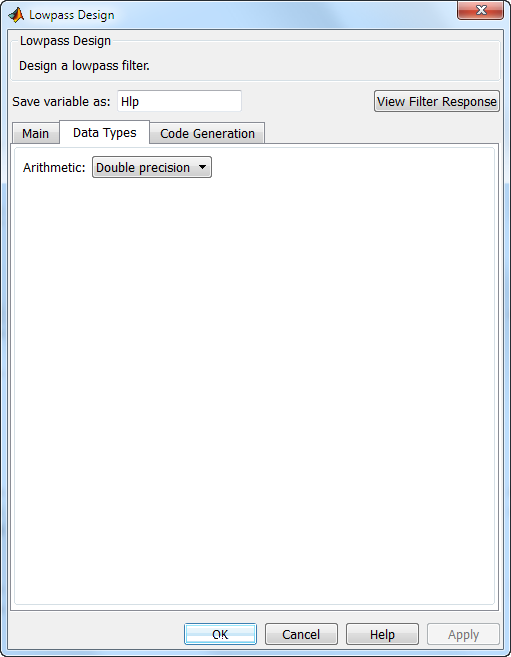

The second tab in the Filter Builder dialog box is shown in
the following figure.
The Arithmetic drop down box allows the
choice of Double precision
, Single
precision
, or Fixed point
.
Some of these options may be unavailable depending on the filter parameters.
The following table describes these options.
Arithmetic List Entry | Effect on the Filter |
Double precision | All filtering operations and coefficients use double-precision,
floating-point representations and math. When you use filterBuilder to
create a filter, double precision is the
default value for the Arithmetic property. |
Single precision | All filtering operations and coefficients use single-precision
floating-point representations and math. |
Fixed point | This entry applies selected default values, typically used
on many digital processors, for the properties in the fixed-point
filter. These properties include coefficient word lengths, fraction
lengths, and various operating modes. This setting allows signed fixed
data types only. Fixed-point filter design with filterBuilder is
available only when you install Fixed-Point Designer™ software along
with DSP System Toolbox software. |
The following figure shows the Data Types pane
after you select Fixed point
for Arithmetic and
set Filter internals to Specify precision
.
This figure shows the Data Types pane for the
case where the Use a System object to implement filter check
box is not selected in the Main pane.
When you select Use a System object to implement filter check
box in the Main pane, the Data Types pane
appears as below:
Not all parameters described in the following section apply
to all filters. For example, FIR filters do not have the Section
input and Section output parameters.
- Input signal
Specify the format the filter applies to data to be filtered.
For all cases, filterBuilder
implements filters
that use binary point scaling and signed input. You set the word length
and fraction length as needed.
- Coefficients
Choose how you specify the word length and the fraction length
of the filter numerator and denominator coefficients:
Specify word length
enables
you to enter the word length of the coefficients in bits. In this
mode, filterBuilder
automatically sets the fraction
length of the coefficients to the binary-point only scaling that provides
the best possible precision for the value and word length of the coefficients.
Binary point scaling
enables
you to enter the word length and the fraction length of the coefficients
in bits. If applicable, enter separate fraction lengths for the numerator
and denominator coefficients.
The filter coefficients do not obey the Rounding
mode and Overflow mode parameters
that are available when you select Specify precision
from
the Filter internals list. Coefficients are always saturated and rounded
to Nearest
.
- Section Input
Choose how you specify the word length and the fraction length
of the fixed-point data type going into each section of an SOS filter.
This parameter is visible only when the selected filter structure
is IIR and SOS.
- Section Output
Choose how you specify the word length and the fraction length
of the fixed-point data type coming out of each section of an SOS
filter. This parameter is visible only when the selected filter structure
is IIR and SOS.
- State
Contains the filter states before, during, and after filter
operations. States act as filter memory between filtering runs or
sessions. Use this parameter to specify how to designate the state
word and fraction lengths. This parameter is not visible for direct
form and direct form I filter structures because filterBuilder
deduces
the state directly from the input format. States always use signed
representation:
Binary point scaling
enables
you to enter the word length and the fraction length of the accumulator
in bits.
Specify precision
enables
you to enter the word length and fraction length in bits (if available).
- Product
Determines how the filter handles the output of product operations.
Choose from the following options:
Full precision
—
Maintain full precision in the result.
Keep LSB
— Keep
the least significant bit in the result when you need to shorten the
data words.
Specify Precision
—
Enables you to set the precision (the fraction length) used by the
output from the multiplies.
- Filter internals
Specify how the fixed-point filter performs arithmetic operations
within the filter. The affected filter portions are filter products,
sums, states, and output. Select one of these options:
Full precision
—
Specifies that the filter maintains full precision in all calculations
for products, output, and in the accumulator.
Specify precision
—
Set the word and fraction lengths applied to the results of product
operations, the filter output, and the accumulator. Selecting this
option enables the word and fraction length controls.
- Signed
Selecting this option directs the filter to use signed representations
for the filter coefficients.
- Word length
Sets the word length for the associated filter parameter in
bits.
- Fraction length
Sets the fraction length for the associate filter parameter
in bits.
- Accum
Use this parameter to specify how you would like to designate
the accumulator word and fraction lengths.
Determines how the accumulator outputs stored values. Choose
from the following options:
Full precision
—
Maintain full precision in the accumulator.
Keep MSB
— Keep
the most significant bit in the accumulator.
Keep LSB
— Keep
the least significant bit in the accumulator when you need to shorten
the data words.
Specify Precision
—
Enables you to set the precision (the fraction length) used by the
accumulator.
- Output
Sets the mode the filter uses to scale the output data after
filtering. You have the following choices:
Avoid Overflow
—
Set the output data fraction length to avoid causing the data to overflow. Avoid
overflow
is considered the conservative setting because
it is independent of the input data values and range.
Best Precision
—
Set the output data fraction length to maximize the precision in the
output data.
Specify Precision
—
Set the fraction length used by the filtered data.
- Fixed-point operational parameters
Parameters in this group control how the filter rounds fixed-point
values and how it treats values that overflow.
- Rounding mode
Sets the mode the filter uses to quantize numeric values when
the values lie between representable values for the data format (word
and fraction lengths).
ceil
— Round toward positive
infinity.
convergent
— Round to the
closest representable integer. Ties round to the nearest even stored
integer. This is the least biased of the methods available in this
software.
zero/fix
— Round toward
zero.
floor
— Round toward negative
infinity.
nearest
— Round toward nearest.
Ties round toward positive infinity.
round
— Round toward nearest.
Ties round toward negative infinity for negative numbers, and toward
positive infinity for positive numbers.
The choice you make affects everything except coefficient values
and input data which always round. In most cases, products do not
overflow—they maintain full precision.
- Overflow mode
Sets the mode the filter uses to respond to overflow conditions
in fixed-point arithmetic. Choose from the following options:
The choice you make affects everything except coefficient values
and input data which always round. In most cases, products do not
overflow—they maintain full precision.
- Cast before sum
Specifies whether to cast numeric data to the appropriate accumulator
format before performing sum operations. Selecting Cast
before sum ensures that the results of the affected sum
operations match most closely the results found on most digital signal
processors. Performing the cast operation before the summation adds
one or two additional quantization operations that can add error sources
to your filter results.
If you clear Cast before sum, the filter
prevents the addends from being cast to the sum format before the
addition operation. Choose this setting to get the most accurate results
from summations without considering the hardware your filter might
use. The input format referenced by Cast before sum depends
on the filter structure you are using.
The effect of clearing or selecting Cast before sum is
as follows:
Cleared — Configures filter summation operations
to retain the addends in the format carried from the previous operation.
Selected — Configures filter summation operations
to convert the input format of the addends to match the summation
output format before performing the summation operation. Usually,
selecting Cast before sum generates results from
the summation that more closely match those found from digital signal
processors.
Code Generation Pane
The code generation pane contains options for various implementations
of the completed filter design. Depending on your installation, you
can generate MATLAB, VHDL, and Verilog code from the designed
filter. You can also choose to create or update a Simulink^{®} model
from the designed filter. The following section explains these options.
- HDL
For more information on this option, see Opening the Filter Design HDL Coder GUI from the Filter Builder (Filter Design HDL Coder).
- MATLAB
Generate MATLAB code based on filter specifications
Generate function that returns your filter
as an output
Selecting this option generates a function that designs a filter
object using fdesign
.
Generate function that filters your data
Selecting this option generates a function that takes data as
input, and outputs data filtered with the designed filter. The data
type of the filter output is set according to the data type settings
in the Data Types pane.
Clicking on the Generate MATLAB code button,
brings up a Save File dialog. Specify the file name and location,
and save. The filter is now contained in an editable file.
- Simulink Model
Generate Simulink blocks and subsystems from your
designed filters
When you click Generate Model, the filter
builder generates Simulink blocks and subsystems from your designed
filters.

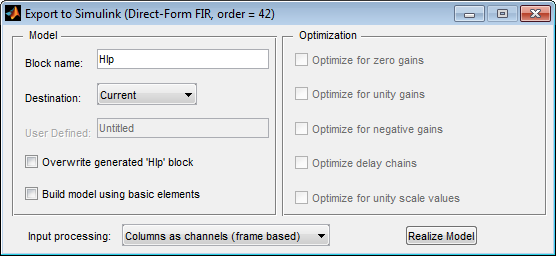

Clicking on the Generate Model button
opens the Export to Simulink dialog box.
Block Name — The name
for the new subsystem block, set to Filter by
default.
Destination — Current
saves
the generated model to the current Simulink model. New
creates
a new model to contain the generated block. User Defined
creates
a new model or subsystem at the location specified in User
Defined
.
Overwrite generated 'Filter' block —
Overwrites an existing block with the name specified in Block
Name. Clear this check box to create a new block with the
same name.
Build model using basic elements —
Builds the model using only basic blocks.
Optimize for zero gains —
Removes all zero-gain blocks from the model.
Optimize for unity gains —
Replaces all unity gains with direct connections.
Optimize for negative gains —
Removes all negative unity gain blocks, and changes sign at the nearest
summation block.
Optimize delay chains —
Replaces delay chains made up of n unit delays
with a single delay by n.
Optimize for unity scale values —
Removes all scale value multiplications by 1 from the filter structure.
Input processing — Specify
how the generated filter block or subsystem block processes the input.
Depending on the type of filter you are designing, one or both of
the following options may be available:
Columns as channels (frame based)
—
The block treats each column of the input as a separate channel.
Elements as channels (sample based)
—
The block treats each element of the input as a separate channel.
For more information about sample-based and frame-based processing,
see Sample- and Frame-Based Concepts.
Realize Model — Builds
the model with the set parameters.
When the Use a System object to implement filter check
box is selected in the Main pane, the Generate
Model button in the Simulink model panel
is disabled under the following conditions:
Select Filter response as Comb
and Arithmetic on
the Data Types pane as Fixed point
.
Select Filter response as Arbitrary
Response
, Impulse response as IIR
,
set Specify response as to either Magnitudes
and phases
or Frequency response
,
and Arithmetic on the Data Types pane
as Fixed point
.
These settings design a dsp.IIRFilter
System object™ with
fixed point arithmetic. Generating a Simulink model for fixed
point dsp.IIRFilter
object is not supported.
Filter Responses
Select your filter response from the filterBuilder
Response
Selection main menu.

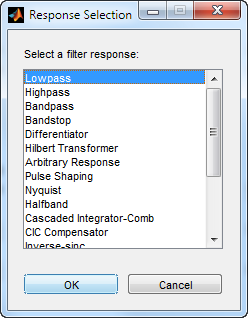

If you have the DSP System Toolbox software, the following Response
Selection menu appears.
Select your desired filter response from the menu and design
your filter.
The following sections describe the options available for each
response type.
Arbitrary Response Filter Design — Main Pane
Filter specifications
Parameters in this group enable you to specify your filter format,
such as the impulse response and the filter order.
- Impulse response
This dialog only applies if you have the DSP System Toolbox software.
Select either FIR
or IIR
from
the drop down list, where FIR
is the default
impulse response. When you choose an impulse response, the design
methods and structures you can use to implement your filter change
accordingly. Arbitrary group delay designs are only available if Impulse
response is IIR
. Without the DSP System Toolbox,
the only available arbitrary response filter design is FIR.
- Order mode
This dialog only applies if you have the DSP System Toolbox software.
Choose Minimum
or Specify
.
Choosing Specify
enables the Order dialog.
- Order
This dialog only applies when Order mode is Specify
.
For an FIR design, specify the filter order. For an IIR design, you
can specify an equal order for the numerator and denominator, or you
can specify different numerator and denominator orders. The default
is equal orders. To specify a different denominator order, check the Denominator
order box. Because the Signal Processing Toolbox only
supports FIR arbitrary-magnitude filters, you do not have the option
to specify a denominator order.
- Denominator order
Select the check box and enter the denominator order. This option
is enabled only if IIR
is selected for Impulse
response.
- Filter type
This dialog only applies if you have the DSP System Toolbox software
and is only available for FIR filters. Select Single-rate
, Decimator
, Interpolator
,
or Sample-rate converter
. Your choice determines
the type of filter as well as the design methods and structures that
are available to implement your filter. By default, filterBuilder
specifies
single-rate filters.
When you design either a decimator or interpolator, the resulting
filter is a bandpass filter that either decimates or interpolates
your input signal.
- Decimation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Decimator
or Sample-rate
converter
. The default factor value is 2 for Decimator
and
3 for Sample-rate converter
.
- Interpolation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Interpolator
or Sample-rate
converter
. The default factor value is 2.
Response Specification
- Number of Bands
Select the number of bands in the filter. Multiband design is
available for both FIR and IIR filters.
- Specify response as:
Specify the response as Amplitudes
, Magnitudes
and phase
, Frequency response
,
or Group delay
. Amplitudes
is
the only option if you do not have the DSP System Toolbox software. Group
delay
is only available for IIR designs.
- Frequency units
Specify frequency units as either Normalized
, Hz
, kHz
, MHz
,
or GHz
.
- Input Fs
Enter the input sampling frequency in the units specified in
the Frequency units drop-down box. This option
is enabled when Frequency units is set to an
option in hertz.
Band Properties
These properties are modified automatically depending on the
response chosen in the Specify response as drop-down
box. Two or three columns are presented for input. The first column
is always Frequencies. The other columns are either Amplitudes, Magnitudes,
Phases, or Frequency Response. Enter the corresponding vectors of
values for each column.
Frequencies and Amplitudes —
These columns are presented for input if you select Amplitudes
in
the Specify response as drop-down box.
Frequencies, Magnitudes,
and Phases — These columns are presented
for input if the response chosen in the Specify response
as drop-down box is Magnitudes and phases
.
Frequencies and Frequency
response — These columns are presented for input
if the response chosen in the Specify response as drop-down
box is Frequency response
.
Algorithm
The options for each design are specific for each design method.
In the arbitrary response design, the available options also depend
on the Response specifications. This section
does not present all of the available options for all designs and
design methods.
- Design Method
Select the design method for the filter. Different methods are
enabled depending on the defining parameters entered in the previous
sections.
- Design Options
Window — Valid when the Design
method is Frequency Sampling
.
Replace the square brackets with the name of a window
function or function handle. For
example, 'hamming'
or @hamming
.
If the window function takes parameters other than the length, use
a cell array. For example, {‘kaiser',3.5}
or {@chebwin,60}
.
Density factor — Valid
when the Design method is equiripple
.
Density factor controls the density of the frequency grid over which
the design method optimization evaluates your filter response function.
The number of equally spaced points in the grid is the value you enter
for Density factor times (filter order + 1).
Increasing the value creates a filter that more closely approximates
an ideal equiripple filter but increases the time required to design
the filter. The default value of 16 represents a reasonable trade
between the accurate approximation to the ideal filter and the time
to design the filter.
The default changes to 20 for an IIR arbitrary group delay design.
Phase constraint — Valid
when the Design method is equiripple
,
you have the DSP System Toolbox installed, and Specify
response as is set to Amplitudes
.
Choose one of Linear
, Minimum
,
or Maximum
.
Weights — Uses the weights
in Weights to weight the error for a single-band
design. If you have multiple frequency bands, the Weights design
option changes to B1 Weights, B2 Weights to
designate the separate bands. Use Bi Weights
to specify weights for the i-th band. The Bi Weights design
option is only available when you specify the i-th band as an unconstrained.
Bi forced frequency point —
This option is only available in a multi-band constrained equiripple
design when Specify response as is Amplitudes
. Bi
forced frequency point is the frequency point in the i-th
band at which the response is forced to be zero. The index i corresponds to the frequency bands in Band
properties. For example, if you specify two bands in Band
properties, you have B1 forced frequency point and B2
forced frequency point.
Norm — Valid only for
IIR arbitrary group delay designs. Norm is the
norm used in the optimization. The default value is 128, which essentially
equals the L-infinity norm. The norm must be even.
Max pole radius — Valid
only for IIR arbitrary group delay designs. Constrains the maximum
pole radius. The default is 0.999999. Reducing the Max
pole radius can produce a transfer function more resistant
to quantization.
Init norm — Valid only
for IIR arbitrary group delay designs. The initial norm used in the
optimization. The default initial norm is 2.
Init numerator — Specifies
an initial estimate of the filter numerator coefficients.
Init denominator — Specifies
an initial estimate of the filter denominator coefficients. This may
be useful in difficult optimization problems. In allpass filters,
you only have to specify either the denominator or numerator coefficients.
If you specify the denominator coefficients, you can obtain the numerator
coefficients.
Filter implementation
- Structure
Select the structure for the filter. The available filter structures
depend on the parameters you select for your filter.
- Use a System object to implement filter
This check box appears when you set Filter type to Single-rate
.
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, this check box is cleared.
This check box no longer appears when you set Filter
type to Interpolator
, Decimator
,
or Sample-rate converter
. The filter builder
always implements the filter as a System object.
Audio Weighting Filter Design — Main Pane
Filter specifications
Weighting type — The weighting
type defines the frequency response of the filter. The valid weighting
types are: A, C , C-message, ITU-T 0.41, and ITU-R 468–4 weighting.
See fdesign.audioweighting
for
definitions of the weighting types.
Class — Filter class is
only applicable for A weighting and C weighting filters. The filter
class describes the frequency-dependent tolerances specified in the
relevant standards. There are two possible class values: 1 and 2.
Class 1 weighting filters have stricter tolerances than class 2 filters.
The filter class value does not affect the design. The class value
is only used to provide a specification mask in fvtool
for the analysis of the filter
design.
Impulse response — Impulse
response type as one of IIR
or FIR
.
For A, C , C-message, and ITU-R 468–4 filter, IIR is the only
option. For a ITU-T 0.41 weighting filter, FIR is the only option.
Frequency units — Choose Hz
, kHz
, MHz
,
or GHz
. Normalized frequency designs are
not supported for audio weighting filters.
Input Fs — The sampling
frequency in Frequency units. For example, if Frequency
units is set to kHz
, setting Input
Fs to 40 is equivalent to a 40 kHz sampling frequency.
Algorithm
Design method — Valid
design methods depend on the weighting type. For type A and C weighting
filters, the only valid design type is ANSI S1.42
.
This is an IIR design method that follows ANSI standard S1.42–2001.
For a C message filter, the only valid design method is Bell
41009
, which is an IIR design method following the Bell
System Technical Reference PUB 41009. For a ITU-R 468–4 weighting
filter, you can design an IIR or FIR filter. If you choose an IIR
design, the design method is IIR least p-norm
.
If you choose an FIR design, the design method choices are: Equiripple
or Frequency
Sampling
. For an ITU-T 0.41 weighting filter, the available
FIR design methods are Equiripple
or Frequency
Sampling
Scale SOS filter coefficients to reduce
chance of overflow — Selecting this parameter directs
the design to scale the filter coefficients to reduce the chances
that the inputs or calculations in the filter overflow and exceed
the representable range of the filter. Clearing this option removes
the scaling. This parameter applies only to IIR filters.
Filter implementation
Structure — For the filter
specifications and design method you select, this parameter lists
the filter structures available to implement your filter. For audio
weighting IIR filter designs, you can choose direct form I or II biquad
(SOS). You can also choose to implement these structures in transposed
form.
For FIR designs, you can choose direct form, direct-form transposed,
direct-form symmetric, direct-form asymmetric structures, or an overlap
and add structure.
Use a System object to implement filter —
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, this check box is cleared. When
the current design method or structure is not supported by a System object filter,
then this check box is disabled.
Bandpass Filter Design — Main Pane
Filter specifications
Parameters in this group enable you to specify your filter format,
such as the impulse response and the filter order.
- Impulse response
Select FIR
or IIR
from
the drop-down list, where FIR
is the default
impulse response. When you choose an impulse response, the design
methods and structures you can use to implement your filter change
accordingly.
Note:
The design methods and structures for FIR filters are not the
same as the methods and structures for IIR filters. |
- Order mode
Select Minimum
(the default) or Specify
from
the drop-down box. Selecting Specify
enables
the Order option so you can enter the filter
order.
If you have the DSP System Toolbox software installed, you
can specify IIR filters with different numerator and denominator orders.
The default is equal orders. To specify a different denominator order,
check the Denominator order box.
- Filter type — This
dialog only applies if you have the DSP System Toolbox software.
Select Single-rate
, Decimator
, Interpolator
,
or Sample-rate converter
. Your choice determines
the type of filter as well as the design methods and structures that
are available to implement your filter. By default, filterBuilder
specifies
single-rate filters.
- Order
Enter the filter order. This option is enabled only if you select Specify
for Order
mode.
- Decimation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Decimator
or Sample-rate
converter
. The default factor value is 2.
- Interpolation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Interpolator
or Sample-rate
converter
. The default factor value is 2.
Frequency specifications
The parameters in this group allow you to specify your filter
response curve. Graphically, the filter specifications look similar
to those shown in the following figure.
In the figure, regions between specification values such as
Fstop1 and Fpass1 represent transition regions where the filter response
is not explicitly defined.
- Frequency constraints
Select the filter features to use to define the frequency response
characteristics. This dialog applies only when Order mode is Specify.
Passband and stopband edges
—
Define the filter by specifying the frequencies for the edges for
the stop- and passbands.
Passband edges
— Define
the filter by specifying frequencies for the edges of the passband.
Stopband edges
— Define
the filter by specifying frequencies for the edges of the stopbands.
3dB points
— Define the
filter response by specifying the locations of the 3 dB points (IIR
filters). The 3-dB point is the frequency for the point 3 dB below
the passband value.
3dB points and passband width
—
Define the filter by specifying frequencies for the 3-dB points in
the filter response and the width of the passband. (IIR filters)
3dB points and stopband widths
—
Define the filter by specifying frequencies for the 3-dB points in
the filter response and the width of the stopband. (IIR filters)
6dB points
— Define the
filter response by specifying the locations of the 6-dB points. The
6-dB point is the frequency for the point 6 dB below
the passband value. (FIR filters)
- Frequency units
Use this parameter to specify whether your frequency settings
are normalized or in absolute frequency. Select Normalized
(0–1)
to enter frequencies in normalized form.
This behavior is the default. To enter frequencies in hertz, select
one of the frequency units from the drop-down list—Hz
, kHz
, MHz
,
or GHz
. Selecting one of the unit options
enables the Input Fs parameter.
- Input Fs
Fs, specified in the units you selected for Frequency
units, defines the sampling frequency at the filter input.
When you provide an input sampling frequency, all frequencies in the
specifications are in the selected units as well. This parameter is
available when you select one of the frequency options from the Frequency
units list.
- Fstop1
Enter the frequency at the edge of the end of the first stopband.
Specify the value in either normalized frequency units or the absolute
units you select in Frequency units.
- Fpass1
Enter the frequency at the edge of the start of the passband.
Specify the value in either normalized frequency units or the absolute
units you select Frequency units.
- Fpass2
Enter the frequency at the edge of the end of the passband.
Specify the value in either normalized frequency units or the absolute
units you select Frequency units.
- Fstop2
Enter the frequency at the edge of the start of the second stopband.
Specify the value in either normalized frequency units or the absolute
units you select Frequency units.
Magnitude specifications
The parameters in this group let you specify the filter response
in the passbands and stopbands.
- Magnitude constraints
Specify as Unconstrained
or Constrained
bands
. You must have the DSP System Toolbox software
to select Constrained bands
. Selecting Constrained
bands
enables dialogs for both stopbands and the passband: Astop1, Astop2,
and Apass. You cannot specify constraints for
all three bands simultaneously.
Setting Magnitude constraints to Constrained
bands
enables the Wstop and Wpass options
under Design options.
- Magnitude units
Specify the units for any parameter you provide in magnitude
specifications. Select one of the following options from the drop-down
list.
Linear
— Specify
the magnitude in linear units.
dB
— Specify the
magnitude in dB (decibels). This is the default setting.
Squared
— Specify
the magnitude in squared units.
- Astop1
Enter the filter attenuation in the first stopband in the units
you choose for Magnitude units, either linear
or decibels.
- Apass
Enter the filter ripple allowed in the passband in the units
you choose for Magnitude units, either linear
or decibels.
- Astop2
Enter the filter attenuation in the second stopband in the units
you choose for Magnitude units, either linear
or decibels.
Algorithm
The parameters in this group allow you to specify the design
method and structure that filterBuilder
uses to
implement your filter.
- Design Method
Lists the design methods available for the frequency and magnitude
specifications you entered. When you change the specifications for
a filter, such as changing the impulse response, the methods available
to design filters changes as well. The default IIR design method is
usually Butterworth, and the default FIR method is equiripple.
- Scale SOS filter coefficients to reduce
chance of overflow
Selecting this parameter directs the design to scale the filter
coefficients to reduce the chances that the inputs or calculations
in the filter overflow and exceed the representable range of the filter.
Clearing this option removes the scaling. This parameter applies only
to IIR filters.
Design Options
The options for each design are specific for each design method.
This section does not present all of the available options for all
designs and design methods. There are many more that you encounter
as you select different design methods and filter specifications.
The following options represent some of the most common ones available.
- Density factor
Density factor controls the density of the frequency grid over
which the design method optimization evaluates your filter response
function. The number of equally spaced points in the grid is the value
you enter for Density factor times (filter order
+ 1).
Increasing the value creates a filter that more closely approximates
an ideal equiripple filter but increases the time required to design
the filter. The default value of 16 represents a reasonable trade
between the accurate approximation to the ideal filter and the time
to design the filter.
- Phase constraint
Valid when the Design method is equiripple
and
you have the DSP System Toolbox installed. Choose one of Linear
, Minimum
,
or Maximum
.
- Minimum order
This option only applies when you have the DSP System Toolbox software
and Order mode is Minimum
.
Select Any
(default), Even
,
or Odd
. Selecting Even
or Odd
forces
the minimum-order design to be an even or odd order.
- Wstop1
Weight for the first stopband.
- Wpass
Passband weight.
- Wstop2
Weight for the second stopband.
- Max pole radius
Valid only for IIR designs. Constrains the maximum pole radius.
The default is 1. Reducing the max pole radius can produce a transfer
function more resistant to quantization.
- Init norm
Valid only for IIR designs. The initial norm used in the optimization.
The default initial norm is 2.
- Init numerator
Specifies an initial estimate of the filter numerator coefficients.
This may be useful in difficult optimization problems.
- Init denominator
Specifies an initial estimate of the filter denominator coefficients.
This may be useful in difficult optimization problems.
Filter implementation
- Structure
For the filter specifications and design method you select,
this parameter lists the filter structures available to implement
your filter. By default, FIR filters use direct-form structure, and
IIR filters use direct-form II filters with SOS.
- Use a System object to implement filter
This check box appears when you set Filter type to Single-rate
.
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, this check box is cleared.
This check box no longer appears when you set Filter
type to Interpolator
, Decimator
,
or Sample-rate converter
. The filter builder
always implements the filter as a System object.
Bandstop Filter Design — Main Pane
Filter specifications
Parameters in this group enable you to specify your filter format,
such as the impulse response and the filter order.
- Impulse response
Select FIR
or IIR
from
the drop-down list, where FIR
is the default
impulse response. When you choose an impulse response, the design
methods and structures you can use to implement your filter change
accordingly.
Note:
The design methods and structures for FIR filters are not the
same as the methods and structures for IIR filters. |
- Order mode
Select Minimum
(the default) or Specify
from
the drop-down list. Selecting Specify
enables
the Order option so you can enter the filter
order.
If you have the DSP System Toolbox software installed, you
can specify IIR filters with different numerator and denominator orders.
The default is equal orders. To specify a different denominator order,
check the Denominator order box.
- Filter type
Select Single-rate
, Decimator
, Interpolator
,
or Sample-rate converter
. Your choice determines
the type of filter as well as the design methods and structures that
are available to implement your filter. By default, filterBuilder
specifies
single-rate filters.
When you design either a decimator or an interpolator, the resulting
filter is a bandpass filter that either decimates or interpolates
your input signal.
- Order
Enter the filter order. This option is enabled only if Specify
was
selected for Order mode.
- Decimation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Decimator
or Sample-rate
converter
. The default factor value is 2.
- Interpolation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Interpolator
or Sample-rate
converter
. The default factor value is 2.
Frequency specifications
The parameters in this group allow you to specify your filter
response curve. Graphically, the filter specifications look similar
to those shown in the following figure.
- Frequency constraints
Select the filter features to use to define the frequency response
characteristics. This dialog applies only when Order mode is Specify.
Passband and stopband edges
—
Define the filter by specifying the frequencies for the edges for
the stop- and passbands.
Passband edges
—
Define the filter by specifying frequencies for the edges of the passband.
Stopband edges
—
Define the filter by specifying frequencies for the edges of the stopbands.
3dB points
— Define
the filter response by specifying the locations of the 3 dB points
(IIR filters). The 3 dB point is the frequency for the point 3 dB
point below the passband value.
3dB points and passband width
—
Define the filter by specifying frequencies for the 3 dB points in
the filter response and the width of the passband (IIR filters).
3dB points and stopband widths
—
Define the filter by specifying frequencies for the 3 dB points in
the filter response and the width of the stopband (IIR filters).
6dB points
— Define
the filter response by specifying the locations of the 6-dB points
(FIR filters). The 6-dB point is the frequency for the point 6 dB
point below the passband value.
- Frequency units
Use this parameter to specify whether your frequency settings
are normalized or in absolute frequency. Select Normalized
(0–1)
to enter frequencies in normalized form.
This behavior is the default. To enter frequencies in absolute values,
select one of the frequency units from the drop-down list—Hz
, kHz
, MHz
,
or GHz
. Selecting one of the unit options
enables the Input Fs parameter.
- Input Fs
Fs, specified in the units you selected for Frequency
units, defines the sampling frequency at the filter input.
When you provide an input sampling frequency, all frequencies in the
specifications are in the selected units as well. This parameter is
available when you select one of the frequency options from the Frequency
units list.
- Output Fs
When you design an interpolator, Fs represents the sampling
frequency at the filter output rather than the filter input. This
option is available only when you set Filter type is interpolator
.
- Fpass1
Enter the frequency at the edge of the end of the first passband.
Specify the value in either normalized frequency units or the absolute
units you select in Frequency units.
- Fstop1
Enter the frequency at the edge of the start of the stopband.
Specify the value in either normalized frequency units or the absolute
units you select Frequency units.
- Fstop2
Enter the frequency at the edge of the end of the stopband.
Specify the value in either normalized frequency units or the absolute
units you select Frequency units.
- Fpass2
Enter the frequency at the edge of the start of the second passband.
Specify the value in either normalized frequency units or the absolute
units you select Frequency units.
Magnitude specifications
The parameters in this group let you specify the filter response
in the passbands and stopbands.
- Magnitude constraints
Specify as Unconstrained
or Constrained
bands
. You must have the DSP System Toolbox software
to select Constrained bands
. Selecting Constrained
bands
enables dialogs for both passbands and the stopband: Apass1, Apass2,
and Astop. You cannot specify constraints for
all three bands simultaneously.
Setting Magnitude constraints to Constrained
bands
enables the Wstop and Wpass options
under Design options.
- Magnitude units
Specify the units for any parameter you provide in magnitude
specifications. Select one of the following options from the drop-down
list.
Linear
— Specify
the magnitude in linear units.
dB
— Specify the
magnitude in decibels (default).
Squared
— Specify
the magnitude in squared units.
- Apass1
Enter the filter ripple allowed in the first passband in the
units you choose for Magnitude units, either
linear or decibels.
- Astop
Enter the filter attenuation in the stopband in the units you
choose for Magnitude units, either linear or
decibels
- Apass2
Enter the filter ripple allowed in the second passband in the
units you choose for Magnitude units, either
linear or decibels
Algorithm
The parameters in this group allow you to specify the design
method and structure that filterBuilder
uses to
implement your filter.
- Design Method
Lists the design methods available for the frequency and magnitude
specifications you entered. When you change the specifications for
a filter, such as changing the impulse response, the methods available
to design filters changes as well. The default IIR design method is
usually Butterworth, and the default FIR method is equiripple.
- Scale SOS filter coefficients to reduce
chance of overflow
Selecting this parameter directs the design to scale the filter
coefficients to reduce the chances that the inputs or calculations
in the filter overflow and exceed the representable range of the filter.
Clearing this option removes the scaling. This parameter applies only
to IIR filters.
Design Options
The options for each design are specific for each design method.
This section does not present all of the available options for all
designs and design methods. There are many more that you encounter
as you select different design methods and filter specifications.
The following options represent some of the most common ones available.
- Density factor
Density factor controls the density of the frequency grid over
which the design method optimization evaluates your filter response
function. The number of equally spaced points in the grid is the value
you enter for Density factor times (filter order
+ 1).
Increasing the value creates a filter that more closely approximates
an ideal equiripple filter but increases the time required to design
the filter. The default value of 16 represents a reasonable trade
between the accurate approximation to the ideal filter and the time
to design the filter.
- Phase constraint
Valid when the Design method is equiripple
and
you have the DSP System Toolbox installed. Choose one of Linear
, Minimum
,
or Maximum
.
- Minimum order
This option only applies when you have the DSP System Toolbox software
and Order mode is Minimum
.
Select Any
(default), Even
,
or Odd
. Selecting Even
or Odd
forces
the minimum-order design to be an even or odd order.
- Wpass1
Weight for the first passband.
- Wstop
Stopband weight.
- Wpass2
Weight for the second passband.
- Match exactly
Specifies that the resulting filter design matches either the
passband or stopband or both bands when you select passband
or stopband
.
- Max pole radius
Valid only for IIR designs. Constrains the maximum pole radius.
The default is 1. Reducing the max pole radius can produce a transfer
function more resistant to quantization.
- Init norm
Valid only for IIR designs. The initial norm used in the optimization.
The default initial norm is 2.
- Init numerator
Specifies an initial estimate of the filter numerator coefficients.
This may be useful in difficult optimization problems.
- Init denominator
Specifies an initial estimate of the filter denominator coefficients.
This may be useful in difficult optimization problems.
Filter implementation
- Structure
For the filter specifications and design method you select,
this parameter lists the filter structures available to implement
your filter. By default, FIR filters use direct-form structure, and
IIR filters use direct-form II filters with SOS.
- Use a System object to implement filter
This check box appears when you set Filter type to Single-rate
.
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, this check box is cleared.
This check box no longer appears when you set Filter
type to Interpolator
, Decimator
,
or Sample-rate converter
. The filter builder
always implements the filter as a System object.
CIC Filter Design — Main Pane
Filter specifications
Parameters in this group enable you to specify your CIC filter
format, such as the filter type and the differential delay.
- Filter type
Select whether your filter will be a decimator
or
an interpolator
. Your choice determines
the type of filter and the design methods and structures that are
available to implement your filter. Selecting decimator
or interpolator
activates
the Factor option. When you design an interpolator,
you enable the Output Fs parameter.
When you design either a decimator or interpolator, the resulting
filter is a CIC filter that decimates or interpolates your input signal.
- Differential Delay
Specify the differential delay of your CIC filter as an integer
value greater than or equal to 1. The default value is 1. The differential
delay changes the shape, number, and location of nulls in the filter
response. Increasing the differential delay increases the sharpness
of the nulls and the response between the nulls. In practice, differential
delay values of 1 or 2 are the most common.
- Factor
Specify the decimation or interpolation factor for your filter
as an integer value greater than or equal to 1. The default value
is 2.
Frequency specifications
- Frequency units
Use this parameter to specify whether your frequency settings
are normalized or in absolute frequency. Select Normalized
(0–1)
to enter frequencies in normalized form.
This behavior is the default. To enter frequencies in absolute values,
select one of the frequency units from the drop-down list—Hz
, kHz
, MHz
,
or GHz
. Selecting one of the unit options
enables the Input Fs parameter.
- Input Fs
Fs, specified in the units you selected for Frequency
units, defines the sampling frequency at the filter input.
When you provide an input sampling frequency, all frequencies in the
specifications are in the selected units as well. This parameter is
available when you select one of the frequency options from the Frequency
units list.
- Output Fs
Fs, specified in the units you selected for Frequency
units, defines the sampling frequency at the filter output.
When you provide an output sampling frequency, all frequencies in
the specifications are in the selected units as well. This parameter
is available only when you design interpolators.
- Fpass
Enter the frequency at the end of the passband. Specify the
value in either normalized frequency units or the absolute units you
select Frequency units.
Magnitude specifications
- Magnitude units
Specify the units for any parameter you provide in magnitude
specifications. Select one of the following options from the drop-down
list.
Linear
— Specify
the magnitude in linear units.
dB
— Specify the
magnitude in decibels (default).
Squared
— Specify
the magnitude in squared units.
- Astop
Enter the filter attenuation in the stopband in the units you
choose for Magnitude units, either linear or
decibels.
CIC Compensator Design — Main Pane
Filter specifications
Parameters in this group enable you to specify your filter format,
such as the filter order mode and the filter type.
- Order mode
Select Minimum
(the default) or Specify
from
the drop-down list. Selecting Specify
enables
the Order option (see the following sections)
so you can enter the filter order.
- Filter type
Select Single-rate
, Decimator
, Interpolator
,
or Sample-rate converter
. Your choice determines
the type of filter as well as the design methods and structures that
are available to implement your filter. By default, filterBuilder
specifies
single-rate filters.
When you design either a decimator or an interpolator, the resulting
filter is a bandpass filter that either decimates or interpolates
your input signal.
- Order
Enter the filter order. This option is enabled only if Specify
was
selected for Order mode.
- Decimation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Decimator
or Sample-rate
converter
. The default factor value is 2.
- Interpolation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Interpolator
or Sample-rate
converter
. The default factor value is 2.
- Number of CIC sections
Specify the number of sections in the CIC filter for which you
are designing this compensator. Select the number of sections from
the drop-down list or enter the number.
- Differential Delay
Specify the differential delay of your target CIC filter. The
default value is 1
. Most CIC filters use 1 or 2.
Frequency specifications
The parameters in this group allow you to specify your filter
response curve.
Frequency specifications
- Frequency units
Use this parameter to specify whether your frequency settings
are normalized or in absolute frequency. Select Normalized
(0–1)
to enter frequencies in normalized form.
This behavior is the default. To enter frequencies in absolute values,
select one of the frequency units from the drop-down list—Hz
, kHz
, MHz
,
or GHz
. Selecting one of the unit options
enables the Input Fs parameter.
- Input Fs
Fs, specified in the units you selected for Frequency
units, defines the sampling frequency at the filter input.
When you provide an input sampling frequency, all frequencies in the
specifications are in the selected units as well. This parameter is
available when you select one of the frequency options from the Frequency
units list.
- Output Fs
Fs, specified in the units you selected for Frequency
units, defines the sampling frequency at the filter output.
When you provide an output sampling frequency, all frequencies in
the specifications are in the selected units as well. This parameter
is available only when you design interpolators.
- Fpass
Enter the frequency at the end of the passband. Specify the
value in either normalized frequency units or the absolute units you
select Frequency units.
- Fstop
Enter the frequency at the start of the stopband. Specify the
value in either normalized frequency units or the absolute units you
select Frequency units.
Magnitude specifications
The parameters in this group let you specify the filter response
in the passbands and stopbands.
- Magnitude units
Specify the units for any parameter you provide in magnitude
specifications. Select one of the following options from the drop-down
list.
Linear
— Specify
the magnitude in linear units.
dB
— Specify the
magnitude in decibels (default).
Squared
— Specify
the magnitude in squared units.
- Apass
Enter the filter ripple allowed in the passband in the units
you choose for Magnitude units, either linear
or decibels
Algorithm
The parameters in this group allow you to specify the design
method and structure that filterBuilder
uses to
implement your filter.
- Design Method
Lists the design methods available for the frequency and magnitude
specifications you entered. When you change the specifications for
a filter, such as changing the impulse response, the methods available
to design filters changes as well. The default IIR design method is
usually Butterworth, and the default FIR method is equiripple.
Design Options
The options for each design are specific for each design method.
This section does not present all of the available options for all
designs and design methods. There are many more that you encounter
as you select different design methods and filter specifications.
The following options represent some of the most common ones available.
- Density factor
Density factor controls the density of the frequency grid over
which the design method optimization evaluates your filter response
function. The number of equally spaced points in the grid is the value
you enter for Density factor times (filter order
+ 1).
Increasing the value creates a filter that more closely approximates
an ideal equiripple filter but increases the time required to design
the filter. The default value of 16 represents a reasonable trade
between the accurate approximation to the ideal filter and the time
to design the filter.
- Minimum phase
To design a filter that is minimum phase, select Minimum
phase. Clearing the Minimum phase option
removes the phase constraint—the resulting design is not minimum
phase.
- Minimum order
When you select this parameter, the design method determines
and design the minimum order filter to meet your specifications. Some
filters do not provide this parameter. Select Any
, Even
,
or Odd
from the drop-down list to direct
the design to be any minimum order, or minimum even order, or minimum
odd order.
Note:
Generally, Minimum order designs are not
available for IIR filters. |
- Match exactly
Specifies that the resulting filter design matches either the
passband or stopband or both bands when you select passband
or stopband
or both
from
the drop-down list.
- Stopband Shape
Stopband shape lets you specify how the stopband changes with
increasing frequency. Choose one of the following options:
Flat
— Specifies
that the stopband is flat. The attenuation does not change as the
frequency increases.
Linear
— Specifies
that the stopband attenuation changes linearly as the frequency increases.
Change the slope of the stopband by setting Stopband decay.
1/f
— Specifies
that the stopband attenuation changes exponentially as the frequency
increases, where f
is the frequency. Set the power
(exponent) for the decay in Stopband decay.
- Stopband Decay
When you set Stopband shape, Stopband decay specifies the amount
of decay applied to the stopband. the following conditions apply to
Stopband decay based on the value of Stopband Shape:
When you set Stopband shape to Flat
, Stopband
decay has no affect on the stopband.
When you set Stopband shape to Linear
,
enter the slope of the stopband in units of dB/rad/s. filterBuilder
applies
that slope to the stopband.
When you set Stopband shape to 1/f
,
enter a value for the exponent n in the relation
(1/f)^{n} to
define the stopband decay. filterBuilder
applies
the (1/f)^{n} relation
to the stopband to result in an exponentially decreasing stopband
attenuation.
Filter implementation
- Structure
For the filter specifications and design method you select,
this parameter lists the filter structures available to implement
your filter. By default, FIR filters use direct-form structure, and
IIR filters use direct-form II filters with SOS.
- Use a System object to implement filter
This check box appears when you set Filter type to Single-rate
.
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, this check box is cleared.
This check box no longer appears when you set Filter
type to Interpolator
, Decimator
,
or Sample-rate converter
. The filter builder
always implements the filter as a System object.
Comb Filter Design —Main Pane
Filter specifications
Parameters in this group enable you to specify the type of comb
filter and the number of peaks or notches.
- Comb Type
Select Notch
or Peak
from
the drop-down list. Notch
creates a comb
filter that attenuates a set of harmonically related frequencies. Peak
creates
a comb filter that amplifies a set of harmonically related frequencies.
- Order mode
Select Order
or Number
of Peaks/Notches
from the drop-down menu.
Select Order
to enter the desired
filter order in the
dialog box. The comb
filter has notches or peaks at increments of 2/Order
in
normalized frequency units.
Select Number of Peaks
or Number
of Notches
to specify the number of peaks or notches
and the Shelving filter order
.
- Shelving filter order
The Shelving filter order
is a positive integer
that determines the sharpness of the peaks or notches. Larger values
result in sharper peaks or notches.
Frequency specifications
Parameters in this group enable you to specify the frequency
constraints and frequency units.
- Frequency specifications
Select Quality factor
or Bandwidth
.
Quality factor
is the ratio of the center
frequency of the peak or notch to the bandwidth calculated at the
–3 dB point.
Bandwidth
specifies the bandwidth of the
peak or notch. By default the bandwidth is measured at the –3
dB point. For example, setting the bandwidth equal to 0.1 results
in 3 dB frequencies at normalized frequencies 0.05 above and below
the center frequency of the peak or notch.
- Frequency Units
Specify the frequency units. The default is normalized frequency.
Choosing an option in Hz enables the Input Fs dialog
box.
Magnitude specifications
Specify the units for the magnitude specification and the gain
at which the bandwidth is measured. This menu is disabled if you specify
a filter order. Select one of the following magnitude units from the
drop down list:
Bandwidth gain — Specify the gain
at which the bandwidth is measured. The default is –3 dB.
Algorithm
The parameters in this group allow you to specify the design
method and structure that filterBuilder
uses to
implement your filter.
- Design Method
The IIR Butterworth design is the only option for peaking or
notching comb filters.
Filter implementation
- Structure
For the filter specifications and design method you select,
this parameter lists the filter structures available to implement
your filter.
- Use a System object to implement filter
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, the check box is cleared.
Differentiator Filter Design — Main Pane
Filter specifications
Parameters in this group enable you to specify your filter format,
such as the impulse response and the filter order. Graphically, the
filter specifications look similar to those shown in the following
figure.

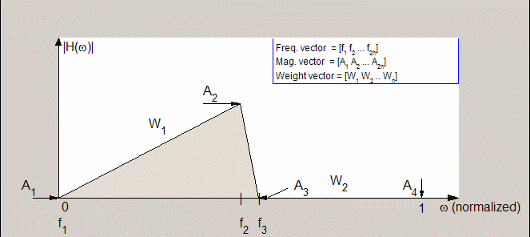

In the figure, regions between specification values such as Fpass (f_{1})
and Fstop (f_{3})
represent transition regions where the filter response is not explicitly
defined.
- Order mode
Select Minimum
(the default) or Specify
from
the drop-down list. Selecting Specify
enables
the Order option (see the following sections)
so you can enter the filter order.
- Filter type
Select Single-rate
, Decimator
, Interpolator
,
or Sample-rate converter
. Your choice determines
the type of filter as well as the design methods and structures that
are available to implement your filter. By default, filterBuilder
specifies
single-rate filters.
When you design either a decimator or an interpolator, the resulting
filter is a bandpass filter that either decimates or interpolates
your input signal.
- Order
Enter the filter order. This option is enabled only if Specify
was
selected for Order mode.
- Decimation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Decimator
or Sample-rate
converter
. The default factor value is 2.
- Interpolation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Interpolator
or Sample-rate
converter
. The default factor value is 2.
Frequency specifications
The parameters in this group allow you to specify your filter
response curve.
- Frequency constraints
This option is only available when you specify the order of
the filter design. Supported options are Unconstrained
and Passband
edge and stopband edge
.
- Frequency units
Use this parameter to specify whether your frequency settings
are normalized or in absolute frequency. Select Normalized
(0–1)
to enter frequencies in normalized form.
This behavior is the default. To enter frequencies in absolute values,
select one of the frequency units from the drop-down list—Hz
, kHz
, MHz
,
or GHz
. Selecting one of the unit options
enables the Input Fs parameter.
- Input Fs
Fs, specified in the units you selected for Frequency
units, defines the sampling frequency at the filter input.
When you provide an input sampling frequency, all frequencies in the
specifications are in the selected units as well. This parameter is
available when you select one of the frequency options from the Frequency
units list.
- Fpass
Enter the frequency at the end of the passband. Specify the
value in either normalized frequency units or the absolute units you
select Frequency units.
- Fstop
Enter the frequency at the start of the stopband. Specify the
value in either normalized frequency units or the absolute units you
select Frequency units.
Magnitude specifications
The parameters in this group let you specify the filter response
in the passbands and stopbands.
- Magnitude constraints
This option is only available when you specify the order of
your filter design. The options for Magnitude constraints depend
on the value of the Frequency constraints. If
the value of Frequency constraints is Unconstrained
, Magnitude
constraints must be Unconstrained
.
If the value of Frequency constraints is Passband
edge and stopband edge
, Magnitude constraints can
be Unconstrained
, Passband
ripple
, or Stopband attenuation
.
- Magnitude units
Specify the units for any parameter you provide in magnitude
specifications. Select one of the following options from the drop-down
list.
Linear
— Specify
the magnitude in linear units.
dB
— Specify the
magnitude in decibels (default).
Squared
— Specify
the magnitude in squared units.
- Apass
Enter the filter ripple allowed in the passband in the units
you choose for Magnitude units, either linear
or decibels.
- Astop2
Enter the filter attenuation in the second stopband in the units
you choose for Magnitude units, either linear
or decibels.
Algorithm
The parameters in this group allow you to specify the design
method and structure that filterBuilder
uses to
implement your filter.
- Design Method
Lists the design methods available for the frequency and magnitude
specifications you entered. When you change the specifications for
a filter, such as changing the impulse response, the methods available
to design filters changes as well. The default IIR design method is
usually Butterworth, and the default FIR method is equiripple.
- Scale SOS filter coefficients to reduce
chance of overflow
Selecting this parameter directs the design to scale the filter
coefficients to reduce the chances that the inputs or calculations
in the filter overflow and exceed the representable range of the filter.
Clearing this option removes the scaling. This parameter applies only
to IIR filters.
Design Options
The options for each design are specific for each design method.
This section does not present all of the available options for all
designs and design methods. There are many more that you encounter
as you select different design methods and filter specifications.
- Density factor
Density factor controls the density of the frequency grid over
which the design method optimization evaluates your filter response
function. The number of equally spaced points in the grid is the value
you enter for Density factor times (filter order
+ 1).
Increasing the value creates a filter that more closely approximates
an ideal equiripple filter but increases the time required to design
the filter. The default value of 16 represents a reasonable trade
between the accurate approximation to the ideal filter and the time
to design the filter.
- Wpass
Passband weight. This option is only available for a specified-order
design when Frequency constraints is equal to Passband
edge and stopband edge
and the Design method is Equiripple
.
- Wstop
Stopband weight. This option is only available for a specified-order
design when Frequency constraints is equal to Passband
edge and stopband edge
and the Design method is Equiripple
.
Filter implementation
- Structure
For the filter specifications and design method you select,
this parameter lists the filter structures available to implement
your filter. By default, FIR filters use direct-form structure, and
IIR filters use direct-form II filters with SOS.
- Use a System object to implement filter
This check box appears when you set Filter type to Single-rate
.
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, the check box is cleared.
This check box no longer appears when you set Filter
type to Interpolator
, Decimator
,
or Sample-rate converter
. The filter builder
always implements the filter as a System object.
Fractional Delay Design — Main Pane
Frequency specifications
Parameters in this group enable you to specify your filter format,
such as the fractional delay and the filter order.
- Order
If you choose Specify
for Order
mode, enter your filter order in this field, or select
the order from the drop-down list.filterBuilder
designs
a filter with the order you specify.
- Fractional delay
Specify a value between 0 and 1 samples for the filter fractional
delay. The default value is 0.5
samples.
- Frequency units
Use this parameter to specify whether your frequency settings
are normalized or in absolute frequency. Select Normalized
(0–1)
to enter frequencies in normalized form.
This behavior is the default. To enter frequencies in absolute values,
select one of the frequency units from the drop-down list—Hz
, kHz
, MHz
,
or GHz
. Selecting one of the unit options
enables the Input Fs parameter.
- Input Fs
Fs, specified in the units you selected for Frequency
units, defines the sampling frequency at the filter input.
When you provide an input sampling frequency, all frequencies in the
specifications are in the selected units as well. This parameter is
available when you select one of the frequency options from the Frequency
units list.
Halfband Filter Design — Main Pane
Filter specifications
Parameters in this group enable you to specify your filter type
and order.
- Impulse response
Select FIR
or IIR
from
the drop-down list, where FIR
is the default
impulse response. When you choose an impulse response, the design
methods and structures you can use to implement your filter change
accordingly.
Note:
The design methods and structures for FIR filters are not the
same as the methods and structures for IIR filters. |
- Order mode
Select Minimum
(the default) or Specify
from
the drop-down list. Selecting Specify
enables
the Order option (see the following sections)
so you can enter the filter order.
- Filter type
Select Single-rate
, Decimator
,
or Interpolator
. By default, filterBuilder
specifies
single-rate filters.
When you design either a decimator or an interpolator, the resulting
filter is a bandpass filter that decimates or interpolates your input
by a factor of two.
- Order
Enter the filter order. This option is enabled only if Specify
was
selected for Order mode.
Frequency specifications
The parameters in this group allow you to specify your filter
response curve. Graphically, the filter specifications for a halfband
lowpass filter look similar to those shown in the following figure.
In the figure, the transition region lies between the end of
the passband and the start of the stopband. The width is defined explicitly
by the value of Transition width.
- Frequency units
Use this parameter to specify whether your frequency settings
are normalized or in absolute frequency. Select Normalized
(0–1)
to enter frequencies in normalized form.
This behavior is the default. To enter frequencies in absolute values,
select one of the frequency units from the drop-down list—Hz
, kHz
, MHz
,
or GHz
. Selecting one of the unit options
enables the Input Fs parameter.
- Input Fs
Fs, specified in the units you selected for Frequency
units, defines the sampling frequency at the filter input.
When you provide an input sampling frequency, all frequencies in the
specifications are in the selected units as well. This parameter is
available when you select one of the frequency options from the Frequency
units list.
- Transition width
Specify the width of the transition between the end of the passband
and the edge of the stopband. Specify the value in normalized frequency
units or the absolute units you select in Frequency units.
Magnitude specifications
The parameters in this group let you specify the filter response
in the passbands and stopbands.
- Magnitude units
Specify the units for any parameter you provide in magnitude
specifications. Select one of the following options from the drop-down
list.
- Astop
Enter the filter attenuation in the stopband in the units you
choose for Magnitude units, either linear or
decibels.
Algorithm
The parameters in this group allow you to specify the design
method and structure that filterBuilder
uses to
implement your filter.
- Design Method
Lists the design methods available for the frequency and magnitude
specifications you entered. For FIR halfband filters, the available
design options are Equiripple
and Kaiser
window
. For IIR halfband filters, the available design
options are Butterworth
, Elliptic
,
and IIR quasi-linear phase
.
Design Options
The following design options are available for FIR halfband
filters when the user specifies an equiripple design:
- Minimum phase
To design a filter that is minimum phase, select Minimum
phase. Clearing the Minimum phase option
removes the phase constraint—the resulting design is not minimum
phase.
- Stopband Shape
Stopband shape lets you specify how the stopband changes with
increasing frequency. Choose one of the following options:
Flat
— Specifies
that the stopband is flat. The attenuation does not change as the
frequency increases.
Linear
— Specifies
that the stopband attenuation changes linearly as the frequency increases.
Change the slope of the stopband by setting Stopband decay.
1/f
— Specifies
that the stopband attenuation changes exponentially as the frequency
increases, where f
is the frequency. Set the power
(exponent) for the decay in Stopband decay.
- Stopband Decay
When you set Stopband shape, Stopband decay specifies the amount
of decay applied to the stopband. the following conditions apply to
Stopband decay based on the value of Stopband Shape:
When you set Stopband shape to Flat
, Stopband
decay has no affect on the stopband.
When you set Stopband shape to Linear
,
enter the slope of the stopband in units of dB/rad/s. filterBuilder
applies
that slope to the stopband.
When you set Stopband shape to 1/f
,
enter a value for the exponent n in the relation
(1/f)^{n} to
define the stopband decay. filterBuilder
applies
the (1/f)^{n} relation
to the stopband to result in an exponentially decreasing stopband
attenuation.
Filter implementation
- Structure
For the filter specifications and design method you select,
this parameter lists the filter structures available to implement
your filter.
- Use a System object to implement filter
This check box appears when you set Filter type to Single-rate
.
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, the check box is cleared.
This check box no longer appears when you set Filter
type to either Interpolator
or Decimator
.
The filter builder always implements the filter as a System object.
Highpass Filter Design — Main Pane
Filter specifications
Parameters in this group enable you to specify your filter format,
such as the impulse response and the filter order.
- Impulse response
Select FIR
or IIR
from
the drop-down list, where FIR
is the default
impulse response. When you choose an impulse response, the design
methods and structures you can use to implement your filter change
accordingly.
Note:
The design methods and structures for FIR filters are not the
same as the methods and structures for IIR filters. |
- Order mode
Select Minimum
(the default) or Specify
from
the drop-down list. Selecting Specify
enables
the Order option so you can enter the filter
order.
If your Impulse response is IIR
,
you can specify an equal order for the numerator and denominator,
or different numerator and denominator orders. The default is equal
orders. To specify a different denominator order, check the Denominator
order box.
- Filter type
This option is only available if you have the DSP System Toolbox software.
Select Single-rate
, Decimator
, Interpolator
,
or Sample-rate converter
. Your choice determines
the type of filter as well as the design methods and structures that
are available to implement your filter. By default, filterBuilder
specifies
single-rate filters.
When you design either a decimator or an interpolator, the resulting
filter is a highpass filter that either decimates or interpolates
your input signal.
- Order
Enter the filter order. This option is enabled only if Specify
was
selected for Order mode.
- Decimation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Decimator
or Sample-rate
converter
. The default factor value is 2.
- Interpolation Factor
Enter the interpolation factor. This option is enabled only
if the Filter type is set to Interpolator
or Sample-rate
converter
. The default factor value is 2.
Frequency specifications
The parameters in this group allow you to specify your filter
response curve. Graphically, the filter specifications look similar
to those shown in the following figure.
In the figure, the region between specification values Fstop
and Fpass represents the transition region where the filter response
is not explicitly defined.
- Frequency constraints
Select the filter features to use to define the frequency response
characteristics. The list contains the following options, when available
for the filter specifications.
Stopband edge and passband edge
—
Define the filter by specifying the frequencies for the edges for
the stopband and passband.
Passband edge
—
Define the filter by specifying the frequency for the edge of the
passband.
Stopband edge
—
Define the filter by specifying the frequency for the edges of the
stopband.
Stopband edge and 3dB point
—
Define the filter by specifying the stopband edge frequency and the
3-dB down point (IIR designs).
3dB point and passband edge
—
Define the filter by specifying the 3-dB down point and passband edge
frequency (IIR designs).
3dB point
— Define
the filter by specifying the frequency for the 3-dB point (IIR designs
or maxflat FIR).
6dB point
— Define
the filter by specifying the frequency for the 6-dB point in the filter
response (FIR designs).
- Frequency units
Use this parameter to specify whether your frequency settings
are normalized or in absolute frequency. Select Normalized
(0–1)
to enter frequencies in normalized form.
This behavior is the default. To enter frequencies in absolute values,
select one of the frequency units from the drop-down list—Hz
, kHz
, MHz
,
or GHz
. Selecting one of the unit options
enables the Input Fs parameter.
- Input Fs
Fs, specified in the units you selected for Frequency
units, defines the sampling frequency at the filter input.
When you provide an input sampling frequency, all frequencies in the
specifications are in the selected units as well. This parameter is
available when you select one of the frequency options from the Frequency
units list.
- Fpass
Enter the frequency at the of the passband. Specify the value
in either normalized frequency units or the absolute units you select Frequency
units.
- Fstop
Enter the frequency at the start of the stopband. Specify the
value in either normalized frequency units or the absolute units you
select Frequency units.
Magnitude specifications
The parameters in this group let you specify the filter response
in the passbands and stopbands.
- Magnitude units
Specify the units for any parameter you provide in magnitude
specifications. Select one of the following options from the drop-down
list.
Linear
— Specify
the magnitude in linear units.
dB
— Specify the
magnitude in decibels (default).
Squared
— Specify
the magnitude in squared units.
- Astop
Enter the filter attenuation in the stopband in the units you
choose for Magnitude units, either linear or
decibels.
- Apass
Enter the filter ripple allowed in the passband in the units
you choose for Magnitude units, either linear
or decibels.
Algorithm
The parameters in this group allow you to specify the design
method and structure that filterBuilder
uses to
implement your filter.
- Design Method
Lists the design methods available for the frequency and magnitude
specifications you entered. When you change the specifications for
a filter, such as changing the impulse response, the methods available
to design filters changes as well. The default IIR design method is
usually Butterworth, and the default FIR method is equiripple.
- Scale SOS filter coefficients to reduce
chance of overflow
Selecting this parameter directs the design to scale the filter
coefficients to reduce the chances that the inputs or calculations
in the filter overflow and exceed the representable range of the filter.
Clearing this option removes the scaling. This parameter applies only
to IIR filters.
Design Options
The options for each design are specific for each design method.
This section does not present all of the available options for all
designs and design methods. There are many more that you encounter
as you select different design methods and filter specifications.
The following options represent some of the most common ones available.
- Density factor
Density factor controls the density of the frequency grid over
which the design method optimization evaluates your filter response
function. The number of equally spaced points in the grid is the value
you enter for Density factor times (filter order
+ 1).
Increasing the value creates a filter that more closely approximates
an ideal equiripple filter but increases the time required to design
the filter. The default value of 16 represents a reasonable trade
between the accurate approximation to the ideal filter and the time
to design the filter.
- Phase constraint
This option only applies when you have the DSP System Toolbox software
and when the Design method is equiripple
.
Select one of Linear
, Minimum
,
or Maximum
.
- Minimum order — This
option only applies when you have the DSP System Toolbox software
and the Order mode is
Minimum
. Select Any
(default), Even
,
or Odd
. Selecting Even
or Odd
forces
the minimum-order design to be an even or odd order.
- Match Exactly
Specifies that the resulting filter design matches either the
passband or stopband when you select Passband
or Stopband
.
- Stopband Shape
Stopband shape lets you specify how the stopband changes with
increasing frequency. Choose one of the following options:
Flat
— Specifies
that the stopband is flat. The attenuation does not change as the
frequency increases.
Linear
— Specifies
that the stopband attenuation changes linearly as the frequency increases.
Change the slope of the stopband by setting Stopband decay.
1/f
— Specifies
that the stopband attenuation changes exponentially as the frequency
increases, where f
is the frequency. Set the power
(exponent) for the decay in Stopband decay.
- Stopband Decay
When you set Stopband shape, Stopband decay specifies the amount
of decay applied to the stopband. the following conditions apply to
Stopband decay based on the value of Stopband Shape:
When you set Stopband shape to Flat
, Stopband
decay has no affect on the stopband.
When you set Stopband shape to Linear
,
enter the slope of the stopband in units of dB/rad/s. filterBuilder
applies
that slope to the stopband.
When you set Stopband shape to 1/f
,
enter a value for the exponent n in the relation
(1/f)^{n} to
define the stopband decay. filterBuilder
applies
the (1/f)^{n} relation
to the stopband to result in an exponentially decreasing stopband
attenuation.
- Wpass
Passband weight. This option only applies when Impulse
response is FIR
and Order
mode is Specify
.
- Wstop
Stopband weight. This option only applies when Impulse
response is FIR
and Order
mode is Specify
.
Filter implementation
- Structure
For the filter specifications and design method you select,
this parameter lists the filter structures available to implement
your filter. By default, FIR filters use direct-form structure, and
IIR filters use direct-form II filters with SOS.
- Use a System object to implement filter
This check box appears when you set Filter type to Single-rate
.
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, the check box is cleared.
This check box no longer appears when you set Filter
type to Interpolator
, Decimator
,
or Sample-rate converter
. The filter builder
always implements the filter as a System object.
Hilbert Filter Design — Main Pane
Filter specifications
Parameters in this group enable you to specify your filter format,
such as the impulse response and the filter order.
- Impulse response
Select FIR
or IIR
from
the drop-down list, where FIR
is the default
impulse response. When you choose an impulse response, the design
methods and structures you can use to implement your filter change
accordingly.
Note:
The design methods and structures for FIR filters are not the
same as the methods and structures for IIR filters. |
- Order mode
This option is only available if you have the DSP System Toolbox software.
Select either Minimum
(the default) or Specify
from
the drop-down list. Selecting Specify
enables
the Order option (see the following sections)
so you can enter the filter order.
- Filter type
This option is only available if you have the DSP System Toolbox software.
Select Single-rate
, Decimator
, Interpolator
,
or Sample-rate converter
. Your choice determines
the type of filter as well as the design methods and structures that
are available to implement your filter. By default, filterBuilder
specifies
single-rate filters.
When you design either a decimator or an interpolator, the resulting
filter is a bandpass filter that either decimates or interpolates
your input signal.
- Order
Enter the filter order. This option is enabled only if Specify
was
selected for Order mode.
- Decimation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Decimator
or Sample-rate
converter
. The default factor value is 2.
- Interpolation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Interpolator
or Sample-rate
converter
. The default factor value is 2.
Frequency specifications
The parameters in this group allow you to specify your filter
response curve. Graphically, the filter specifications look similar
to those shown in the following figure.
In the figure, the regions between 0 and f_{1} and
between f_{2} and 1 represent
the transition regions where the filter response is explicitly defined
by the transition width.
- Frequency units
Use this parameter to specify whether your frequency settings
are normalized or in absolute frequency. Select Normalized
(0–1)
to enter frequencies in normalized form.
This behavior is the default. To enter frequencies in absolute values,
select one of the frequency units from the drop-down list—Hz
, kHz
, MHz
,
or GHz
. Selecting one of the unit options
enables the Input Fs parameter.
- Input Fs
Fs, specified in the units you selected for Frequency
units, defines the sampling frequency at the filter input.
When you provide an input sampling frequency, all frequencies in the
specifications are in the selected units as well. This parameter is
available when you select one of the frequency options from the Frequency
units list.
- Transition width
Specify the width of the transitions at the ends of the passband.
Specify the value in normalized frequency units or the absolute units
you select in Frequency units.
Magnitude specifications
The parameters in this group let you specify the filter response
in the passbands and stopbands.
- Magnitude units
Specify the units for any parameter you provide in magnitude
specifications. Select one of the following options from the drop-down
list.
Linear
— Specify
the magnitude in linear units.
dB
— Specify the
magnitude in decibels (default)
Squared
— Specify
the magnitude in squared units.
- Apass
Enter the filter ripple allowed in the passband in the units
you choose for Magnitude units, either linear
or decibels.
Algorithm
The parameters in this group allow you to specify the design
method and structure that filterBuilder
uses to
implement your filter.
- Design Method
Lists the design methods available for the frequency and magnitude
specifications you entered. When you change the specifications for
a filter, such as changing the impulse response, the methods available
to design filters changes as well. The default IIR design method is
usually Butterworth, and the default FIR method is equiripple.
- Scale SOS filter coefficients to reduce
chance of overflow
Selecting this parameter directs the design to scale the filter
coefficients to reduce the chances that the inputs or calculations
in the filter overflow and exceed the representable range of the filter.
Clearing this option removes the scaling. This parameter applies only
to IIR filters.
Design Options
The options for each design are specific for each design method.
This section does not present all of the available options for all
designs and design methods. There are many more that you encounter
as you select different design methods and filter specifications.
The following options represent some of the most common ones available.
- Density factor
Density factor controls the density of the frequency grid over
which the design method optimization evaluates your filter response
function. The number of equally spaced points in the grid is the value
you enter for Density factor times (filter order
+ 1).
Increasing the value creates a filter that more closely approximates
an ideal equiripple filter but increases the time required to design
the filter. The default value of 16 represents a reasonable trade
between the accurate approximation to the ideal filter and the time
to design the filter.
- FIR Type
This option is only available in a minimum-order design. Specify
whether to design a type 3 or a type 4 FIR filter. The filter type
is defined as follows:
Select 3
or 4
from
the drop-down list.
Filter implementation
- Structure
For the filter specifications and design method you select,
this parameter lists the filter structures available to implement
your filter. By default, FIR filters use direct-form structure, and
IIR filters use direct-form II filters with SOS.
- Use a System object to implement filter
This check box appears when you set Filter type to Single-rate
.
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, the check box is cleared.
This check box no longer appears when you set Filter
type to Interpolator
, Decimator
,
or Sample-rate converter
. The filter builder
always implements the filter as a System object.
Inverse Sinc Filter Design — Main Pane
Filter specifications
Parameters in this group enable you to specify your filter format,
such as the impulse response and the filter order.
- Order mode
Select Minimum
(the default) or Specify
from
the drop-down list. Selecting Specify
enables
the Order option (see the following sections)
so you can enter the filter order.
- Response type
Select Lowpass
or Highpass
to
design an inverse sinc lowpass or highpass filter.
- Filter type
Select Single-rate
, Decimator
, Interpolator
,
or Sample-rate converter
. Your choice determines
the type of filter as well as the design methods and structures that
are available to implement your filter. By default, filterBuilder
specifies
single-rate filters.
When you design either a decimator or an interpolator, the resulting
filter is a bandpass filter that either decimates or interpolates
your input signal.
- Order
Enter the filter order. This option is enabled only if Specify
was
selected for Order mode.
- Decimation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Decimator
or Sample-rate
converter
. The default factor value is 2.
- Interpolation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Interpolator
or Sample-rate
converter
. The default factor value is 2.
Frequency specifications
The parameters in this group allow you to specify your filter
response curve. Graphically, the filter specifications look similar
to those shown in the following figure.
Regions between specification values such as Fpass and Fstop
represent transition regions where the filter response is not explicitly
defined.
- Frequency constraints
This option is only available when you specify the filter order.
The following options are available:
Passband and stopband edges
—
Define the filter by specifying the frequencies for the edges for
the stop- and passbands.
Passband edge
— Define the
filter by specifying frequencies for the edges of the passband.
Stopband edge
— Define the
filter by specifying frequencies for the edges of the stopbands.
6dB point
— The 6-dB point
is the frequency for the point 6 dB point below the passband value.
- Frequency units
Use this parameter to specify whether your frequency settings
are normalized or in absolute frequency. Select Normalized
(0–1)
to enter frequencies in normalized form.
This behavior is the default. To enter frequencies in absolute values,
select one of the frequency units from the drop-down list—Hz
, kHz
, MHz
,
or GHz
. Selecting one of the unit options
enables the Input Fs parameter.
- Input Fs
Fs, specified in the units you selected for Frequency
units, defines the sampling frequency at the filter input.
When you provide an input sampling frequency, all frequencies in the
specifications are in the selected units as well. This parameter is
available when you select one of the frequency options from the Frequency
units list.
- Fpass
Enter the frequency at the end of the passband. Specify the
value in either normalized frequency units or the absolute units you
select Frequency units.
- Fstop
Enter the frequency at the start of the stopband. Specify the
value in either normalized frequency units or the absolute units you
select Frequency units.
Magnitude specifications
The parameters in this group let you specify the filter response
in the passbands and stopbands.
- Magnitude units
Specify the units for any parameter you provide in magnitude
specifications. Select one of the following options from the drop-down
list.
Linear
— Specify
the magnitude in linear units.
dB
— Specify the
magnitude in decibels (default)
Squared
— Specify
the magnitude in squared units.
- Apass
Enter the filter ripple allowed in the passband in the units
you choose for Magnitude units, either linear
or decibels.
- Astop
Enter the filter attenuation in the stopband in the units you
choose for Magnitude units, either linear or
decibels.
Algorithm
The parameters in this group allow you to specify the design
method and structure that filterBuilder
uses to
implement your filter.
- Design Method
Lists the design methods available for the frequency and magnitude
specifications you entered. When you change the specifications for
a filter, such as changing the impulse response, the methods available
to design filters changes as well. The default IIR design method is
usually Butterworth, and the default FIR method is equiripple.
Design Options
The options for each design are specific for each design method.
This section does not present all of the available options for all
designs and design methods. There are many more that you encounter
as you select different design methods and filter specifications.
The following options represent some of the most common ones available.
- Density factor
Density factor controls the density of the frequency grid over
which the design method optimization evaluates your filter response
function. The number of equally spaced points in the grid is the value
you enter for Density factor times (filter order
+ 1).
Increasing the value creates a filter that more closely approximates
an ideal equiripple filter but increases the time required to design
the filter. The default value of 16 represents a reasonable trade
between the accurate approximation to the ideal filter and the time
to design the filter.
- Phase constraint
Available options are Linear
, Minimum
,
and Maximum
.
- Stopband Shape
Stopband shape lets you specify how the stopband changes with
increasing frequency. Choose one of the following options;
Flat
— Specifies
that the stopband is flat. The attenuation does not change as the
frequency increases.
Linear
— Specifies
that the stopband attenuation changes linearly as the frequency increases.
Change the slope of the stopband by setting Stopband decay.
1/f
— Specifies
that the stopband attenuation changes exponentially as the frequency
increases, where f
is the frequency. Set the power
(exponent) for the decay in Stopband decay.
- Stopband Decay
When you set Stopband shape, Stopband decay specifies the amount
of decay applied to the stopband. the following conditions apply to
Stopband decay based on the value of Stopband Shape:
When you set Stopband shape to Flat
, Stopband
decay has no affect on the stopband.
When you set Stopband shape to Linear
,
enter the slope of the stopband in units of dB/rad/s. filterBuilder
applies
that slope to the stopband.
When you set Stopband shape to 1/f
,
enter a value for the exponent n in the relation
(1/f)^{n} to
define the stopband decay. filterBuilder
applies
the (1/f)^{n} relation
to the stopband to result in an exponentially decreasing stopband
attenuation.
- Sinc frequency factor
A frequency dilation factor. The sinc frequency factor, C ,
parameterizes the passband magnitude response for a lowpass design
through H(ω)
= sinc(Cω)^(–P) and
for a highpass design through H(ω)
= sinc(C(1–ω))^(–P).
- Sinc power
Negative power of passband magnitude response. The sinc power, P,
parameterizes the passband magnitude response for a lowpass design
through H(ω)
= sinc(Cω)^(–P) and
for a highpass design through H(ω)
= sinc(C(1–ω))^(–P).
Filter implementation
- Structure
For the filter specifications and design method you select,
this parameter lists the filter structures available to implement
your filter. By default, FIR filters use direct-form structure.
- Use a System object to implement filter
This check box appears when you set Filter type to Single-rate
.
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, the check box is cleared.
This check box no longer appears when you set Filter
type to Interpolator
, Decimator
,
or Sample-rate converter
. The filter builder
always implements the filter as a System object.
Lowpass Filter Design — Main Pane
Filter specifications
Parameters in this group enable you to specify your filter format,
such as the impulse response and the filter order.
- Impulse response
Select FIR
or IIR
from
the drop-down list, where FIR
is the default
impulse response. When you choose an impulse response, the design
methods and structures you can use to implement your filter change
accordingly.
Note:
The design methods and structures for FIR filters are not the
same as the methods and structures for IIR filters. |
- Order mode
Select Minimum
(the default) or Specify
from
the drop-down list. Selecting Specify
enables
the Order option (see the following sections)
so you can enter the filter order.
If your Impulse response is IIR
,
you can specify an equal order for the numerator and denominator,
or different numerator and denominator orders. The default is equal
orders. To specify a different denominator order, check the Denominator
order box.
- Filter type
This option is only available if you have the DSP System Toolbox.
Select Single-rate
, Decimator
, Interpolator
,
or Sample-rate converter
. Your choice determines
the type of filter as well as the design methods and structures that
are available to implement your filter. By default, filterBuilder
specifies
single-rate filters.
When you design either a decimator or an interpolator, the resulting
filter is a bandpass filter that either decimates or interpolates
your input signal.
- Order
Enter the filter order. This option is enabled only if Specify
was
selected for Order mode.
- Decimation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Decimator
or Sample-rate
converter
. The default factor value is 2.
- Interpolation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Interpolator
or Sample-rate
converter
. The default factor value is 2.
Frequency specifications
The parameters in this group allow you to specify your filter
response curve. Graphically, the filter specifications look similar
to the one shown in the following figure.
In the figure, regions between specification values such as
F_{pass} and F_{stop} represent
transition regions where the filter response is not explicitly defined.
- Frequency constraints
Select the filter features to use to define the frequency response
characteristics. The list contains the following options, when available
for the filter specifications.
Passband and stopband edge
—
Define the filter by specifying the frequencies for the edge of the
stopband and passband.
Passband edge
—
Define the filter by specifying the frequency for the edge of the
passband.
Stopband edge
—
Define the filter by specifying the frequency for the edges of the
stopband.
Passband edge and 3dB point
—
Define the filter by specifying the passband edge frequency and the
3-dB down point (IIR designs).
3dB point and stopband edge
—
Define the filter by specifying the 3-dB down point and stopband edge
frequency (IIR designs).
3dB point
— Define
the filter by specifying the frequency for the 3-dB point (IIR designs
or maxflat FIR).
6dB point
— Define
the filter by specifying the frequency for the 6-dB point in the filter
response (FIR designs).
- Frequency units
Use this parameter to specify whether your frequency settings
are normalized or in absolute frequency. Select Normalized
(0–1)
to enter frequencies in normalized form.
This behavior is the default. To enter frequencies in absolute values,
select one of the frequency units from the drop-down list—Hz
, kHz
, MHz
,
or GHz
. Selecting one of the unit options
enables the Input Fs parameter.
- Input Fs
Fs, specified in the units you selected for Frequency
units, defines the sampling frequency at the filter input.
When you provide an input sampling frequency, all frequencies in the
specifications are in the selected units as well. This parameter is
available when you select one of the frequency options from the Frequency
units list.
- Fpass
Enter the frequency at the of the passband. Specify the value
in either normalized frequency units or the absolute units you select Frequency
units.
- Fstop
Enter the frequency at the start of the stopband. Specify the
value in either normalized frequency units or the absolute units you
select Frequency units.
Magnitude specifications
The parameters in this group let you specify the filter response
in the passbands and stopbands.
- Magnitude units
Specify the units for any parameter you provide in magnitude
specifications. Select one of the following options from the drop-down
list.
Linear
— Specify
the magnitude in linear units.
dB
— Specify the
magnitude in decibels (default)
Squared
— Specify
the magnitude in squared units.
- Apass
Enter the filter ripple allowed in the passband in the units
you choose for Magnitude units, either linear
or decibels.
- Astop
Enter the filter attenuation in the stopband in the units you
choose for Magnitude units, either linear or
decibels.
Algorithm
The parameters in this group allow you to specify the design
method and structure that filterBuilder
uses to
implement your filter.
- Design Method
Lists the design methods available for the frequency and magnitude
specifications you entered. When you change the specifications for
a filter, such as changing the impulse response, the methods available
to design filters changes as well. The default IIR design method is
usually Butterworth, and the default FIR method is equiripple.
- Scale SOS filter coefficients to reduce
chance of overflow
Selecting this parameter directs the design to scale the filter
coefficients to reduce the chances that the inputs or calculations
in the filter overflow and exceed the representable range of the filter.
Clearing this option removes the scaling. This parameter applies only
to IIR filters.
Design Options
The options for each design are specific for each design method.
This section does not present all of the available options for all
designs and design methods. There are many more that you encounter
as you select different design methods and filter specifications.
The following options represent some of the most common ones available.
- Density factor
Density factor controls the density of the frequency grid over
which the design method optimization evaluates your filter response
function. The number of equally spaced points in the grid is the value
you enter for Density factor times (filter order
+ 1).
Increasing the value creates a filter that more closely approximates
an ideal equiripple filter but increases the time required to design
the filter. The default value of 16 represents a reasonable trade
between the accurate approximation to the ideal filter and the time
to design the filter.
- Phase constraint
This option only applies when you have the DSP System Toolbox software
and when the Design method is equiripple
.
Select one of Linear
, Minimum
,
or Maximum
.
- Minimum order — This
option only applies when you have the DSP System Toolbox software
and the Order mode is
Minimum
. Select Any
(default), Even
,
or Odd
. Selecting Even
or Odd
forces
the minimum-order design to be an even or odd order.
- Match Exactly
Specifies that the resulting filter design matches either the
passband or stopband when you select Passband
or Stopband
.
- Stopband Shape
Stopband shape lets you specify how the stopband changes with
increasing frequency. Choose one of the following options:
Flat
— Specifies
that the stopband is flat. The attenuation does not change as the
frequency increases.
Linear
— Specifies
that the stopband attenuation changes linearly as the frequency increases.
Change the slope of the stopband by setting Stopband decay.
1/f
— Specifies
that the stopband attenuation changes exponentially as the frequency
increases, where f
is the frequency. Set the power
(exponent) for the decay in Stopband decay.
- Stopband Decay
When you set Stopband shape, Stopband decay specifies the amount
of decay applied to the stopband. the following conditions apply to
Stopband decay based on the value of Stopband Shape:
When you set Stopband shape to Flat
, Stopband
decay has no affect on the stopband.
When you set Stopband shape to Linear
,
enter the slope of the stopband in units of dB/rad/s. filterBuilder
applies
that slope to the stopband.
When you set Stopband shape to 1/f
,
enter a value for the exponent n in the relation
(1/f)^{n} to
define the stopband decay. filterBuilder
applies
the (1/f)^{n} relation
to the stopband to result in an exponentially decreasing stopband
attenuation.
- Wpass
Passband weight. This option only applies when Impulse
response is FIR
and Order
mode is Specify
.
- Wstop
Stopband weight. This option only applies when Impulse
response is FIR
and Order
mode is Specify
.
Filter implementation
- Structure
For the filter specifications and design method you select,
this parameter lists the filter structures available to implement
your filter. By default, FIR filters use direct-form structure, and
IIR filters use direct-form II filters with SOS.
- Use a System object to implement filter
This check box appears when you set Filter type to Single-rate
.
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, the check box is cleared.
This check box no longer appears when you set Filter
type to Interpolator
, Decimator
,
or Sample-rate converter
. The filter builder
always implements the filter as a System object.
Notch
See Peak/Notch Filter Design — Main Pane.
Nyquist Filter Design — Main Pane
Filter specifications
Parameters in this group enable you to specify your filter format,
such as the impulse response and the filter order.
- Band
Specifies the location of the center of the transition region
between the passband and the stopband. The center of the transition
region, bw, is calculated using the value for Band:
bw = Fs/(2 × Band).
- Impulse response
Select FIR
or IIR
from
the drop-down list, where FIR
is the default
impulse response. When you choose an impulse response, the design
methods and structures you can use to implement your filter change
accordingly.
Note:
The design methods and structures for FIR filters are not the
same as the methods and structures for IIR filters. |
- Order mode
Select Minimum
(the default) or Specify
from
the drop-down list. Selecting Specify
enables
the Order option (see the following sections)
so you can enter the filter order.
- Filter type
Select Single-rate
, Decimator
, Interpolator
,
or Sample-rate converter
. Your choice determines
the type of filter as well as the design methods and structures that
are available to implement your filter. By default, filterBuilder
specifies
single-rate filters.
When you design either a decimator or an interpolator, the resulting
filter is a bandpass filter that either decimates or interpolates
your input signal.
- Order
Enter the filter order. This option is enabled only if Specify
was
selected for Order mode.
- Decimation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Decimator
or Sample-rate
converter
. The default factor value is 2.
- Interpolation Factor
Enter the decimation factor. This option is enabled only if
the Filter type is set to Interpolator
or Sample-rate
converter
. The default factor value is 2.
Frequency specifications
The parameters in this group allow you to specify your filter
response curve. Graphically, the filter specifications look similar
to those shown in the following figure.

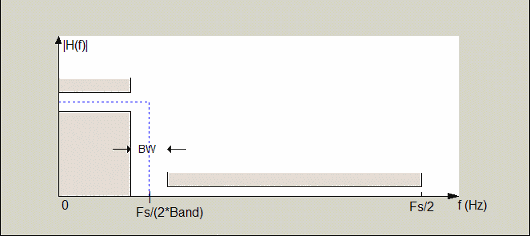

In the figure, BW is the width of the transition region and Band determines
the location of the center of the region.
- Frequency constraints
Select the filter features to use to define the frequency response
characteristics. The list contains the following options, when available
for the filter specifications.
Passband and stopband edges
—
Define the filter by specifying the frequencies for the edges for
the stopbands and passbands.
Passband edges
— Define
the filter by specifying frequencies for the edges of the passband.
Stopband edges
— Define
the filter by specifying frequencies for the edges of the stopbands.
3 dB points
— Define the
filter response by specifying the locations of the 3 dB points. The
3 dB point is the frequency for the point 3 dB point below the passband
value.
3 dB points and passband width
—
Define the filter by specifying frequencies for the 3 dB points in
the filter response and the width of the passband.
3 dB points and stopband widths
—
Define the filter by specifying frequencies for the 3 dB points in
the filter response and the width of the stopband.
- Frequency units
Use this parameter to specify whether your frequency settings
are normalized or in absolute frequency. Select Normalized
(0–1)
to enter frequencies in normalized form.
This behavior is the default. To enter frequencies in absolute values,
select one of the frequency units from the drop-down list—Hz
, kHz
, MHz
,
or GHz
. Selecting one of the unit options
enables the Input Fs parameter.
- Input Fs
Fs, specified in the units you selected for Frequency
units, defines the sampling frequency at the filter input.
When you provide an input sampling frequency, all frequencies in the
specifications are in the selected units as well. This parameter is
available when you select one of the frequency options from the Frequency
units list.
- Transition width
Specify the width of the transition between the end of the passband
and the edge of the stopband. Specify the value in normalized frequency
units or the absolute units you select in Frequency units.
Magnitude specifications
The parameters in this group let you specify the filter response
in the passbands and stopbands.
- Magnitude units
Specify the units for any parameter you provide in magnitude
specifications. Select one of the following options from the drop-down
list.
Linear
— Specify
the magnitude in linear units.
dB
— Specify the
magnitude in decibels (default)
Squared
— Specify
the magnitude in squared units.
- Astop
Enter the filter attenuation in the stopband in the units you
choose for Magnitude units, either linear or
decibels.
Algorithm
The parameters in this group allow you to specify the design
method and structure that filterBuilder
uses to
implement your filter.
- Design Method
Lists the design methods available for the frequency and magnitude
specifications you entered. When you change the specifications for
a filter, such as changing the impulse response, the methods available
to design filters changes as well. The default IIR design method is
usually Butterworth, and the default FIR method is equiripple.
- Scale SOS filter coefficients to reduce
chance of overflow
Selecting this parameter directs the design to scale the filter
coefficients to reduce the chances that the inputs or calculations
in the filter overflow and exceed the representable range of the filter.
Clearing this option removes the scaling. This parameter applies only
to IIR filters.
Design Options
The options for each design are specific for each design method.
This section does not present all of the available options for all
designs and design methods. There are many more that you encounter
as you select different design methods and filter specifications.
The following options represent some of the most common ones available.
- Density factor
Density factor controls the density of the frequency grid over
which the design method optimization evaluates your filter response
function. The number of equally spaced points in the grid is the value
you enter for Density factor times (filter order
+ 1).
Increasing the value creates a filter that more closely approximates
an ideal equiripple filter but increases the time required to design
the filter. The default value of 16 represents a reasonable trade
between the accurate approximation to the ideal filter and the time
to design the filter.
- Minimum phase
To design a filter that is minimum phase, select Minimum
phase. Clearing the Minimum phase option
removes the phase constraint—the resulting design is not minimum
phase.
- Minimum order
When you select this parameter, the design method determines
and designs the minimum order filter to meet your specifications.
Some filters do not provide this parameter. Select Any
, Even
,
or Odd
from the drop-down list to direct
the design to be any minimum order, or minimum even order, or minimum
odd order.
Note:
Generally, Minimum order designs are not
available for IIR filters. |
- Match Exactly
Specifies that the resulting filter design matches either the
passband or stopband or both bands when you select passband
or stopband
or both
from
the drop-down list.
- Stopband Shape
Stopband shape lets you specify how the stopband changes with
increasing frequency. Choose one of the following options:
Flat
— Specifies
that the stopband is flat. The attenuation does not change as the
frequency increases.
Linear
— Specifies
that the stopband attenuation changes linearly as the frequency increases.
Change the slope of the stopband by setting Stopband decay.
1/f
— Specifies
that the stopband attenuation changes exponentially as the frequency
increases, where f
is the frequency. Set the power
(exponent) for the decay in Stopband decay.
- Stopband Decay
When you set Stopband shape, Stopband decay specifies the amount
of decay applied to the stopband. the following conditions apply to
Stopband decay based on the value of Stopband Shape:
When you set Stopband shape to Flat
, Stopband
decay has no affect on the stopband.
When you set Stopband shape to Linear
,
enter the slope of the stopband in units of dB/rad/s. filterBuilder
applies
that slope to the stopband.
When you set Stopband shape to 1/f
,
enter a value for the exponent n in the relation
(1/f)^{n} to
define the stopband decay. filterBuilder
applies
the (1/f)^{n} relation
to the stopband to result in an exponentially decreasing stopband
attenuation.
Filter implementation
- Structure
For the filter specifications and design method you select,
this parameter lists the filter structures available to implement
your filter. By default, FIR filters use direct-form structure, and
IIR filters use direct-form II filters with SOS.
- Use a System object to implement filter
This check box appears when you set Filter type to Single-rate
.
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, the check box is cleared.
This check box no longer appears when you set Filter
type to Interpolator
, Decimator
,
or Sample-rate converter
. The filter builder
always implements the filter as a System object.
Octave Filter Design — Main Pane
Filter specifications
- Order
Specify filter order. Possible values are: 4, 6, 8,
10
.
- Bands per octave
Specify the number of bands per octave. Possible values are: 1,
3, 6, 12, 24
.
- Frequency units
Specify frequency units as Hz
or kHz
.
- Input Fs
Specify the input sampling frequency in the frequency units
specified previously.
- Center Frequency
Select from the drop-down list of available center frequency
values.
Algorithm
- Design Method
Butterworth is the design method used for this type of filter.
- Scale SOS filter coefficients to reduce
chance of overflow
Select the check box to scale the filter coefficients.
Filter implementation
- Structure
Specify filter structure. Choose from:
- Use a System object to implement filter
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, the check box is cleared. When the
current design method or structure is not supported by a system object
filter, then this check box is disabled.
Parametric Equalizer Filter Design — Main Pane
Filter specifications
- Order mode
Select Minimum
to design a minimum
order filter that meets the design specifications, or Specify
to
enter a specific filter order. The order mode also affects the possible
frequency constraints, which in turn limit the gain specifications.
For example, if you specify a Minimum
order
filter, the available frequency constraints are:
Center frequency, bandwidth, passband
width
Center frequency, bandwidth, stopband
width
If you select Specify
, the available
frequency constraints are:
Center frequency, bandwidth
Center frequency, quality factor
Shelf type, cutoff frequency, quality
factor
Shelf type, cutoff frequency, shelf slope
parameter
Low frequency, high frequency
- Order
This parameter is enabled only if the Order mode is
set to Specify
. Enter the filter order
in this text box.
Frequency specifications
Depending on the filter order, the possible frequency constraints
change. Once you choose the frequency constraints, the input boxes
in this area change to reflect the selection.
- Frequency constraints
Select the specification to represent the frequency constraints.
The following options are available:
Center frequency, bandwidth, passband
width
(available for minimum order only)
Center frequency, bandwidth, stopband
width
(available for minimum order only)
Center frequency, bandwidth
(available
for a specified order only)
Center frequency, quality factor
(available
for a specified order only)
Shelf type, cutoff frequency, quality
factor
(available for a specified order only)
Shelf type, cutoff frequency, shelf slope
parameter
(available for a specified order only)
Low frequency, high frequency
(available
for a specified order only)
- Frequency units
Select the frequency units from the available drop down list
(Normalized, Hz, kHz, MHz, GHz
). If Normalized
is
selected, then the Input Fs box is disabled for
input.
- Input Fs
Enter the input sampling frequency. This input box is disabled
for input if Normalized
is selected in
the Frequency units input box.
- Center frequency
Enter the center frequency in the units specified by the value
in Frequency units.
- Bandwidth
The bandwidth determines the frequency points at which the filter
magnitude is attenuated by the value specified as the Bandwidth
gain in the Gain specifications section.
By default, the Bandwidth gain defaults to db(sqrt(.5))
,
or –3 dB relative to the center frequency. The Bandwidth property
only applies when the Frequency constraints are: Center
frequency, bandwidth, passband width
, Center
frequency, bandwidth, stopband width
, or Center
frequency, bandwidth
.
- Passband width
The passband width determines the frequency points at which
the filter magnitude is attenuated by the value specified as the Passband
gain in the Gain specifications section.
This option is enabled only if the filter is of minimum order, and
the frequency constraint selected is Center frequency,
bandwidth, passband width
.
- Stopband width
The stopband width determines the frequency points at which
the filter magnitude is attenuated by the value specified as the Stopband
gain in the Gain specifications section.
This option is enabled only if the filter is of minimum order, and
the frequency constraint selected is Center frequency,
bandwidth, stopband width
.
- Low frequency
Enter the low frequency cutoff. This option is enabled only
if the filter order is user specified and the frequency constraint
selected is Low frequency, high frequency
.
The filter magnitude is attenuated by the amount specified in Bandwidth
gain.
- High frequency
Enter the high frequency cutoff. This option is enabled only
if the filter order is user specified and the frequency constraint
selected is Low frequency, high frequency
.
The filter magnitude is attenuated by the amount specified in Bandwidth
gain.
Gain specifications
Depending on the filter order and frequency constraints, the
possible gain constraints change. Also, once you choose the gain constraints
the input boxes in this area change to reflect the selection.
- Gain constraints
Select the specification array to represent gain constraints,
and remember that not all of these options are available for all configurations.
The following is a list of all available options:
Reference, center frequency, bandwidth,
passband
Reference, center frequency, bandwidth,
stopband
Reference, center frequency, bandwidth,
passband, stopband
Reference, center frequency, bandwidth
- Gain units
Specify the gain units either dB
or squared
.
These units are used for all gain specifications in the dialog box.
- Reference gain
The reference gain determines the level to which the filter
magnitude attenuates in Gain units. The reference
gain is a floor gain for the filter magnitude
response. For example, you may use the reference gain together with
the Center frequency gain to leave certain frequencies
unattenuated (reference gain of 0 dB) while boosting other frequencies.
- Bandwidth gain
Specifies the gain in Gain units at which
the bandwidth is defined. This property applies only when the Frequency
constraints specification contains a bandwidth
parameter,
or is Low frequency, high frequency
.
- Center frequency gain
Specify the center frequency in Gain units
- Passband gain
The passband gain determines the level in Gain units at
which the passband is defined. The passband is determined either by
the Passband width value, or the Low
frequency and High frequency values
in the Frequency specifications section.
- Stopband gain
The stopband gain is the level in Gain units at
which the stopband is defined. This property applies only when the Order
mode is minimum and the Frequency constraints are Center
frequency, bandwidth, stopband width
.
- Boost/cut gain
The boost/cut gain applies only when the designing a shelving
filter. Shelving filters include the Shelf type
parameter
in the Frequency constraints specification. The
gain in the passband of the shelving filter is increased by Boost/cut
gain dB from a floor gain of 0 dB.
Algorithm
- Design method
Select the design method from the drop-down list. Different
IIR design methods are available depending on the filter constraints
you specify.
- Scale SOS filter coefficients to reduce
chance of overflow
Select the check box to scale the filter coefficients.
Filter implementation
- Structure
Select filter structure. The possible choices are:
- Use a System object to implement filter
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, the check box is cleared. When the
current design method or structure is not supported by a System object filter,
then this check box is disabled.
Peak/Notch Filter Design — Main Pane
Filter specifications
In this area you can specify whether you want to design a peaking
filter or a notching filter, as well as the order of the filter.
- Response
Select Peak
or Notch
from
the drop-down box.
- Order
Enter the filter order. The order must be even.
Frequency specifications
This group of parameters allows you to specify frequency constraints
and units.
- Frequency Constraints
Select the frequency constraints for filter specification. There
are two choices as follows:
- Frequency units
The frequency units are normalized by default. If you specify
units other than normalized, filterBuilder
assumes
that you wish to specify an input sampling frequency, and enables
this input box. The choice of frequency units are: Normalized
(0 to 1), Hz, kHz, MHz, GHz
.
- Input Fs
This input box is enabled if Frequency units other
than Normalized (0 to 1)
are specified.
Enter the input sampling frequency.
- Center frequency
Enter the center frequency in the units you specified in Frequency
units.
- Quality Factor
This input box is enabled only when Center frequency
and quality factor
is chosen for the Frequency
Constraints. Enter the quality factor.
- Bandwidth
This input box is enabled only when Center frequency
and bandwidth
is chosen for the Frequency
Constraints. Enter the bandwidth.
Magnitude specifications
This group of parameters allows you to specify the magnitude
constraints, as well as their values and units.
- Magnitude Constraints
Depending on the choice of constraints, the other input boxes
are enabled or disabled. Select from four magnitude constraints available:
- Magnitude units
Select the magnitude units: either dB
or squared
.
- Apass
This input box is enabled if the magnitude constraints selected
are Passband ripple
or Passband
ripple and stopband attenuation
. Enter the passband
ripple.
- Astop
This input box is enabled if the magnitude constraints selected
are Stopband attenuation
or Passband
ripple and stopband attenuation
. Enter the stopband
attenuation.
Algorithm
The parameters in this group allow you to specify the design
method and structure that filterBuilder
uses to
implement your filter.
- Design Method
Lists all design methods available for the frequency and magnitude
specifications you entered. When you change the specifications for
a filter the methods available to design filters changes as well.
- Scale SOS filter coefficients to reduce
chance of overflow
Selecting this parameter directs the design to scale the filter
coefficients to reduce the chances that the inputs or calculations
in the filter overflow and exceed the representable range of the filter.
Clearing this option removes the scaling. This parameter applies only
to IIR filters.
Filter implementation
- Structure
Lists all available filter structures for the filter specifications
and design method you select. The typical options are:
- Use a System object to implement filter
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, the check box is cleared. When the
current design method or structure is not supported by a System object filter,
then this check box is disabled.
Pulse-shaping Filter Design —Main Pane
Filter specifications
Parameters in this group enable you to specify the shape and
length of the filter.
- Pulse shape
Select the shape of the impulse response from the following
options:
- Order mode
This specification is only available for raised cosine and
square root raised cosine filters. For these filters, select one of
the following options:
Minimum
— This option
will result in the minimum-length filter satisfying the user-specified Frequency
specifications.
Specify order
—This
option allows the user to construct a raised cosine or square root
cosine filter of a specified order by entering an even number in the Order input
box. The length of the impulse response will be Order+1
.
Specify symbols
—This
option enables the user to specify the length of the impulse response
in an alternative manner. If Specify symbols
is
chosen, the Order input box changes to the Number
of symbols input box.
- Samples per symbol
Specify the oversampling factor. Increasing the oversampling
factor guards against aliasing and improves the FIR filter approximation
to the ideal frequency response. If Order is
specified in Number of symbols, the filter length
will be Number of symbols*Samples per symbol+1.
The product Number of symbols*Samples per symbol must
be an even number.
If a Gaussian filter is specified, the filter length must be
specified in Number of symbols and Samples
per symbol. The product Number of symbols*Samples
per symbol must be an even number. The filter length will
be Number of symbols*Samples per symbol+1.
- Filter Type
This option is only available if you have the DSP System Toolbox software.
Choose Single rate
, Decimator
, Interpolator
,
or Sample-rate converter
. If you select Decimator
or Interpolator
,
the decimation and interpolation factors default to the value of the Samples
per symbol. If you select Sample-rate converter
,
the interpolation factor defaults to Samples per symbol and
the decimation factor defaults to 3.
Frequency specifications
Parameters in this group enable you to specify the frequency
response of the filter. For raised cosine and square root raised cosine
filters, the frequency specifications include:
- Rolloff factor
The rolloff factor takes values in the range [0,1]. The smaller
the rolloff factor, the steeper the transition in the stopband.
- Frequency units
The frequency units are normalized by default. If you specify
units other than normalized, filterBuilder
assumes
that you wish to specify an input sampling frequency, and enables
this input box. The choice of frequency units are: Normalized
(0 to 1), Hz, kHz, MHz, GHz
For a Gaussian pulse shape, the available frequency specifications
are:
- Bandwidth-time product
This option allows the user to specify the width of the Gaussian
filter. Note that this is independent of the length of the filter.
The bandwidth-time product (BT) must be a positive real number. Smaller
values of the bandwidth-time product result in larger pulse widths
in time and steeper stopband transitions in the frequency response.
- Frequency units
The frequency units are normalized by default. If you specify
units other than normalized, filterBuilder
assumes
that you wish to specify an input sampling frequency, and enables
this input box. The choice of frequency units are: Normalized
(0 to 1), Hz, kHz, MHz, GHz
Magnitude specifications
If the Order mode is specified as Minimum
,
the Magnitude units may be selected from:
Algorithm
The only Design method available for FIR
pulse-shaping filters is the Window
method.
Filter implementation
- Structure
For the filter specifications and design method you select,
this parameter lists the filter structures available to implement
your filter. By default, FIR filters use direct-form structure.
- Use a System object to implement filter
This check box appears when you set Filter type to Single-rate
.
Selecting this check box gives you the choice of using a System object to
implement the filter. By default, the check box is cleared.
This check box no longer appears when you set Filter
type to Interpolator
, Decimator
,
or Sample-rate converter
. The filter builder
always implements the filter as a System object.
