iirlp2bp

Transform IIR lowpass filter to IIR bandpass filter

Description

example

[num,den,allpassNum,allpassDen] = iirlp2bp(b,a,wo,wt) transforms an IIR lowpass filter to an IIR bandpass filter.

The iirlp2bp function returns the numerator and denominator coefficients of the transformed bandpass filter. The function transforms the real lowpass prototype filter, specified by the numerator coefficients b and denominator coefficients a, by applying a second-order real lowpass to real bandpass frequency mapping. For more information, see IIR Lowpass to IIR Bandpass Transformation.

The function also returns the numerator and the denominator coefficients of the allpass mapping filter, allpassNum and allpassDen respectively.

Frequencies must be normalized to be between 0 and 1, with 1 corresponding to half the sample rate.

Examples

collapse all

Transform a lowpass IIR filter to a bandpass filter using the iirlp2bp function.

Input Lowpass IIR Filter

Design a prototype real IIR lowpass elliptic filter using the ellip function. The filter has a gain of about –3 dB at 0.5π rad/sample.

[b,a] = ellip(3,0.1,30,0.409);
fvtool(b,a)

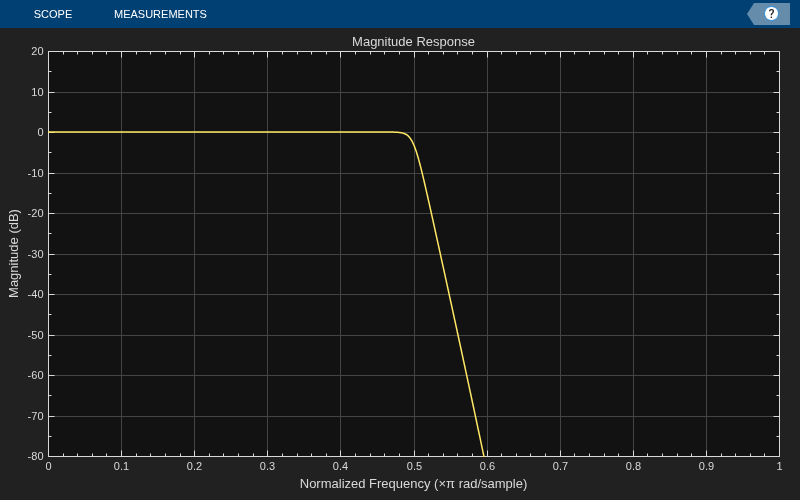

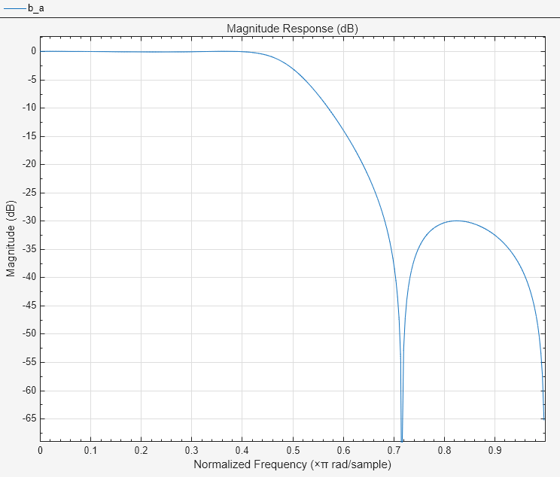

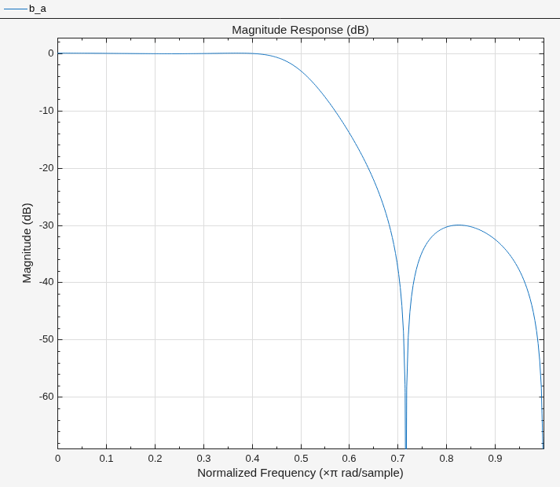

Figure Figure 1: Magnitude Response (dB) contains an axes object. The axes object with title Magnitude Response (dB), xlabel Normalized Frequency ( times pi blank rad/sample), ylabel Magnitude (dB) contains an object of type line.

Transform Filter Using iirlp2bp

Transform the prototype lowpass filter into a bandpass filter by placing the cutoff frequencies of the prototype filter at 0.25π and 0.75π.

Specify the prototype filter as a vector of numerator and denominator coefficients, b and a respectively.

[num,den] = iirlp2bp(b,a,0.5,[0.25 0.75]);

Compare the magnitude response of the filters using FVTool.

hvft = fvtool(b,a,num,den);
legend(hvft,"Prototype Filter (TF Form)","Transformed Bandpass Filter")

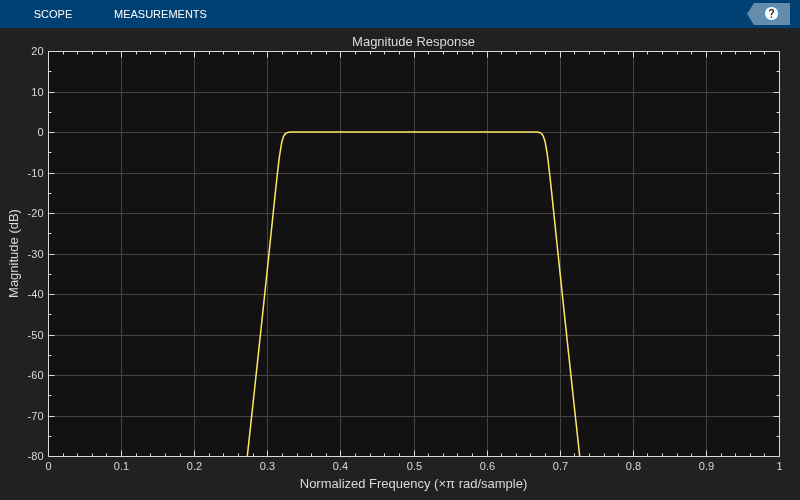

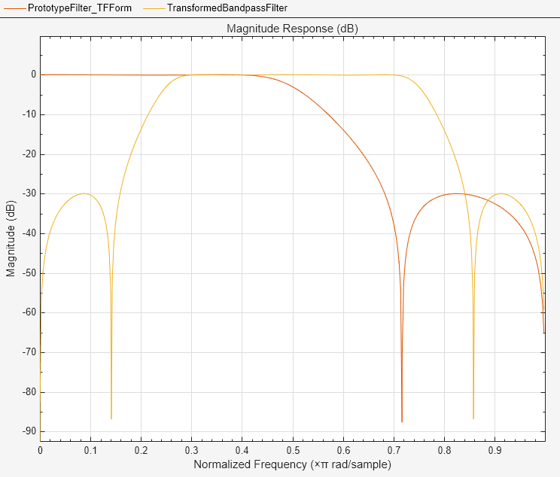

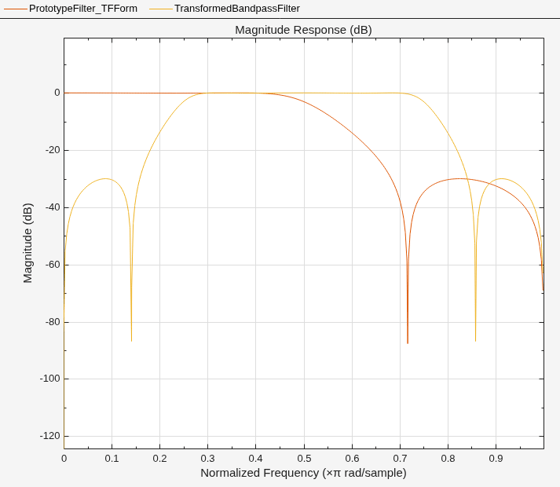

Figure Figure 2: Magnitude Response (dB) contains an axes object. The axes object with title Magnitude Response (dB), xlabel Normalized Frequency ( times pi blank rad/sample), ylabel Magnitude (dB) contains 2 objects of type line. These objects represent Prototype Filter (TF Form), Transformed Bandpass Filter.

You can also specify the input lowpass IIR filter as a matrix of coefficients. Pass the second-order section matrices as inputs. The transformed filter is a fourth-order section filter given by the numerator and the denominator coefficients num2 and den2.

ss = tf2sos(b,a);
[num2,den2] = iirlp2bp(ss(:,1:3),ss(:,4:6),0.5,[0.25 0.75]);

Compare the magnitude response of the filters using FVTool.

To visualize the magnitude response of the fourth-order section filter, first pass the filter coefficients to the dsp.FourthOrderSectionFilter object. Then, use this object as an input to the FVTool.

fos = dsp.FourthOrderSectionFilter(Numerator=num2,...
         Denominator=den2);
hvft = fvtool(ss,fos);
legend(hvft,"Prototype Filter (SOS Form)",...
    "Transformed Bandpass Filter")

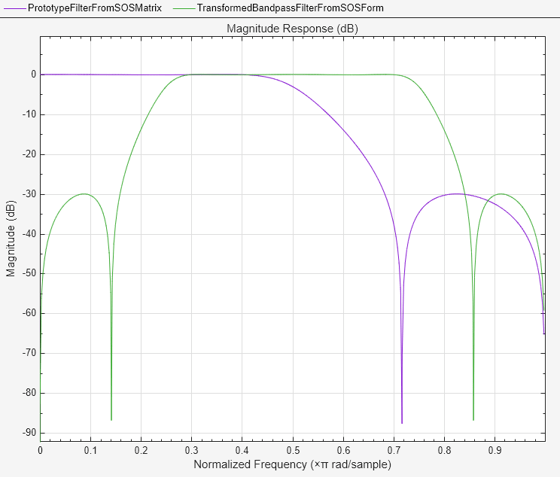

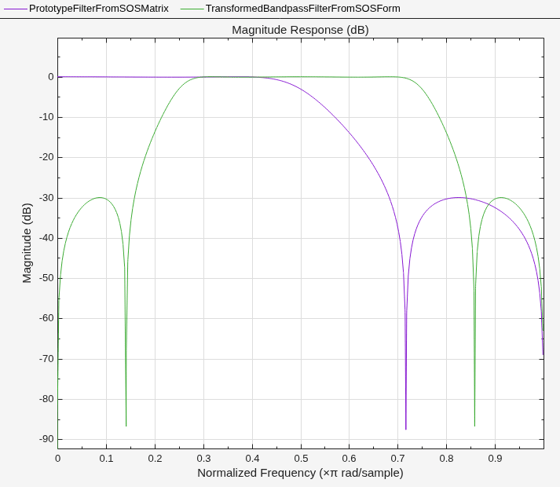

Figure Figure 3: Magnitude Response (dB) contains an axes object. The axes object with title Magnitude Response (dB), xlabel Normalized Frequency ( times pi blank rad/sample), ylabel Magnitude (dB) contains 2 objects of type line. These objects represent Prototype Filter (SOS Form), Transformed Bandpass Filter.

Copyright 2012–2023 The MathWorks, Inc.

Input Arguments

collapse all

Numerator coefficients of the prototype lowpass IIR filter, specified as either:

  • Row vector –– Specifies the values of [b0, b1, …, bn], given this transfer function form:

    H(z)=B(z)A(z)=b0+b1z1++bnzna0+a1z1++anzn,

    where n is the order of the filter.

  • Matrix –– Specifies the numerator coefficients in the form of an P-by-(Q+1) matrix, where P is the number of filter sections and Q is the order of each filter section. If Q = 2, the filter is a second-order section filter. For higher-order sections, make Q > 2.

    b=[b01b11b21...bQ1b02b12b22...bQ2b0Pb1Pb2PbQP]

    In the transfer function form, the numerator coefficient matrix bik of the IIR filter can be represented using the following equation:

    H(z)=k=1PHk(z)=k=1Pb0k+b1kz1+b2kz2++bQkzQa0k+a1kz1+a2kz2++aQkzQ,

    where,

    • a –– Denominator coefficients matrix. For more information on how to specify this matrix, see a.

    • k –– Row index.

    • i –– Column index.

    When specified in the matrix form, b and a matrices must have the same number of rows (filter sections) Q.

Data Types: single | double
Complex Number Support: Yes

Denominator coefficients for a prototype lowpass IIR filter, specified as one of these options:

  • Row vector –– Specifies the values of [a0, a1, …, an], given this transfer function form:

    H(z)=B(z)A(z)=b0+b1z1++bnzna0+a1z1++anzn,

    where n is the order of the filter.

  • Matrix –– Specifies the denominator coefficients in the form of an P-by-(Q+1) matrix, where P is the number of filter sections and Q is the order of each filter section. If Q = 2, the filter is a second-order section filter. For higher-order sections, make Q > 2.

    a=[a01a11a21aQ1a02a12a22aQ2a0Pa1Pa2PaQP]

    In the transfer function form, the denominator coefficient matrix aik of the IIR filter can be represented using the following equation:

    H(z)=k=1PHk(z)=k=1Pb0k+b1kz1+b2kz2++bQkzQa0k+a1kz1+a2kz2++aQkzQ,

    where,

    • b –– Numerator coefficients matrix. For more information on how to specify this matrix, see b.

    • k –– Row index.

    • i –– Column index.

    When specified in the matrix form, a and b matrices must have the same number of rows (filter sections) P.

Data Types: single | double
Complex Number Support: Yes

Frequency value to transform from the prototype filter, specified as a scalar. Frequency wo must be normalized to be between 0 and 1, with 1 corresponding to half the sample rate.

Data Types: single | double

Desired frequency locations in the transformed target filter, specified as a two-element vector. Frequencies in wt must be normalized to be between 0 and 1, with 1 corresponding to half the sample rate.

Data Types: single | double

Output Arguments

collapse all

Numerator coefficients of the transformed bandpass filter, returned as one of the following:

  • Row vector of length 2n+1, where n is the order of the input filter. The num output is a row vector when the input coefficients b and a are row vectors.

  • P-by-(2Q+1) matrix, where P is the number of filter sections and Q is the order of each section of the transformed filter. The num output is a matrix when the input coefficients b and a are matrices.

Data Types: single | double
Complex Number Support: Yes

Denominator coefficients of the transformed bandpass filter, returned as one of the following:

  • Row vector of length 2n+1, where n is the order of the input filter. The den output is a row vector when the input coefficients b and a are row vectors.

  • P-by-(2Q+1) matrix, where P is the number of filter sections and Q is the order of each section of the transformed filter. The den output is a matrix when the input coefficients b and a are matrices.

Data Types: single | double

Numerator coefficients of the mapping filter, returned as a row vector.

Data Types: single | double

Denominator coefficients of the mapping filter, returned as a row vector.

Data Types: single | double

More About

collapse all

IIR Lowpass to IIR Bandpass Transformation

IIR lowpass to IIR bandpass transformation effectively places one feature of the original filter, located at frequency −wo, at the required target frequency location wt1, and the second feature, originally at +wo, at the new location wt2. It is assumed that wt2 is greater than wt1. This transformation implements the “DC Mobility,” meaning that the Nyquist feature stays at Nyquist, but the DC feature moves to a location dependent on the selection of wts.

Relative positions of other features of the original filter do not change in the target filter. This means that it is possible to select two features of an original filter, F1 and F2, with F1 preceding F2. Feature F1 will still precede F2 after the transformation. However, the distance between F1 and F2 will not be the same before and after the transformation.

Choice of the feature subject to the lowpass to bandpass transformation is not restricted only to the cutoff frequency of an original lowpass filter. You can choose to transform any feature of the original filter like stopband edge, DC, deep minimum in the stopband, or others.

Real lowpass to bandpass transformation can also be used to transform other types of filters, for example, real notch filters or resonators can be doubled and positioned at two distinct desired frequencies.

References

[1] Nowrouzian, B., and A.G. Constantinides. “Prototype Reference Transfer Function Parameters in the Discrete-Time Frequency Transformations.” In Proceedings of the 33rd Midwest Symposium on Circuits and Systems, 1078–82. Calgary, Alta., Canada: IEEE, 1991. https://doi.org/10.1109/MWSCAS.1990.140912.

[2] Nowrouzian, B., and L.T. Bruton. “Closed-Form Solutions for Discrete-Time Elliptic Transfer Functions.” In [1992] Proceedings of the 35th Midwest Symposium on Circuits and Systems, 784–87. Washington, DC, USA: IEEE, 1992. https://doi.org/10.1109/MWSCAS.1992.271206.

[3] Constantinides, A.G. “Design of Bandpass Digital Filters.” Proceedings of the IEEE 57, no. 6 (1969): 1229–31. https://doi.org/10.1109/PROC.1969.7216.

[4] Constantinides, A.G.“Spectral transformations for digital filters.” Proceedings of the IEEE, vol. 117, no. 8: 1585-1590. August 1970.
