Matrix Exponential

Compute matrix exponential

  • Matrix Exponential block

Libraries:
DSP System Toolbox / Math Functions / Matrices and Linear Algebra / Matrix Operations

Description

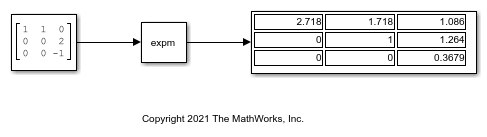

The Matrix Exponential block computes the matrix exponential of a square matrix using a scaling and squaring algorithm with a Pade approximation.

Ports

Input

expand all

Specify the input data as a square matrix.

Data Types: single | double
Complex Number Support: Yes

Output

expand all

Matrix exponential output of the input square matrix.

Data Types: single | double
Complex Number Support: Yes

Block Characteristics

Data Types

double | single

Direct Feedthrough

no

Multidimensional Signals

no

Variable-Size Signals

no

Zero-Crossing Detection

no

Extended Capabilities

Version History

Introduced before R2006a
