Phase Extractor

Extract the unwrapped phase of a complex input

  • Phase Extractor block

Libraries:
DSP System Toolbox / Signal Operations

Description

The Phase Extractor block extracts the unwrapped phase of a complex input.

Ports

Input

expand all

Specify the input signal as a vector or a matrix. When the input is a matrix, the block treats each column of the signal as an independent channel. The first dimension is the length of the channel. The second dimension is the number of channels. The block treats one dimensional inputs as one channel.

Data Types: single | double
Complex Number Support: Yes

Output

expand all

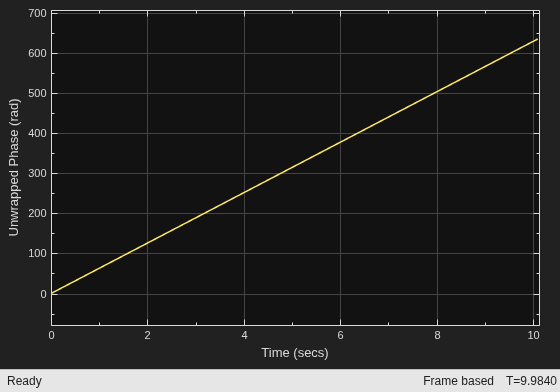

The block returns the unwrapped phase of the signal.

The block preserves the input size and dimension, and the output port rate equals the input port rate.

Data Types: single | double

Parameters

expand all

When you clear this check box, the block ignores boundaries between the input frames. When you select this check box, the block treats each frame of input data independently, and resets the initial phase value for each new input frame.

Specify the type of simulation to run as one of the following:

  • Code generation –– Simulate model using generated C code. The first time you run a simulation, Simulink® generates C code for the block. Simulink reuses the C code in subsequent simulations as long as the model does not change. This option requires additional startup time but subsequent simulations are faster compared to Interpreted execution.

  • Interpreted execution –– Simulate model using the MATLAB®  interpreter. This option shortens startup time but subsequent simulations are slower compared to Code generation.

Block Characteristics

Data Types

double | single

Direct Feedthrough

no

Multidimensional Signals

no

Variable-Size Signals

yes

Zero-Crossing Detection

no

Algorithms

Consider an input frame of length N:

(x1x2xN)

The step method acts on this frame and produces this output:

(Φ1Φ2ΦN)

where:

Φi=Φi1+angle(xi1*xi)

Here, i runs from 1 to N. The angle function returns the phase angle in radians.

If the input signal consists of multiple frames:

  • If you set TreatFramesIndependently to true, the step method treats each frame independently. Therefore, in each frame, the step method calculates the phase using the preceding formula where:

    • Φ0 is 0.

    • x0 is 1.

  • If you set TreatFramesIndependently to false, the step method ignores boundaries between frames. Therefore, in each frame, the step method calculates the phase using the preceding formula where:

    • Φ0 is the last unwrapped phase from the previous frame.

    • x0 is the last sample from the previous frame.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2014b
