polyphase

Polyphase decomposition of multirate filter

Syntax

p = polyphase(obj)
p = polyphase(obj,Name,Value)
polyphase(obj)

Description

p = polyphase(obj) returns the polyphase matrix p of the multirate filter System object™ obj. Each row in the matrix corresponds to a polyhase branch. The number of columns in p corresponds to the number of filter taps per polyphase branch.

p = polyphase(obj,Name,Value) returns the polyphase matrix p of the multirate filter System object obj.

polyphase(obj) launches the Filter Visualization Tool (fvtool) with all the polyphase subfilters to allow you to analyze each component subfilter individually.

Input Arguments

collapse all

obj

Filter System object.

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside single quotes (' '). You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

collapse all

When you specify 'double' or 'single', the function performs double- or single-precision analysis. You can specify 'fixed' only if the System object supports fixed-point arithmetic. When you specify 'fixed' , the arithmetic changes depending on the setting of the CoefficientDataType property and whether the System object is locked or unlocked.

 Details for Fixed-Point Arithmetic

When you do not specify the arithmetic for non-CIC structures, the function uses double-precision arithmetic if the filter System object is in an unlocked state. If the System object is locked, the function performs analysis based on the locked input data type. CIC structures only support fixed-point arithmetic.

Output Arguments

p

Polyphase matrix p of the multirate filter. Each row in the matrix corresponds to a polyhase branch. The first row of matrix p represents the first polyphase branch, the second row the second polyphase branch, and so on to the last polyphase branch. The number of columns in p corresponds to the number of filter taps per polyphase branch.

Examples

collapse all

When you create a multirate filter that uses polyphase decomposition, polyphase lets you analyze the component filters individually by returning the components as rows in a matrix. First, create an interpolate-by-three filter.

hs = dsp.FIRInterpolator
hs =

  dsp.FIRInterpolator with properties:

        NumeratorSource: 'Property'
              Numerator: [1x16 double]
    InterpolationFactor: 3

  Use get to show all properties

In this syntax, the matrix p contains all of the subfilters for hm, one filter per matrix row.

p = polyphase(hs)
p =

   -0.0013   -0.0107    0.1784    0.1784   -0.0107   -0.0013
   -0.0054    0.0204    0.2406    0.0904   -0.0124         0
   -0.0124    0.0904    0.2406    0.0204   -0.0054         0

Finally, using polyphase without an output argument opens the Filter Visualization Tool, ready for you to use the analysis capabilities of the tool to investigate the interpolator hm.

polyphase(hs)

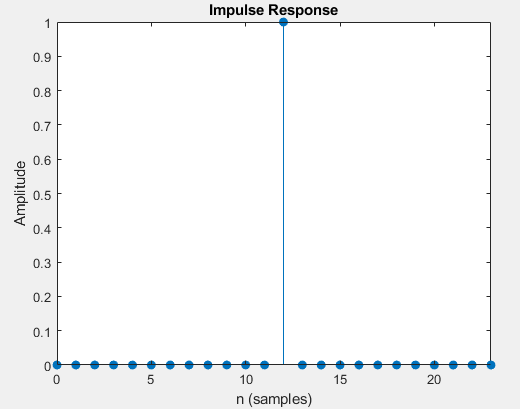

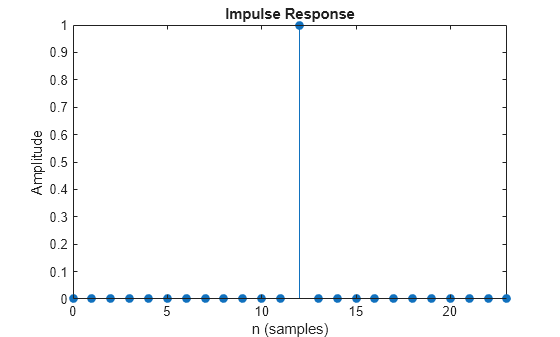

The fvtool shows the coefficients of the subfilters. To see the magnitude response of the subfilters, click on the Magnitude Response button on the fvtool toolstrip.
