Minimizing Lowpass FIR Filter Length

This example shows how to minimize the number coefficients, by designing minimum-phase or minimum-order filters.

Minimum-Phase Lowpass Filter Design

To start, set up the filter parameters and use fdesign to create a constructor for designing the filter.

  N = 100;
  Fp = 0.38;
  Fst = 0.42;
  Ap = 0.06;
  Ast = 60;
  Hf = fdesign.lowpass('Fp,Fst,Ap,Ast',Fp,Fst,Ap,Ast);

So far, we have only considered linear-phase designs. Linear phase is desirable in many applications. Nevertheless, if linear phase is not a requirement, minimum-phase designs can provide significant improvements over linear phase counterparts. For instance, returning to the minimum order case, a minimum-phase/minimum-order design for the same specifications can be computed with:

  Hd1 = design(Hf,'equiripple','systemobject',true);
  Hd2 = design(Hf,'equiripple','minphase',true,...
              'systemobject',true);
  hfvt = fvtool(Hd1,Hd2,'Color','White');
  legend(hfvt,'Linear-phase equiripple design',...
         'Minimum-phase equiripple design')

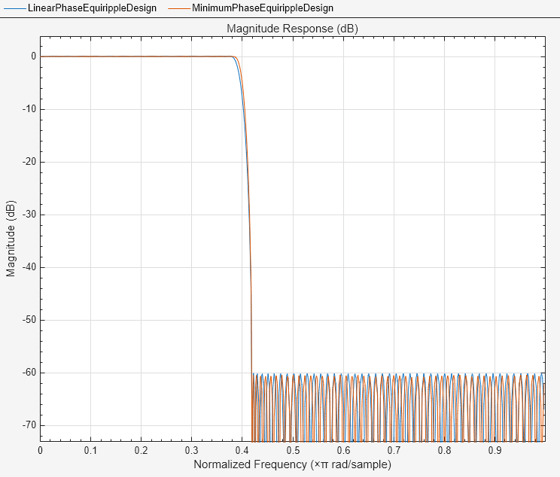

Figure Figure 1: Magnitude Response (dB) contains an axes object. The axes object with title Magnitude Response (dB), xlabel Normalized Frequency ( times pi blank rad/sample), ylabel Magnitude (dB) contains 3 objects of type line. These objects represent Linear-phase equiripple design, Minimum-phase equiripple design.

Notice that the number of coefficients has been reduced from 146 to 117. As a second example, consider the design with a stopband decaying in linear fashion. Notice the increased stopband attenuation. The passband ripple is also significantly smaller.

  setspecs(Hf,'N,Fp,Fst',N,Fp,Fst);
  Hd3 = design(Hf,'equiripple','StopbandShape','linear',...
      'StopbandDecay',53.333,'systemobject',true);
  setspecs(Hf,'Fp,Fst,Ap,Ast',Fp,Fst,Ap,Ast);
  Hd4 = design(Hf,'equiripple','StopbandShape','linear',...
      'StopbandDecay',53.333,'minphase',true,'systemobject',true);
  hfvt2 = fvtool(Hd3,Hd4,'Color','White');
  legend(hfvt2,'Linear-phase equiripple design with linearly decaying stopband',...
      'Minimum-phase equiripple design with linearly decaying stopband')

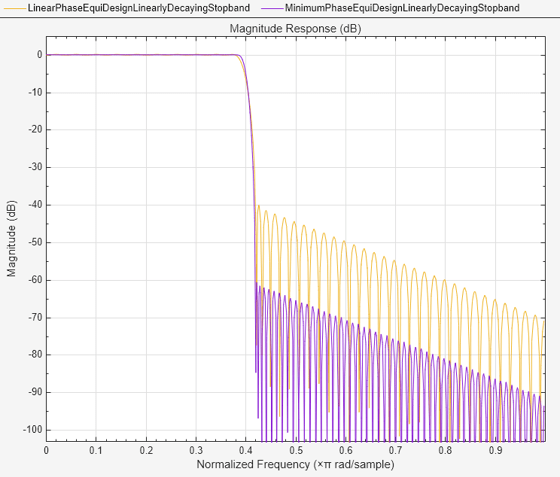

Figure Figure 2: Magnitude Response (dB) contains an axes object. The axes object with title Magnitude Response (dB), xlabel Normalized Frequency ( times pi blank rad/sample), ylabel Magnitude (dB) contains 2 objects of type line. These objects represent Linear-phase equiripple design with linearly decaying stopband, Minimum-phase equiripple design with linearly decaying stopband.

Minimum-Order Lowpass Filter Design Using Multistage Techniques

A different approach to minimizing the number of coefficients that does not involve minimum-phase designs is to use multistage techniques. Here we show an interpolated FIR (IFIR) approach.

  Hd5 = ifir(Hf);
  hfvt3 = fvtool(Hd1,Hd5,'Color','White');
  legend(hfvt3,'Linear-phase equirriple design',...
        'Linear-phase IFIR design')

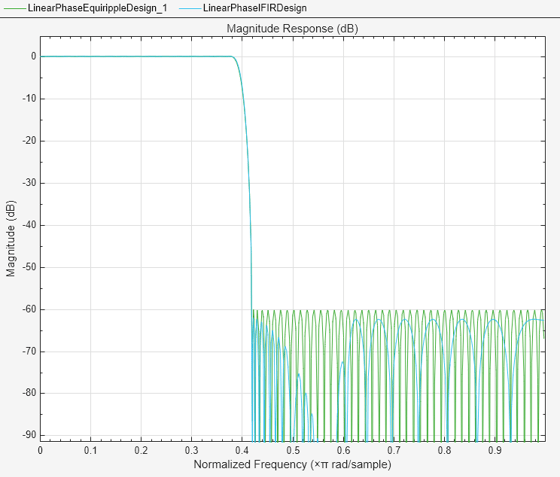

Figure Figure 3: Magnitude Response (dB) contains an axes object. The axes object with title Magnitude Response (dB), xlabel Normalized Frequency ( times pi blank rad/sample), ylabel Magnitude (dB) contains 2 objects of type line. These objects represent Linear-phase equirriple design, Linear-phase IFIR design.

The number of nonzero coefficients required in the IFIR case is 111. Less than both the equiripple linear-phase and minimum-phase designs.
