Reduce Noise in Image Gradients

This example demonstrates how to reduce noise associated with computing image gradients. Image gradients are used to highlight interesting features in images and are used in many feature detection algorithms like edge/corner detection. Reducing noise in gradient computations is crucial to detecting accurate features.

Read an image into the workspace and convert it to grayscale.

originalImage = imread("yellowlily.jpg");
originalImage = im2gray(originalImage);

imshow(originalImage)

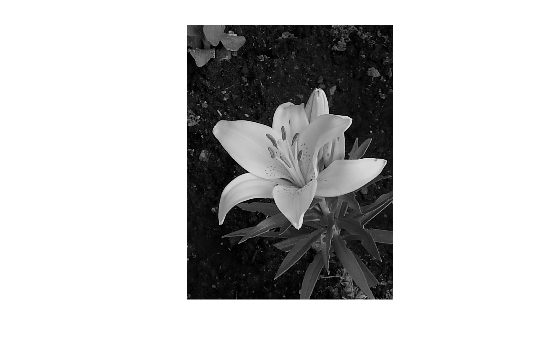

Figure contains an axes object. The axes object contains an object of type image.

To simulate noise for this example, add some Gaussian noise to the image.

noisyImage = imnoise(originalImage,"gaussian");
imshow(noisyImage)

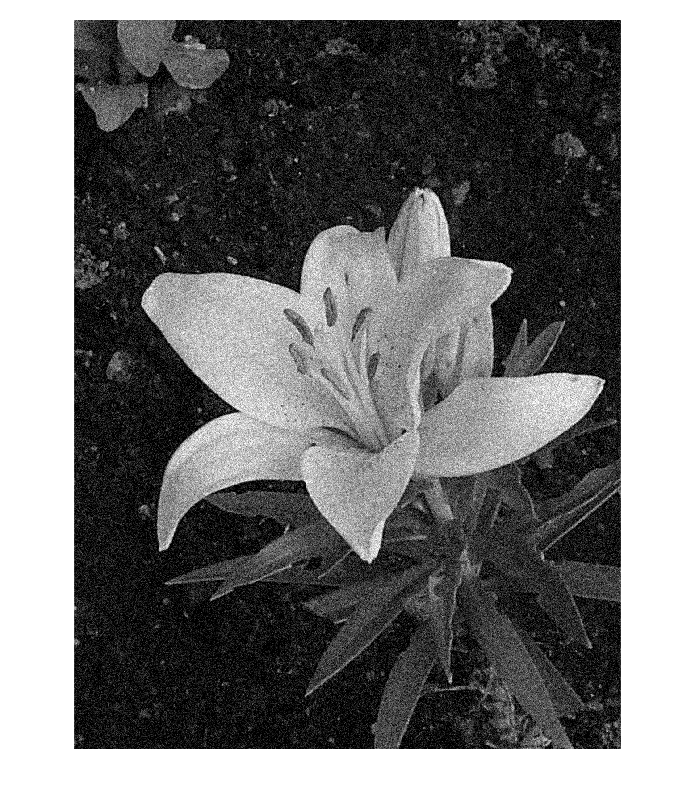

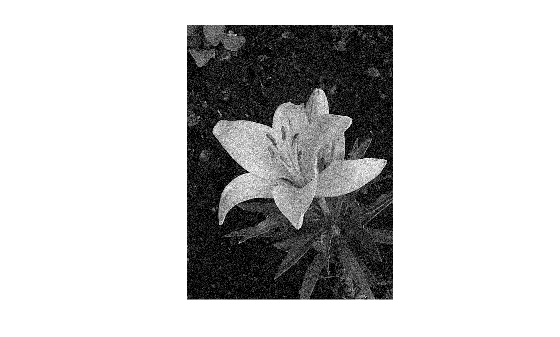

Figure contains an axes object. The axes object contains an object of type image.

Compute the magnitude of the gradient by using the imgradient and imgradientxy functions. imgradient finds the gradient magnitude and direction, and imgradientxy finds directional image gradients.

sobelGradient = imgradient(noisyImage);
imshow(sobelGradient,[])
title("Sobel Gradient Magnitude")

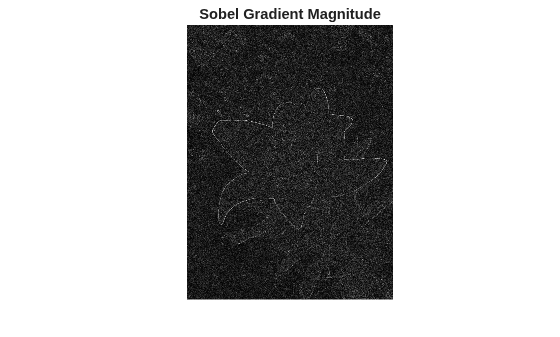

Figure contains an axes object. The axes object with title Sobel Gradient Magnitude contains an object of type image.

Looking at the gradient magnitude image, it is clear that the image gradient is very noisy. The effect of noise can be minimized by smoothing before gradient computation. imgradient already offers this capability for small amounts of noise by using the Sobel gradient operator. The Sobel gradient operators are 3-by-3 filters as shown below. They can be generated using the fspecial function.

hy = -fspecial("sobel")
hy = 3×3

    -1    -2    -1
     0     0     0
     1     2     1

hx = hy'
hx = 3×3

    -1     0     1
    -2     0     2
    -1     0     1

The hy filter computes a gradient along the vertical direction while smoothing in the horizontal direction. hx smooths in the vertical direction and computes a gradient along the horizontal direction. The "Prewitt" and "Roberts" method options also provide this capability.

Even with the use of Sobel, Roberts or Prewitt gradient operators, the image gradient may be too noisy. To overcome this, smooth the image using a Gaussian smoothing filter before computing image gradients. Use the imgaussfilt function to smooth the image. The standard deviation of the Gaussian filter varies the extent of smoothing. Since smoothing is taken care of by Gaussian filtering, the central or intermediate differencing gradient operators can be used.

sigma = 2;
smoothImage = imgaussfilt(noisyImage,sigma);
smoothGradient = imgradient(smoothImage,"CentralDifference");
imshow(smoothGradient,[])
title("Smoothed Gradient Magnitude")

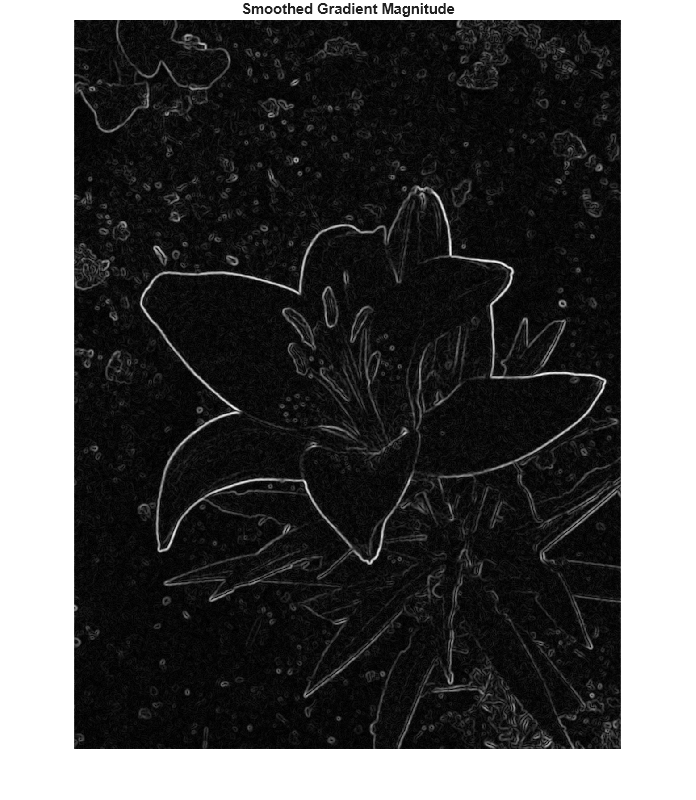

Figure contains an axes object. The axes object with title Smoothed Gradient Magnitude contains an object of type image.
