highlight

Highlight nodes and edges in plotted graph

Syntax

highlight(H,nodeIDs)
highlight(H,G)
highlight(H,s,t)
highlight(___,Name,Value)

Description

example

highlight(H,nodeIDs) highlights the nodes specified by nodeIDs by increasing the sizes of their markers.

example

highlight(H,G) highlights the nodes and edges of graph G by increasing their node marker size and edge line width, respectively. G must have the same nodes and a subset of the edges of the underlying graph of H. If G contains repeated edges, then they are all highlighted. Isolated nodes with degree 0 are not highlighted.

highlight(H,s,t) highlights all edges between the specified source and target node pairs in s and t by increasing their edge line widths. If the edge indices are available instead of the node pairs (s,t), use highlight(H,'Edges',idx) instead.

example

highlight(___,Name,Value) uses additional options specified by one or more Name-Value pair arguments using any of the input argument combinations in previous syntaxes. For example, highlight(H,nodes,'NodeColor','g') highlights a subset of nodes by changing their color to green, instead of increasing their marker size.

Examples

collapse all

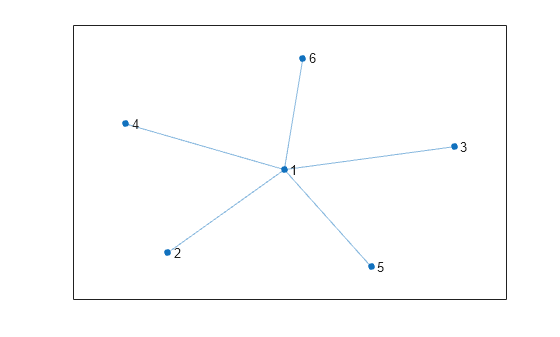

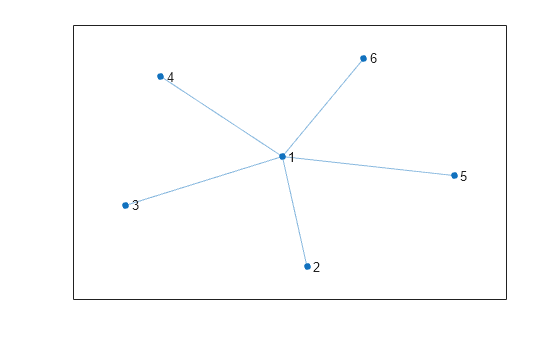

Create and plot a graph. Return a handle to the GraphPlot object, h.

s = 1;
t = 2:6;
G = graph(s,t);

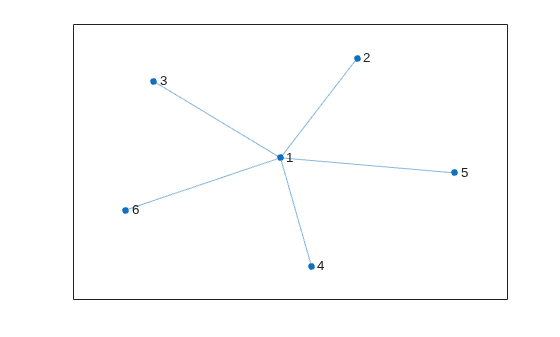

h = plot(G,'Layout','force')

h =
  GraphPlot with properties:

     NodeColor: [0 0.4470 0.7410]
    MarkerSize: 4
        Marker: 'o'
     EdgeColor: [0 0.4470 0.7410]
     LineWidth: 0.5000
     LineStyle: '-'
     NodeLabel: {'1'  '2'  '3'  '4'  '5'  '6'}
     EdgeLabel: {}
         XData: [3.8317e-04 0.6403 0.4648 -1.3929 1.7883 -1.5009]
         YData: [9.6820e-04 1.6734 -1.7296 1.1251 -0.0922 -0.9777]
         ZData: [0 0 0 0 0 0]

  Show all properties

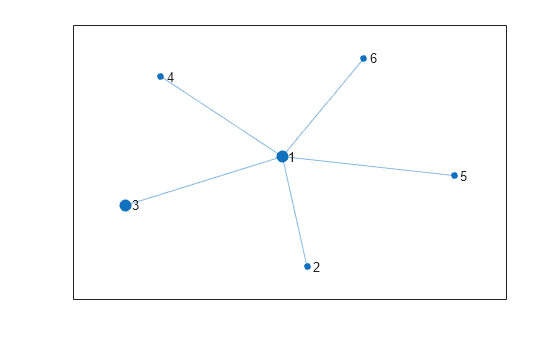

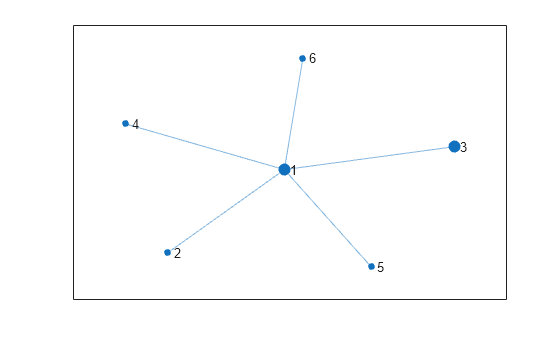

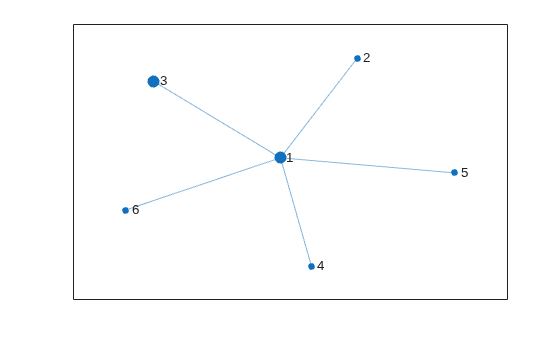

Highlight nodes 1 and 3 by increasing their marker size.

highlight(h,[1 3])

Highlight nodes 1 and 3 by changing their color.

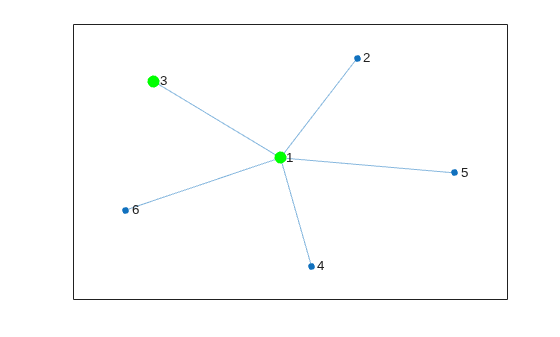

highlight(h,[1 3],'NodeColor','g')

Create and plot a graph. Return a handle to the GraphPlot object, h.

s = [1 1 1 1 1 1 2 3 4 5 6 7 7 7 7 8 9 10 11 8 6];
t = [2 3 4 5 6 7 3 4 5 6 2 8 9 10 11 10 10 11 8 1 11];
G = graph(s,t);

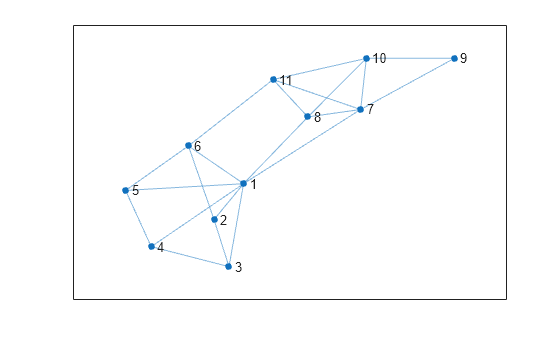

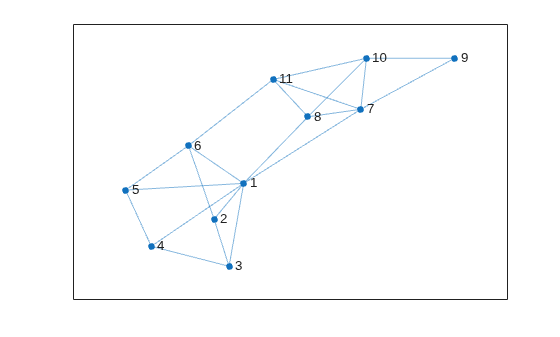

h = plot(G)

h =
  GraphPlot with properties:

     NodeColor: [0 0.4470 0.7410]
    MarkerSize: 4
        Marker: 'o'
     EdgeColor: [0 0.4470 0.7410]
     LineWidth: 0.5000
     LineStyle: '-'
     NodeLabel: {'1'  '2'  '3'  '4'  '5'  '6'  '7'  '8'  '9'  '10'  '11'}
     EdgeLabel: {}
         XData: [1x11 double]
         YData: [1x11 double]
         ZData: [0 0 0 0 0 0 0 0 0 0 0]

  Show all properties

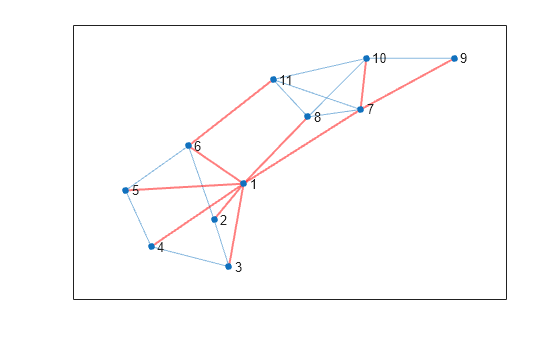

Calculate the minimum spanning tree of the graph. Highlight the minimum spanning tree subgraph in the plot by increasing the line width and changing the color of the edges in the tree.

[T,p] = minspantree(G);

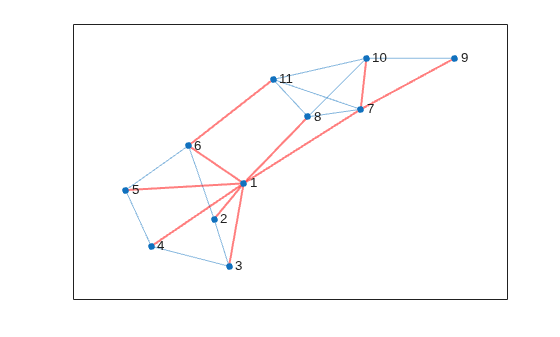

highlight(h,T,'EdgeColor','r','LineWidth',1.5)

Create and plot a graph. Return a handle to the GraphPlot object, h.

n = 10;
A = delsq(numgrid('L',n+2));
G = graph(A,'omitselfloops');
G.Edges.Weight = ones(numedges(G),1);
h = plot(G);

Highlight the shortest path between nodes 74 and 21 by changing the color of the nodes and edges along the path to green.

path = shortestpath(G,74,21);

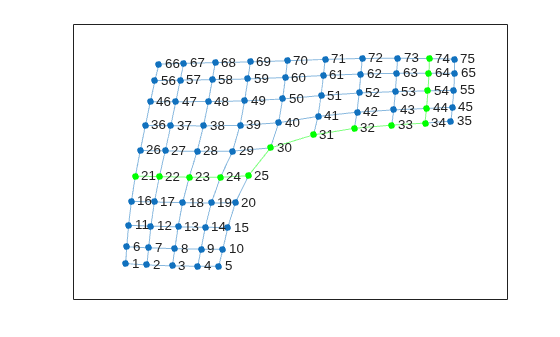

highlight(h,path,'NodeColor','g','EdgeColor','g')

Create a graph representing a square grid with a side of 8 nodes. Plot the graph and return a handle to the GraphPlot object, p.

n = 8;
A = delsq(numgrid('S',n+2));
G = graph(A,'omitselfloops');
p = plot(G);

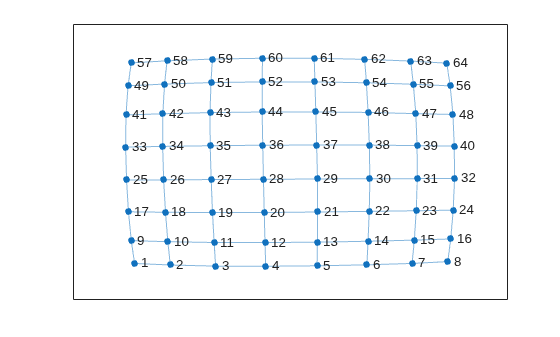

Find the neighbors of node 36.

n36 = neighbors(G,36)
n36 = 4×1

    28
    35
    37
    44

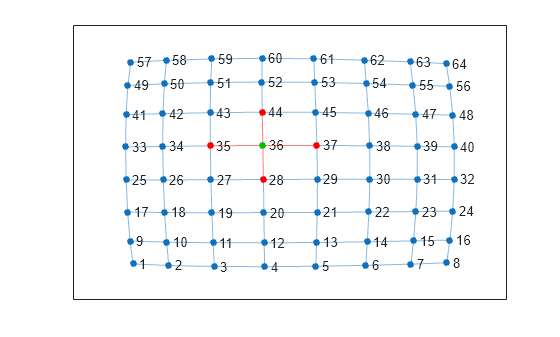

Use highlight to change the color of node 36 to green, and the color of its neighbors and their connecting edges to red.

highlight(p,36,'NodeColor',[0 0.75 0])
highlight(p,n36,'NodeColor','red')
highlight(p,36,n36,'EdgeColor','red')

Create and plot a directed graph. Return a handle to the GraphPlot object, h.

G = digraph(bucky);
h = plot(G);

Compute the maximum flow between nodes 1 and 56. Specify two outputs to maxflow to return a directed graph of the nonzero flows, GF.

[mf,GF] = maxflow(G,1,56)
mf = 3
GF =
  digraph with properties:

    Edges: [28x2 table]
    Nodes: [60x0 table]

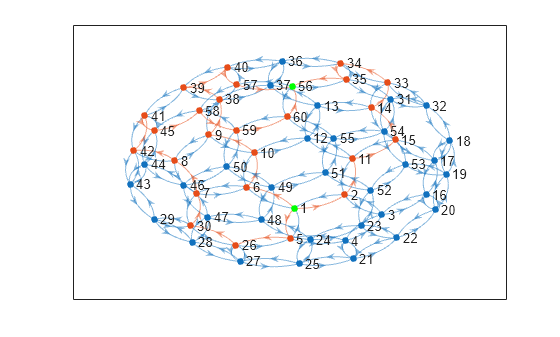

Use highlight to change the color of the edges that contain nonzero flow values. Also change the color of source node 1 and target node 56 to green.

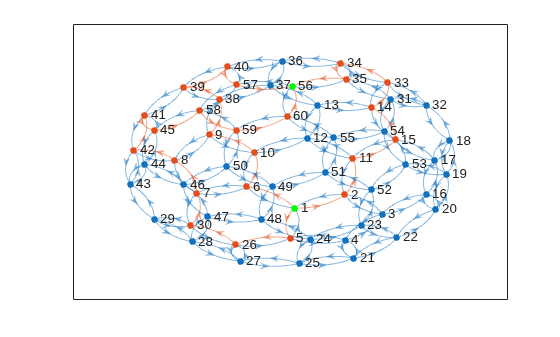

highlight(h,GF,'EdgeColor',[0.9 0.3 0.1],'NodeColor',[0.9 0.3 0.1])
highlight(h,[1 56],'NodeColor','g')

Plot the shortest path between two nodes in a multigraph and highlight the specific edges that are traversed.

Create a weighted multigraph with five nodes. Several pairs of nodes have more than one edge between them. Plot the graph for reference.

G = graph([1 1 1 1 1 2 2 3 3 3 4 4],[2 2 2 2 2 3 4 4 5 5 5 2],[2 4 6 8 10 5 3 1 5 6 8 9]);
p = plot(G,'EdgeLabel',G.Edges.Weight);

Find the shortest path between node 1 and node 5. Since several of the node pairs have more than one edge between them, specify three outputs to shortestpath to return the specific edges that the shortest path traverses.

[P,d,edgepath] = shortestpath(G,1,5)
P = 1×5

     1     2     4     3     5

d = 11
edgepath = 1×4

     1     7     9    10

The results indicate that the shortest path has a total length of 11 and follows the edges given by G.Edges(edgepath,:).

G.Edges(edgepath,:)
ans=4×2 table
    EndNodes    Weight
    ________    ______

     1    2       2
     2    4       3
     3    4       1
     3    5       5

Highlight this edge path by using the highlight function with the 'Edges' name-value pair to specify the indices of the edges traversed.

highlight(p,'Edges',edgepath)
