sinh

Hyperbolic sine

Syntax

Y = sinh(X)

Description

example

Y = sinh(X) returns the hyperbolic sine of the elements of X. The sinh function operates element-wise on arrays. The function accepts both real and complex inputs. All angles are in radians.

Examples

collapse all

Create a vector and calculate the hyperbolic sine of each value.

X = [0 pi 2*pi 3*pi];
Y = sinh(X)
Y = 1×4
103 ×

         0    0.0115    0.2677    6.1958

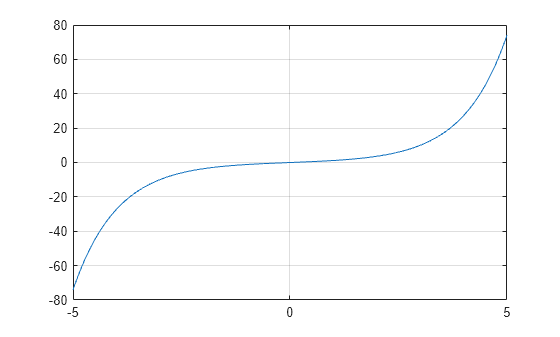

Plot the hyperbolic sine over the domain .

x = -5:0.01:5;
y = sinh(x);
plot(x,y)
grid on

The hyperbolic sine satisfies the identity . In other words, is half the difference of the functions and . Verify this by plotting the functions.

Create a vector of values between -3 and 3 with a step of 0.25. Calculate and plot the values of sinh(x), exp(x), and exp(-x). As expected, the sinh curve is positive where exp(x) is large, and negative where exp(-x) is large.

x = -3:0.25:3;
y1 = sinh(x);
y2 = exp(x);
y3 = exp(-x);
plot(x,y1,x,y2,x,y3)
grid on
legend('sinh(x)','exp(x)','exp(-x)','Location','bestoutside')

Input Arguments

collapse all

Input angles in radians, specified as a scalar, vector, matrix, or multidimensional array.

Data Types: single | double
Complex Number Support: Yes

More About

collapse all

Hyperbolic Sine

The hyperbolic sine of an angle x can be expressed in terms of exponential functions as

sinh(x)=exex2.

In terms of the traditional sine function with a complex argument, the identity is

sinh(x)=isin(ix).

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

See Also

| |

Introduced before R2006a
