Robust Stability and Worst-Case Gain of Uncertain System

This example shows how to calculate the robust stability and examine the worst-case gain of the closed-loop system described in System with Uncertain Parameters. The following commands construct that system.

```m1 = ureal('m1',1,'percent',20); m2 = ureal('m2',1,'percent',20); k = ureal('k',1,'percent',20); s = zpk('s'); G1 = ss(1/s^2)/m1; G2 = ss(1/s^2)/m2; F = [0;G1]*[1 -1]+[1;-1]*[0,G2]; P = lft(F,k); C = 100*ss((s+1)/(.001*s+1))^3; T = feedback(P*C,1); % Closed-loop uncertain system ```

This uncertain state-space model `T` has three uncertain parameters, `k`, `m1`, and `m2`, each equal to 1±20% uncertain variation. Use `robstab` to analyze whether the closed-loop system `T` is robustly stable for all combinations of possible values of these three parameters.

```[stabmarg,wcus] = robstab(T); stabmarg ```
```stabmarg = struct with fields: LowerBound: 2.8805 UpperBound: 2.8864 CriticalFrequency: 575.0338 ```

The data in the structure `stabmarg` includes bounds on the stability margin, which indicate that the control system can tolerate almost 3 times the specified uncertainty before going unstable. It is stable for all parameter variations in the specified ±20% range. The critical frequency is the frequency at which the system is closest to instability.

The structure `wcus` contains the smallest destabilization perturbation values for each uncertain element.

```wcus ```
```wcus = struct with fields: k: 1.5773 m1: 0.4227 m2: 0.4227 ```

You can use these values with `usubs` to verify that they do indeed result in an unstable system.

```Tunst = usubs(T,wcus); isstable(Tunst) ```
```ans = logical 1 ```

Use `wcgain` to calculate the worst-case peak gain, the highest peak gain occurring within the specified uncertainty ranges.

```[wcg,wcug] = wcgain(T); wcg ```
```wcg = struct with fields: LowerBound: 1.0465 UpperBound: 1.0796 CriticalFrequency: 8.3406 ```

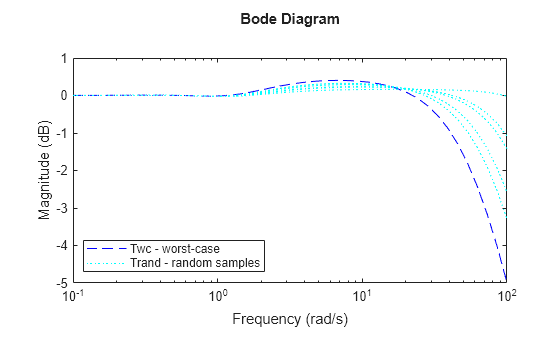

`wcug` contains the values of the uncertain elements that cause the worst-case gain. Compute a closed-loop model with these values, and plot its frequency response along with some random samples of the uncertain system.

```Twc = usubs(T,wcug); Trand = usample(T,5); bodemag(Twc,'b--',Trand,'c:',{.1,100}); legend('Twc - worst-case','Trand - random samples','Location','SouthWest'); ```

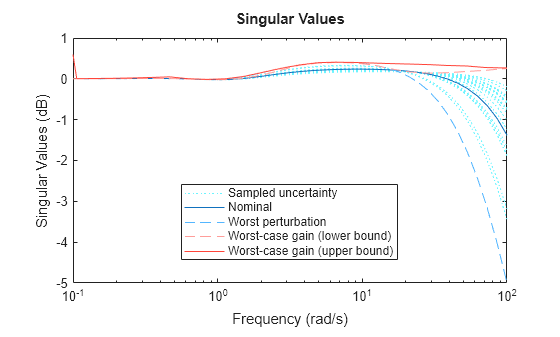

Alternatively use `wcsigma` to visualize the highest possible gain at each frequency, the system with the highest peak gain, and random samples of the uncertain system.

```wcsigma(T,{.1,100}) ```
