verify (model, variant)

Validate and verify SimBiology model

Description

example

verify(modelObj) performs checks on a Model modelObj to verify that you can simulate the model. This function generates stacked errors and warnings if it finds any problems. To see the entire list of errors and warnings, use sbiolasterror and sbiolastwarning. The function uses the active configuration set, any active doses and active variants for verification.

example

verify(modelObj,csObj) verifies a model modelObj using the specified configset object csObj and any active variants and active doses. Any other configsets are ignored. If you set csObj to empty [], the function uses the active configset.

example

verify(modelObj,dvObj) verifies a model modelObj using doses or variants specified by dvObj and the active configset. dvObj can be one of the following:

If you set dvObj to empty [], the function uses the active configset, active variants, and active doses.

If you specify dvObj as variants, the function uses the specified variants and active doses. Any other variants are ignored.

If you specify dvObj as doses, the function uses the specified doses and active variants. Any other doses are ignored.

example

verify(modelObj,csObj,dvObj) verifies a model modelObj using a configset object csObj and doses or variants specified by dvObj.

If you set csObj to [], then the function uses the active configset object.

If you set dvObj to [], then the function uses no variants, but uses active doses.

If you specify dvObj as variants, the function uses the specified variants and active doses. Any other variants are ignored.

If you specify dvObj as doses, the function uses the specified doses and active variants. Any other doses are ignored.

example

verify(modelObj,csObj,variantObj,doseObj) verifies a model modelObj using a configset object csObj, variants (variantObj) and doses (doseObj). Any other configset, doses, and variants are ignored.

If you set csObj to [], then the function uses the active configset object.

If you set variantObj to [], then the function uses no variants.

If you set doseObj to [], then the function uses no doses.

Input Arguments

collapse all

SimBiology model, specified as a SimBiology model object.

Configuration set object, specified as a Configset object that stores simulation-specific information.

Dose or variant object, specified as a ScheduleDose object , RepeatDose object , an array of dose objects, Variant object , or an array of variant objects.

  • When dvObj is a dose object, verify uses the specified dose object as well as any active variant objects if available.

  • When dvObj is a variant object, verify uses the specified variant object as well as any active dose objects if available.

Variant object, specified as a Variant object or an array of variant objects.

Dose object, specified as a ScheduleDose object , RepeatDose object , or an array of dose objects. A dose object defines additions that are made to species amounts or parameter values.

Examples

collapse all

Load a sample SimBiology model.

sbioloadproject radiodecay.sbproj

Add a new configuration set using a different stop time of 15 seconds.

csObj = addconfigset(m1,'newStopTimeConfigSet');
csObj.StopTime = 15;

Verify the model while using the configset object.

verify(m1,csObj);

After verification, check the latest errors and warnings if there is any.

sbiolasterror
ans =

  0x1 empty struct array with fields:

    Type
    MessageID
    Message
sbiolastwarning
ans=3×1 struct array with fields:
    Type
    MessageID
    Message

Simulate the model.

sim = sbiosimulate(m1,csObj);
sbioplot(sim);

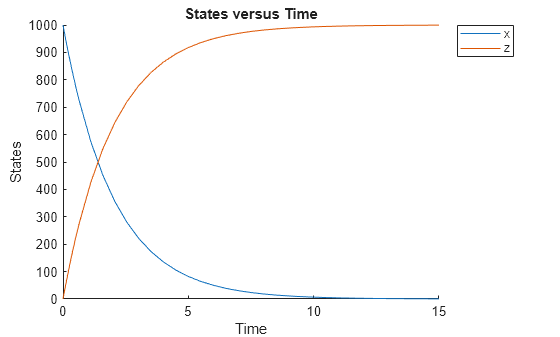

Figure contains an axes object. The axes object with title States versus Time, xlabel Time, ylabel States contains 2 objects of type line. These objects represent x, z.

Load a sample SimBiology model.

sbioloadproject radiodecay.sbproj

Get the default configuration set from the model.

defaultConfigSet = getconfigset(m1,'default');

Add a scheduled dose of 100 molecules at 2 seconds for species x.

dObj = adddose(m1,'d1','schedule');
dObj.Amount = 100;
dObj.AmountUnits = 'molecule';
dObj.TimeUnits = 'second';
dObj.Time = 2;
dObj.TargetName = 'unnamed.x';

Verify the model while using the default configset object and added dose object.

verify(m1,defaultConfigSet,dObj);

After verification, check the latest errors and warnings if there is any.

sbiolasterror
ans =

  0x1 empty struct array with fields:

    Type
    MessageID
    Message
sbiolastwarning
ans=3×1 struct array with fields:
    Type
    MessageID
    Message

Simulate the model using the same configset and dose objects.

sim = sbiosimulate(m1,defaultConfigSet,dObj);

Plot the result.

sbioplot(sim);

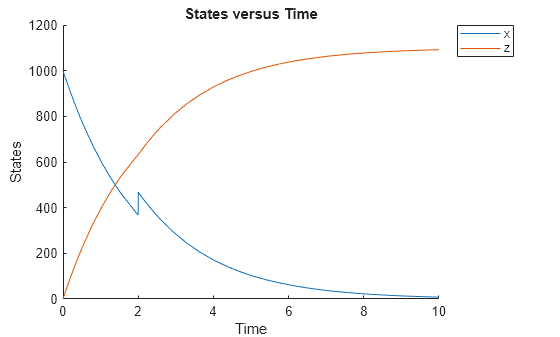

Figure contains an axes object. The axes object with title States versus Time, xlabel Time, ylabel States contains 2 objects of type line. These objects represent x, z.

Load a sample SimBiology model.

sbioloadproject radiodecay.sbproj

Add a new configuration set using a different stop time of 15 seconds.

csObj = m1.addconfigset('newStopTimeConfigSet');
csObj.StopTime = 15;

Add a scheduled dose of 100 molecules at 2 seconds for species x.

dObj = adddose(m1,'d1','schedule');
dObj.Amount = 100;
dObj.AmountUnits = 'molecule';
dObj.TimeUnits = 'second';
dObj.Time = 2;
dObj.TargetName = 'unnamed.x';

Add a variant of species x using a different initial amount of 500 molecules.

vObj = addvariant(m1,'v1');
addcontent(vObj,{'species','x','InitialAmount',500});

Verify the model while using the configset, dose, and variant objects. Note that the order of arguments should be as described.

verify(m1,csObj,vObj,dObj);

After verification, check the latest errors and warnings if there is any.

sbiolasterror
ans =

  0x1 empty struct array with fields:

    Type
    MessageID
    Message
sbiolastwarning
ans=3×1 struct array with fields:
    Type
    MessageID
    Message

Simulate the model using the same configset, variant, and dose objects.

sim = sbiosimulate(m1,csObj,vObj,dObj);

Plot the result.

sbioplot(sim);

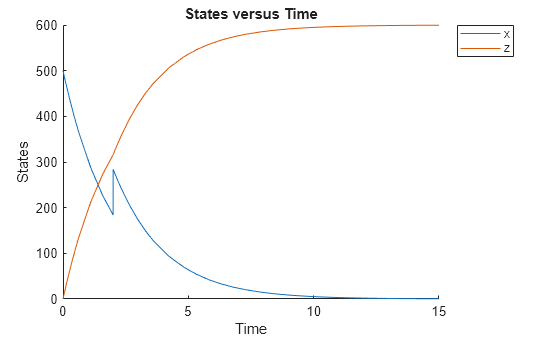

Figure contains an axes object. The axes object with title States versus Time, xlabel Time, ylabel States contains 2 objects of type line. These objects represent x, z.

Version History

Introduced in R2006a
