linlftfold

Combine linearization results from specified blocks and model

Syntax

lin = linlftfold(lin_fixed,blocksubs)

Description

lin = linlftfold(lin_fixed,blocksubs) combines the following linearization results into one linear model lin:

  • Linear model lin_fixed, which does not include the contribution of specified blocks in your Simulink® model.

    Compute lin_fixed using linlft.

  • Block linearizations for the blocks excluded from lin_fixed

    You specify the block linearizations in a structure array blocksubs, which contains two fields:

    • 'Name' is a character vector or string specifying the block path of the Simulink block to replace.

    • 'Value' is the value of the linearization for each block.

Examples

collapse all

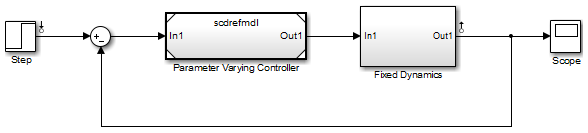

In this example, the scdtopmdl model contains two subsystems in the feedforward path.

  • Fixed portion, which contains everything except the Parameter Varying Controller model reference

  • Parameter Varying Controller model, which references the scdrefmdl model

Open the top-level model.

topmdl = 'scdtopmdl';
open_system(topmdl)

Linearize this model without the Parameter Varying Controller block.

io = getlinio(topmdl);
blocks = {'scdtopmdl/Parameter Varying Controller'};
sys_fixed = linlft(topmdl,io,blocks);

Linearize the controller model.

refmdl = 'scdrefmdl';
load_system(refmdl);
sys_pv = linearize(refmdl);

Combine the linearization results.

BlockSubs(1) = struct('Name',blocks{1},'Value',sys_pv);
