# kfoldLoss

Classification loss for observations not used for training

## Syntax

`L = kfoldLoss(obj)L = kfoldLoss(obj,Name,Value)`

## Description

`L = kfoldLoss(obj)` returns loss obtained by cross-validated classification model `obj`. For every fold, this method computes classification loss for in-fold observations using a model trained on out-of-fold observations.

`L = kfoldLoss(obj,Name,Value)` calculates loss with additional options specified by one or more `Name,Value` pair arguments. You can specify several name-value pair arguments in any order as `Name1,Value1,…,NameN,ValueN`.

## Input Arguments

 `obj` Object of class `ClassificationPartitionedModel`.

### Name-Value Pair Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside single quotes (`' '`). You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

`'folds'`

Indices of folds ranging from `1` to `obj``.KFold`. Use only these folds for predictions.

Default: `1:obj.KFold`

`'lossfun'`

Loss function, specified as the comma-separated pair consisting of `'LossFun'` and a built-in, loss-function name or function handle.

• The following lists available loss functions. Specify one using its corresponding character vector.

ValueDescription
`'binodeviance'`Binomial deviance
`'classiferror'`Classification error
`'exponential'`Exponential
`'hinge'`Hinge
`'logit'`Logistic
`'mincost'`Minimal expected misclassification cost (for classification scores that are posterior probabilities)
`'quadratic'`Quadratic

`'mincost'` is appropriate for classification scores that are posterior probabilities. All models use posterior probabilities as classification scores by default except SVM models. You can specify to use posterior probabilities as classification scores for SVM models by setting `'FitPosterior',true` when you cross-validate the model using `fitcsvm`.

• Specify your own function using function handle notation.

Suppose that `n` be the number of observations in `X` and `K` be the number of distinct classes (`numel(obj.ClassNames)`, `obj` is the input model). Your function must have this signature

``lossvalue = lossfun(C,S,W,Cost)``
where:

• The output argument `lossvalue` is a scalar.

• You choose the function name (`lossfun`).

• `C` is an `n`-by-`K` logical matrix with rows indicating which class the corresponding observation belongs. The column order corresponds to the class order in `obj.ClassNames`.

Construct `C` by setting ```C(p,q) = 1``` if observation `p` is in class `q`, for each row. Set all other elements of row `p` to `0`.

• `S` is an `n`-by-`K` numeric matrix of classification scores. The column order corresponds to the class order in `obj.ClassNames`. `S` is a matrix of classification scores, similar to the output of `predict`.

• `W` is an `n`-by-1 numeric vector of observation weights. If you pass `W`, the software normalizes them to sum to `1`.

• `Cost` is a `K`-by-`K` numeric matrix of misclassification costs. For example, ```Cost = ones(K) - eye(K)``` specifies a cost of `0` for correct classification, and `1` for misclassification.

Specify your function using `'LossFun',@lossfun`.

For more details on loss functions, see Classification Loss.

Default: `'classiferror'`

`'mode'`

A character vector for determining the output of `kfoldLoss`:

• `'average'``L` is a scalar, the loss averaged over all folds.

• `'individual'``L` is a vector of length `obj``.KFold`, where each entry is the loss for a fold.

Default: `'average'`

## Output Arguments

 `L` Loss, by default the fraction of misclassified data. `L` can be a vector, and can mean different things, depending on the name-value pair settings.

## Definitions

### Classification Loss

Classification loss functions measure the predictive inaccuracy of classification models. When comparing the same type of loss among many models, lower loss indicates a better predictive model.

Suppose that:

• L is the weighted average classification loss.

• n is the sample size.

• For binary classification:

• yj is the observed class label. The software codes it as –1 or 1 indicating the negative or positive class, respectively.

• f(Xj) is the raw classification score for observation (row) j of the predictor data X.

• mj = yjf(Xj) is the classification score for classifying observation j into the class corresponding to yj. Positive values of mj indicate correct classification and do not contribute much to the average loss. Negative values of mj indicate incorrect classification and contribute to the average loss.

• For algorithms that support multiclass classification (that is, K ≥ 3):

• yj* is a vector of K – 1 zeros, and a 1 in the position corresponding to the true, observed class yj. For example, if the true class of the second observation is the third class and K = 4, then y*2 = [0 0 1 0]′. The order of the classes corresponds to the order in the `ClassNames` property of the input model.

• f(Xj) is the length K vector of class scores for observation j of the predictor data X. The order of the scores corresponds to the order of the classes in the `ClassNames` property of the input model.

• mj = yj*f(Xj). Therefore, mj is the scalar classification score that the model predicts for the true, observed class.

• The weight for observation j is wj. The software normalizes the observation weights so that they sum to the corresponding prior class probability. The software also normalizes the prior probabilities so they sum to 1. Therefore,

`$\sum _{j=1}^{n}{w}_{j}=1.$`

The supported loss functions are:

• Binomial deviance, specified using `'LossFun','binodeviance'`. Its equation is

`$L=\sum _{j=1}^{n}{w}_{j}\mathrm{log}\left\{1+\mathrm{exp}\left[-2{m}_{j}\right]\right\}.$`
• Exponential loss, specified using `'LossFun','exponential'`. Its equation is

`$L=\sum _{j=1}^{n}{w}_{j}\mathrm{exp}\left(-{m}_{j}\right).$`
• Classification error, specified using `'LossFun','classiferror'`. It is the weighted fraction of misclassified observations, with equation

`$L=\sum _{j=1}^{n}{w}_{j}I\left\{{\stackrel{^}{y}}_{j}\ne {y}_{j}\right\}.$`

${\stackrel{^}{y}}_{j}$ is the class label corresponding to the class with the maximal posterior probability. I{x} is the indicator function.

• Hinge loss, specified using `'LossFun','hinge'`. Its equation is

`$L=\sum _{j=1}^{n}{w}_{j}\mathrm{max}\left\{0,1-{m}_{j}\right\}.$`
• Logit loss, specified using `'LossFun','logit'`. Its equation is

`$L=\sum _{j=1}^{n}{w}_{j}\mathrm{log}\left(1+\mathrm{exp}\left(-{m}_{j}\right)\right).$`
• Minimal cost, specified using `'LossFun','mincost'`. The software computes the weighted minimal cost using this procedure for observations j = 1,...,n:

1. Estimate the 1-by-K vector of expected classification costs for observation j

`${\gamma }_{j}=f{\left({X}_{j}\right)}^{\prime }C.$`

f(Xj) is the column vector of class posterior probabilities for binary and multiclass classification. C is the cost matrix the input model stores in the property `Cost`.

2. For observation j, predict the class label corresponding to the minimum, expected classification cost:

`${\stackrel{^}{y}}_{j}=\underset{j=1,...,K}{\mathrm{min}}\left({\gamma }_{j}\right).$`
3. Using C, identify the cost incurred (cj) for making the prediction.

The weighted, average, minimum cost loss is

`$L=\sum _{j=1}^{n}{w}_{j}{c}_{j}.$`
• Quadratic loss, specified using `'LossFun','quadratic'`. Its equation is

`$L=\sum _{j=1}^{n}{w}_{j}{\left(1-{m}_{j}\right)}^{2}.$`

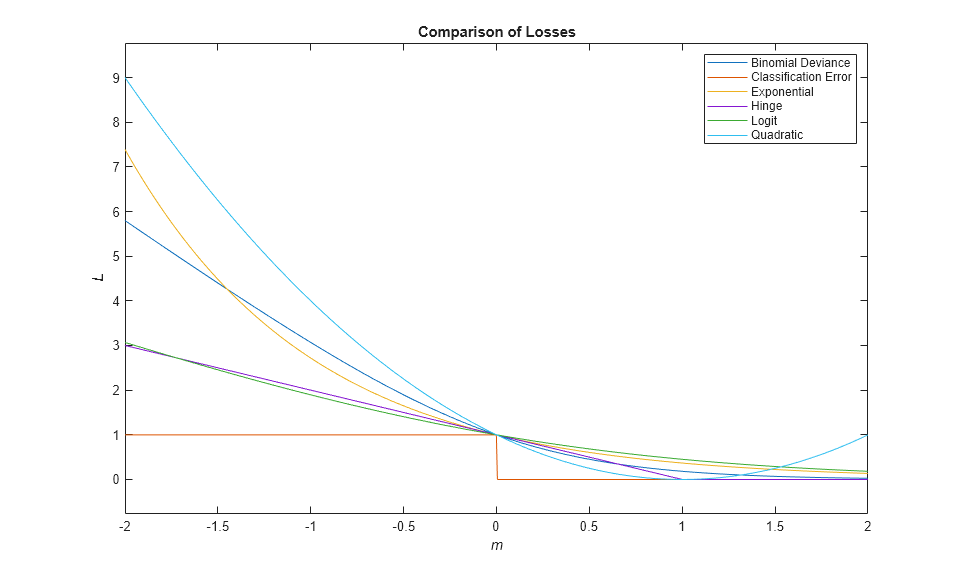

This figure compares some of the loss functions for one observation over m (some functions are normalized to pass through [0,1]).

## Examples

expand all

Load the `ionosphere` data set.

```load ionosphere ```

Grow a classification tree.

```tree = fitctree(X,Y); ```

Cross-validate the classification tree using 10-fold cross-validation.

```cvtree = crossval(tree); ```

Estimate the cross-validated classification error.

```L = kfoldLoss(cvtree) ```
```L = 0.1111 ```
