# stereoAnaglyph

Create red-cyan anaglyph from stereo pair of images

## Syntax

``J = stereoAnaglyph(I1,I2)``

## Description

example

````J = stereoAnaglyph(I1,I2)` combines images `I1` and `I2` into a red-cyan anaglyph. When the inputs are rectified stereo images, you can view the output image with red-blue stereo glasses to see the stereo effect.```

## Examples

collapse all

Load parameters for a calibrated stereo pair of cameras.

`load('webcamsSceneReconstruction.mat')`

Load a stereo pair of images.

```I1 = imread('sceneReconstructionLeft.jpg'); I2 = imread('sceneReconstructionRight.jpg');```

Rectify the stereo images.

`[J1, J2] = rectifyStereoImages(I1, I2, stereoParams);`

Create the anaglyph.

`A = stereoAnaglyph(J1, J2);`

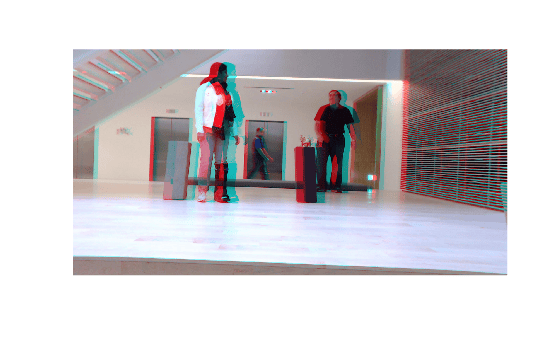

Display the anaglyph. Use red-blue stereo glasses to see the stereo effect.

`figure; imshow(A);`

## Input Arguments

collapse all

Input image `I1`, specified as an M-by-N-by-3 truecolor image or an M-by-N 2-D grayscale image. `I1` and `I2` must be real, finite, and nonsparse, and the images must be the same size. If the images are not the same size, use `imfuse` to pad the smaller image dimension with zeros before creating the anaglyph.

Data Types: `single` | `double` | `int16` | `uint8` | `uint16` | `logical`

Input image `I2`, specified as an M-by-N-by-3 truecolor image or an M-by-N 2-D grayscale image. `I1` and `I2` must be real, finite, and nonsparse, and the images must be the same size. If the images are not the same size, use `imfuse` to pad the smaller image dimension with zeros before creating the anaglyph.

Data Types: `single` | `double` | `int16` | `uint8` | `uint16` | `logical`

## Output Arguments

collapse all

Stereo anaglyph output image, returned as an M-by-N-by-3 truecolor image. Output image `J` is the same size as input images `I1` and `I2`.

Data Types: `single` | `double` | `int16` | `uint8` | `uint16` | `logical`
