Pulse Generator with variable Frequency
by Riccardo
11 Jun 2008
(Updated 12 Jun 2008)
This block generate a variable pulse with frequency, phase, offset and amplitude editables.
|
Watch this File
|
| File Information |
| Description |

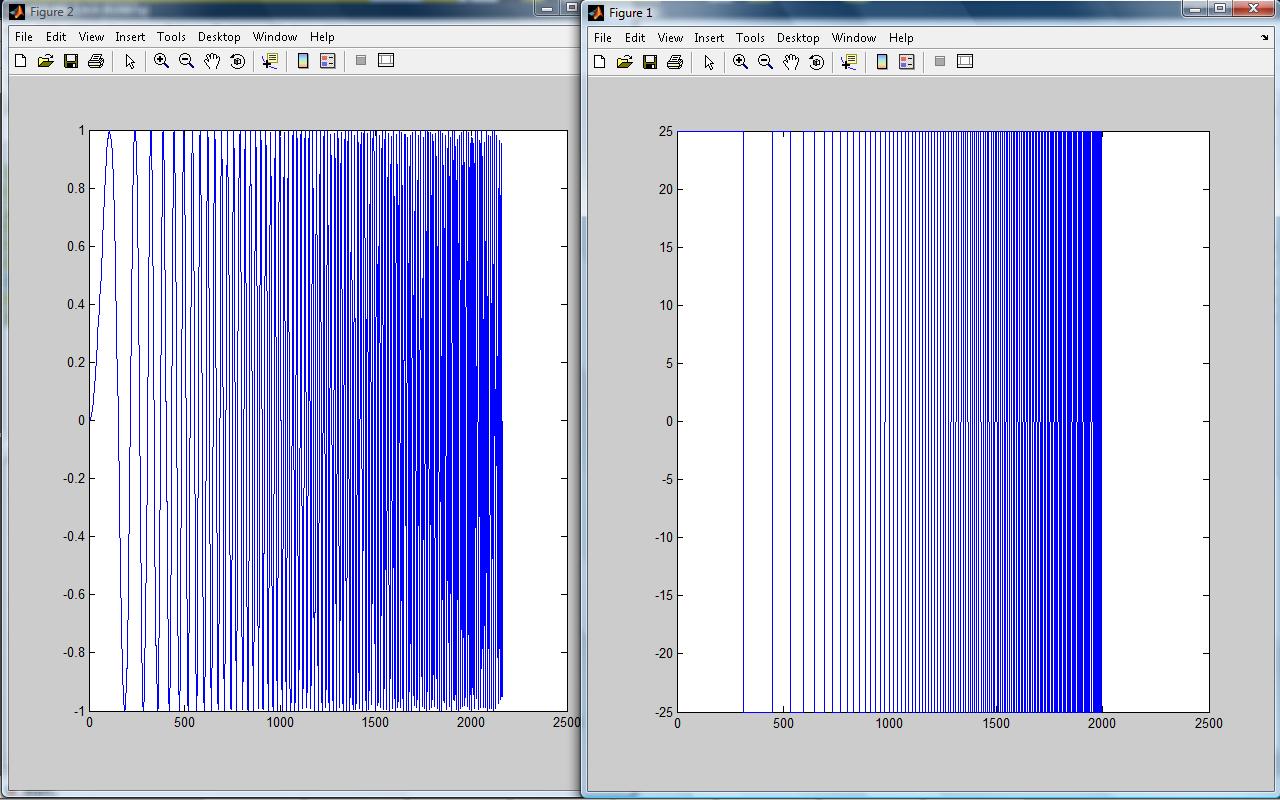

This block generates a pulsed signal with assigned amplitude and variable frequency.
You must connect the input to sinusoidal signal generator.
The block provide convert the sinusoidal signal to quadratic output with amplitude and frequency variable. |
| Required Products |
Simulink
|
| MATLAB release |
MATLAB 7.4 (R2007a)
|
|
