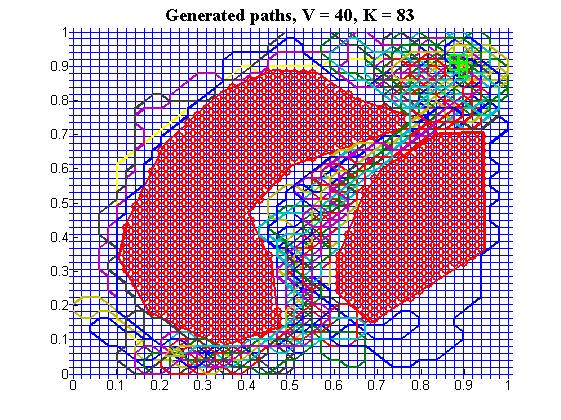

image thumbnail

2D random paths generator integrating leg's contraints

by



14 Aug 2008 (Updated )

Generates random 2D leg'paths from departure to arrival integrating leg's constraints

| Watch this File

File Information
Description

Generates random 2D-paths between start and finish nodes according to densities distribution given by matrix C with leg's contrainsts defined by the adjacency matrix I.

P = path_generator(start , finish , I , [C] , [K] , [V] , [delta]);

Inputs
------

start Index of starting points (r x 1) where start(i) = 1,...,R, R = 8(Nx-2)(Ny-2) + 10((Nx-2)+(Ny-2)) + 12,
                    where Nx, Ny denote the number of nodes in x and y axis respectivly.
finish Index of arrival points (q x 1) where finish(i) = 1,...,R
I Index of neigbourds (D x R), where D = 8
C Probabilities matrix (D x R x L) such that sum(C,1) = 1 (default C is uniform pdf)
K Number of path's leg (at least the number of the shortest path, default K = 100)
V Number of path's to generate (default V = 1)
delta Transition legs'angles constraints matrix (D x D), i.e. delta(p_{k}|p_{k-1}) (default delta = ones(D,D));

Ouputs
------

P Path leg's indexes(K x L x V)

To Compile
----------

Run mexme_path_generator2 to complile mex files on you plateform

Run demo "test_path_generator2.m"

Ref : S. Paris, J-P Le Cadre, ‚ÄúPlanification for Terrain-Aided Navigation‚ÄĚ, in: IEEE FUSION 2002 Conference, Annapolis, USA, July 2002

Acknowledgements

Inpoly Mex File and Dijsktra Path Finder inspired this file.

Required Products Image Processing Toolbox
MATLAB release MATLAB 7.5 (R2007b)
Other requirements A C compiler.
Tags for This File   Please login to tag files.
Please login to add a comment or rating.
Updates
16 Mar 2009

-add mexme_path_generator2
-update djikstra and inpoly algorithm

21 Nov 2011

- Update inpoly and dijkstra
- Minor comestic changes and should be compatible with Linux/GCC
- Updade demo file
