Create From Blocks

5.0 | 4 ratings Rate this file 18 Downloads (last 30 days) File Size: 2.84 KB File ID: #25736 Version: 1.0
image thumbnail

Create From Blocks



Create 'From' blocks with same appearance and properties of 'Goto' blocks selected in the model

Editor's Notes:

This file was selected as MATLAB Central Pick of the Week

| Watch this File

File Information

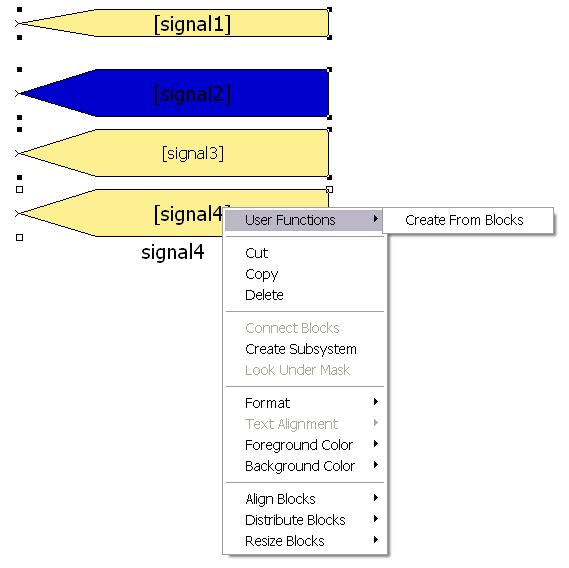

Select your Goto Simulink block, right click and select "create From blocks".
 From block will be created with same color, orientation, dimensions, font and name of corresponding Goto block.
If you have created this block by copy&paste it's probable that block name doesn't correspond to its tag, so block name will be changed according to the tag.
If one or more corresponding From blocks already exist their appearance will be updated, but no other blocks will be created.


This file inspired Add Simulink Blocks From A Given Model File With Context Menu.

Required Products Simulink
MATLAB release MATLAB 7.5 (R2007b)
