# labelEdgeSubPlots

### Rob Campbell (view profile)

09 Jan 2010 (Updated )

Automatically apply x and y labels to subplots only along the edges.

### Editor's Notes:

This file was selected as MATLAB Central Pick of the Week

File Information
Description

function H=labelEdgeSubPlots(xl,yl,onlyBottom)

Purpose
If all subplots have the same quantities on the x and y axes then
there's no point labeling all of them. Often it looks neater to
simply have y labels only on the plots along the left hand
edge and x labels only on the plots along the bottom. This
function does this automatically for the current figure.

Inputs
xl - a string specifying what to label the x axes.
yl - a string specifying what to label the y axes.
onlyBottom - by default this is zero and the function adds an
x-axis to appropriate plots from the penultimate row
if the bottom row of plots is incomplete. set
onlyBottom to 1 to suppress this behaviour.
* in addition: onlyBottom can be a vector of axis handles to
be processsed.
Outputs
H - a structure containing handles to the x and y axis labels

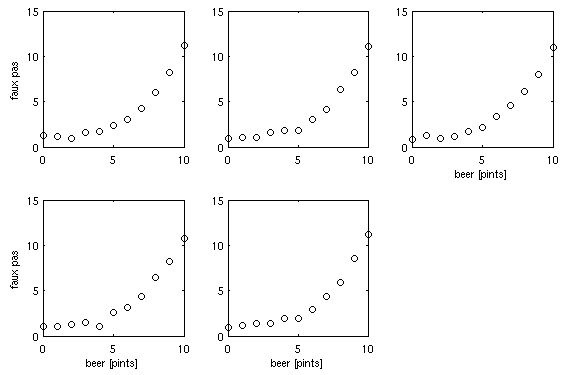

Example
clf
for i=1:5
subplot(2,3,i)
x=[0:10]; y=1+0.01*x.^3+randn(size(x))*0.2;
plot(x,y,'ok'), xlabel('will be removed')
end

H=labelEdgeSubPlots('beer [pints]','faux pas');
%or:
H=labelEdgeSubPlots('beer [pints]','faux pas',1);
%One can also do:
set(H.xlabels,'color','red','fontweight','bold')

%proccess only some subplots
ax=[];
for i=1:25
subplot(5,5,i), box on
if mod(i,5)==1, ax=[gca,ax]; end
end
labelEdgeSubPlots('X','Y',ax);

Rob Campbell - January 2009

MATLAB release MATLAB 7.8 (R2009a)
Tags for This File   Please login to tag files.
 Please login to add a comment or rating.
Comments and Ratings (11)
10 Mar 2015 Paul

### Paul (view profile)

Rob: Very nice, thanks. Paul

Comment only
08 May 2012 Hsuan-Chao Chiu

### Hsuan-Chao Chiu (view profile)

Ya, the problem is my data is pairwise interaction so need to do xlabel and ylabel with 'A', 'B', 'C' respectively.

pie chart need to turn axis on to show xlabel, but it will also show axis line.

set 'Xtick' to [] removes the tick, but it still preserves the black axis line.

set 'XColor' into 'w' makes line invisible, but will also make the xlabel into white.

just wanna share my current finding.

And very useful code
rate it now :)

08 May 2012 Rob Campbell

### Rob Campbell (view profile)

I hadn't thought of pie charts since they don't have x and y axes. I think pie charts might require a more customised solution.

Comment only
08 May 2012 Hsuan-Chao Chiu

### Hsuan-Chao Chiu (view profile)

Dear Rob,

This is excellent, but how do I make it work on pie chart?

Angus

Comment only
21 Dec 2011 sharsad

### sharsad (view profile)

Great function! thanks

Comment only
13 Jul 2011 Yuri K

### Yuri K (view profile)

Nice function. Thanks!

15 Jun 2010 GERMÁN

### GERMÁN (view profile)

thank you very much!!!!

Comment only
15 Jun 2010 Rob Campbell

### Rob Campbell (view profile)

Easy:
H=labelEdgeSubPlots('X','WALL');
set(H.ylabels(1),'String','CENTRE')

Comment only
15 Jun 2010 GERMÁN

### GERMÁN (view profile)

yes, I mean different rows should have different y labels. I have two rows and six columns.The top row has the name of "wall", the bottom row has the name of "center."
I like that "wall" and "center" appear only in the first colunma (ylabel).

if i<12 && mod(i,2)==1
subplot(2,6,(i/2+0.5));
loglog(freq([1:longi(i)],i),power([1:longi(i)],i),'b-'...
,freq([1:longi(i)],i),powerfit([1:longi(i)],i),'k-');
L2 = ['h = ' num2str(-B) ' m'];
L3 = ['m = ' num2str(a1,3)];
title({L2;L3},'FontSize',8);
elseif i>=12 && mod(i,2)==0
subplot(2,6,(i/2+1));
loglog(freq([1:longi(i)],i),power([1:longi(i)],i),'b-'...
,freq([1:longi(i)],i),powerfit([1:longi(i)],i),'k-');
L3 = ['m = ' num2str(a1,3)];
title({L3},'FontSize',8);
end

Best regards,

Comment only
15 Jun 2010 Rob Campbell

### Rob Campbell (view profile)

Top and bottom of what? Do you mean different rows should have different y labels? If so, that is beyond the scope of this function because different people will have different requirements. However, I the function returns the handles to the x and y labels. It would be trivial for you to use those handles to further modify your sub-plots as desired. I think this is the "correct" way to do things.

Comment only
15 Jun 2010 GERMÁN

### GERMÁN (view profile)

Dear Rob

how would be the case: ylabel different in top and bottom in the subplot??

Updates
12 Jan 2010 1.1

Now skips axes which are Matlab-generated legends or colorbars. Please let me know if it gets confused by other figure child elements.

12 Jan 2010 1.2

Returns label handles.
3rd input can now also be a vector of axis handles to be labeled.

22 Jan 2010 1.3

Add H1 line

11 Jul 2012 1.5

Fixed error in one of the exampled.

11 Jul 2012 1.6

And another correction to the help...
