This creates a new figure containing subplots of other currently open figures including all non-colorbar axes in the figure (i.e. including subplots).

example: i have figures 12 15 18 open. and I want a montage with 12 and 15 on the first line and 18 on the next.

mfig = MontageFigures([12 15 18], 2,2)

where the horizontal length is the first 2
vertical length is the second 2. This will leave the 4th subplot (2,2) empty.

mfig is the handle to the new figure.

This is similar to the code figs2subplots, but after very few attempts, I couldn't get that to work. So here's something that should work. And it's very simple.

You specify the axis properties that you'd like copied over from the old figures at the beginning of the file. I have a prototype set included.

The code simply copies all of the children of each figures' axes and puts them as children of the subplot axes. Then copies the specified properties to the subplot axes.

In the code you can now adjust size/position of new fig, margins, spacing between subplots. You can also set whether to add ticks and labels only to perimeter plots, if you have many images with the same limits/labels.

If you want to do this with unopened files use the montagefigurefiles(columns,rows), and you will be prompted for the files to use.

If you don't like this script, you can try using:
which I didn't bother to look at, but I'm open to it being better. :)

MATLAB release MATLAB 7.10 (R2010a)
Tags for This File   Please login to tag files.
Please login to add a comment or rating.
Comments and Ratings (6)
15 Feb 2015 Jessika

Pretty nice, easy to use, and works pretty well.

26 Nov 2014 Hesh

Hesh (view profile)

Thank you Nick Sinclair! The first user-created function I've used and it works very well!

20 Jun 2013 Zoé

Zoé (view profile)

Just tried to read the help text:

>> help montagefigures
by Nick Sinclair (nws5@pitt.edu) Jul 08, 2010

So I guess this still needs some work...

Comment only
20 Jun 2013 Zoé

Zoé (view profile)

29 Aug 2010 jhh

jhh (view profile)

It seems to damage my legends. Otherwise works OK.

Comment only
09 Jul 2010 Mark Hayworth

Mark Hayworth (view profile)

A screenshot would be SO helpful.

Comment only
07 Jul 2010

just verified it works fine with 7.10 2010a.

08 Jul 2010

Can now adjust
1) size/position of new figure
2) spacing between subplots
3) margins
4) whether to label only perimeter subplots.
These options must be changed in the code, not as parameters to the code. Just too lazy to add that.

08 Jul 2010

Added montagefigurefies.m AND ability to replot the subplots of other figures.

08 Jul 2010

Fixed problem of copying over legends as separate axes, and added ability to copy legends in an appropriate way.

09 Jul 2010

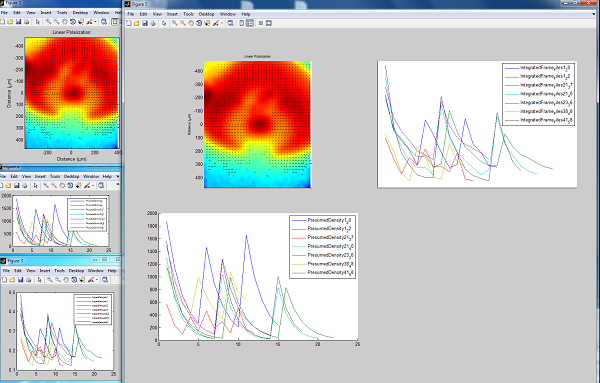

added screenshot
