Optical Fibre Toolbox

4.25

4.2 | 6 ratings Rate this file 137 Downloads (last 30 days) File Size: 518 KB File ID: #27819

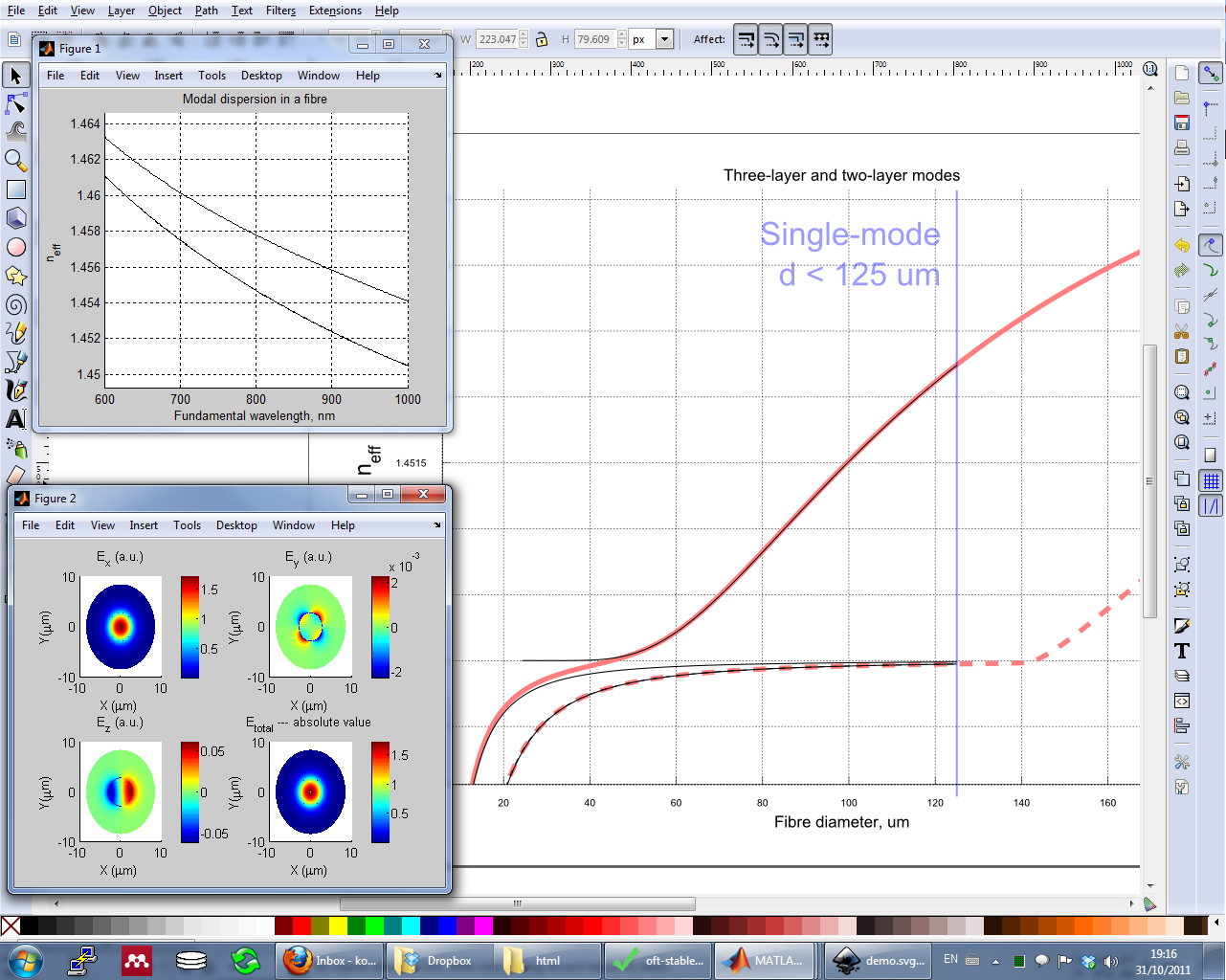

image thumbnail

Optical Fibre Toolbox

by



02 Jun 2010 (Updated )

Simulation of optical fiber modes

| Watch this File

File Information
Description

Optical Fibre Toolbox (OFT) provides functions for fast automatic calculation of guided modes in simple optical fibres. Developed with tapered microfibres (aka nanofibres) in mind. Exact solutions for weak and strong guidance cases are provided. Material dispersion is taken into account.

Main functionality:
- Find the guided modes.
- Calculate the effective refractive index of each mode for the given diameter and wavelength or versus variable diameter or wavelength (modal dispersion).
- Calculate the electric and magnetic fields of the modes (only two-layer modes).
- Find phase-matching points for harmonic generation in fibres.

A number of additional useful functions is provided.

For installation instruction, see install.txt.
For examples of use, see the demo/ directory.
For the full list of functions, see Contents.m.
For the list of authors, see authors.txt.

REVISIONS
==== Version 2.1 (2011-12-08) ====
Bug fix:
- Erdogan modes didn't work for neff vs. wavelength --- fixed.
- Several small stability improvements.

New functionality:
- skipmodes parameter can be specified in mode task. The listed modes will be found by buildModes but not traced
- New materials in refrIndex.

==== Version 2.0 (2011-10-31) ====
This version includes several major changes:
1. First of all, starting with this release OFT supports three-layer structures (double-clad or core-cladding-surrounding). See demo/tutorial3ls.m.
NOTE: The field of three-layer modes cannot yet be calculated.
2. Material refractive index (function refrIndex.m) can now be calculated taking temperature into account.
3. An attempt to start documenting the toolbox is made. Type 'doc contents' to see a full list of functions or 'doc functionname' to see documentation for a specific
function.
4. Also the first tutorial created --- demo/tutorial3ls.m.
5. Starting with this release, the latest stable version of the code will be available at http://code.google.com/p/optical-fibre-toolbox/. This is mainly done to speed up the process of publishing debug versions and to keep track of the history of releases.

Other changes:
- General code clean up.
- V-parameter calculation added.
- White sector in displayField2.m suppressed in a more correct way.
- Many other small improvements and corrections.

==== 2010-06-12 ====
Several bugs in field display corrected.

==== 2010-06-02 ====
The first public release of OFT (version 1.0). Only two layer structures are supported.

MATLAB release MATLAB 7.13 (R2011b)
Tags for This File   Please login to tag files.
Please login to add a comment or rating.
Comments and Ratings (22)
06 Feb 2013 Kotya Karapetyan

I apologize that I cannot answer each comment here. The two-layer model implemented in the OFT has been thoroughly checked numerous times. It has been used for a couple of years now to compare against our results in various experiments. Plus it was used to verify the three-layer model, whenever possible. No mistakes have been found in the recent time, the two-layer code is stable. Therefore I am pretty sure there are no mistakes in that part of the code. Mistakes (typos) do occur in books and papers however. Also, different notations and/or assumptions can be made, e.g. concerning the coordinate system or polarisation direction.

17 Jan 2013 Jing

I think there might be a mistake.

In the file modeField.m
according to Snyder's book
m is odd, it is HE mode
f=sin(nu*phi); g=cos(nu*phi);

But in your code,
f = @(nu,phi) cos(nu*phi);
g = @(nu,phi) -sin(nu*phi);

19 Nov 2012 Kotya Karapetyan

Robert, I have just downloaded OFT from this page and run demo/oftDemo.m with Matlab 2009b and 2012b. In both cases it has completed without problems.

16 Nov 2012 Robert
16 Nov 2012 Robert

I tried out the demo oftDemo without modifications. It found modes and showed me the field profiles, but it also claimed that there are "traceMode WARNING: too little amount of points in the mode" and the dispersion curves that i got were empty.

16 Nov 2012 Robert
24 Apr 2012 Kotya Karapetyan

harsimran, repeating the same question doesn't really help. Unless you provide details on what needs to be calculated, I cannot help you. If you don't know yourself, OFT will not be of help, neither will be Matlab.

23 Apr 2012 harsimran kaur

O want to implement orthogonal frequency division multiplexing in optical fiber using matlab

22 Apr 2012 Kotya Karapetyan

harsimran, I am afraid I do not understand your question. What do you mean by "implementing OFDM" with OFT? What exactly do you need to calculate?

21 Apr 2012 harsimran kaur

Dear sir

Could we implement optical ofdm with optical toolbox.Kindly help me

20 Apr 2012 Kotya Karapetyan

Mastel, you cannot "launch" the toolbox, it's a set of functions. There are a couple of examples in the demo folder.

19 Apr 2012 Mastel ISS 2011

Please i just want to know how to launch the OFT through matlab on my computer!

Thanks

11 Oct 2011 Sean (Xiao)
19 Sep 2011 Kotya Karapetyan

@choon soon: Sure. Just change the task for the modeField function in oftDemo.m.

18 Sep 2011 Bryan Wong

Kotya:I have one doubt in this toolbox. We can view the field intensity of Hybrid mode. Can we use this toolbox to view the field configuration of TE and TM mode?

24 Dec 2010 Kotya Karapetyan

@Samuel: All hybrid modes are the solution of the same equation. The first solution is HEm1, second EHm1, third HEm2, fourth EHm2 etc. Therefore to know which exactly hybrid mode you have you just need to know the modal indices. I agree that this is not a very beautiful approach and will implement the direct HE/EH specification in the update.

18 Dec 2010 Samuel Sel

Thanks for the toolbox. One doubt, in the HYBRID mode stated in the program, how are you differentiate whether it is HE or EH mode?

26 Nov 2010 Kotya Karapetyan

Nicholas, this becomes more a general Matlab discussion than anything related to the toolbox, so if you will have further problems you should probably ask elsewhere. To answer your current question: you are misusing the function handles (in the line "r=@(y)...". Please take a look in the Matlab manual.

25 Nov 2010 Nicholas Tan

@Kotya Karapetyan :
Thank you....it really helps me a lot. However, when i proceed into more complex equations, i can't really get the roots.

Eg:
JRa= @(y) besselj(1,y);
JR1a= @(y) besselj(0, y) - besselj(1, y)./y;

JRb= @(y) besselj(1,z);
JR1b= @(y) besselj(0, z) - besselj(1, z)./z;

Yb= @(y) bessely(1,z);
Y1b= @(y) bessely(0, z) - bessely(1, z)./z;

Ya= @(y) bessely(1,y);
Y1a= @(y) bessely(0, y) - bessely(1, y)./y;

r=@(y) y.*((JR1a.*Y1b-JR1b.*Y1a)./(JRa.*Y1b-JR1b.*Ya));
u = FindRoot(r, [1 10], 0.5)

Some errors occurred:

??? Undefined function or method 'times' for input arguments of type 'function_handle'.

Error in ==> @(y)y.*((JR1a.*Y1b-JR1b.*Y1a)./(JRa.*Y1b-JR1b.*Ya))

Error in ==> FindRoot at 51
G = g(X);

Could you please help me to identify my mistakes? Thank you in advance.

24 Nov 2010 Kotya Karapetyan

@Nicholas Tan: You can, but I believe there is an error in your code. The correct code would read:

J1 = @(x) besselj(0, x) - besselj(1, x) ./ x;
J = @(x) besselj(1, x);
f = @(x) x .* (J1(x) ./ J(x));
r = FindRoot(f, [0 10], 0.5)

23 Nov 2010 Nicholas Tan

i saw a function FindRoot in the program. Can i use that function to find the roots of the bessel function?

Eg:
syms x;
J1=besselj(0, x) - besselj(1, x)./x;
J=besselj(1,x);
f=@(x)x.*(J1/J);
r = FindRoot(f,[0 10],0.5)

From the simulation above, i found an error stated:
??? Error using ==> FindRoot at 86
FINDROOT: Reached max value of ATTEMPT (10) before root was found

10 Aug 2010 balveer painam
Updates
12 Jun 2010

Bug in displayField2.m corrected: it was plotting r-, phi- and z-components instead of x-, y- and z-ones.

01 Nov 2011

updates

02 Nov 2011

Test 2011-11-02 14:00 (CET)

02 Nov 2011

Description, created using, copyright updated.

02 Nov 2011

Tags updated.

08 Dec 2011

A few bugs fixed, minor additional functionality.
