Generalised question dialog (questdlg)

A question dialog (questdlg) alternative

Description

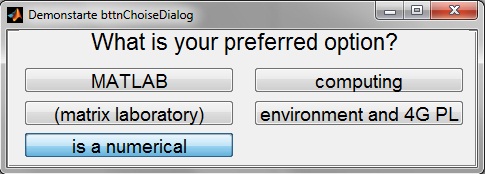

Create and open a push button dialog box, which is a generalized version of a question dialog box (called by questdlg). User can enter any number of input options (buttons)for one to choose from, as opposed to questdlg, where only 2 or 3 options are supported. User can also set the buttons ordering (columns, rows). Dialog will attempt to set parameters to optimally present button text.

• Required Products: MATLAB
• MATLAB release: MATLAB 7.12 (R2011a)

[Louis Vallance]

Dear Nikolay S. and Dan K.,

A very happy new year to you two also. After Dan's modification I am having no problem running this .m file. It has been hugely helpful, so my thanks to you both.

Louis

[Nikolay S.]

Good evening and Happy New Year Dan K and Louis Vallance. Thank you for your comments. it seems you both are right, while I was wrong. indeed this failed to work. Dan K proposal fixes the problem. My compliments

[Louis Vallance]

Hi again.

I tested the example provided in your code and iSel is 3 (the default selection) regardless of which button is pressed. Is there a fix for this, cause otherwise the program doesn't work.

Cheers

[Louis Vallance]

Hi Nikolay,

With the old questdlg I could just say variable=questdlg(inputs) and the button I pressed would be assigned to variable. With this function it doesn't seem to be working.

[Dan K]

Hi Nikolay,

Thanks for responding. I am running R2012a(7.14.0.739). What example are you using?

For testing, I called both the FEX code, and the modified code with the following syntax:

>> selectedIndex=bttnChoiseDialog({'str1', 'str2', 'Cancel'}, 'Selection', 'Cancel','Which str?')

With the original code, selectedIndex is set to 3 for pushes on either str1 or str2 (the default button, "cancel" is at index #3 and has it's "value" property set to true, which is then found in the function line: "choise=find( cell2mat( get(buttnHndl, 'Value') ) ); "). The modified code returns 1 for str1 and 2 for str2 (using the handle of the object that executed the callback, it does not have to find a true or false value).

[Nikolay S.]

Good evening Dan. Thank you for your comment. As far as I can see you've changed the callback function, replacing 'uiresume(gcbf)' with your my_bttnCallBack service function.
I've tried your code with my exmaple, but it resulted in an error:
"Error in bttnChoiseDialog>my_bttnCallBack (line 201)
choise=find(strcmp(dlgOptions, get(hObject,'String')));

Error using waitfor
Error while evaluating uicontrol Callback"

My original code seems to work fine for the given example. i'm using Matlab 2011b. What version do you run?
Best regards.

[Dan K]



[Dan K]

The end of this function was not working as I was using it, so I changed this:

for iBttn=1:nButtons
[iRow, iCol]=ind2sub([bttnRows, bttnCols],iBttn);
currBttnHeigth=figH-titleSps-iRow*interBttnStpH;
currBttnLeft=(iCol-1)*interBttnStpW+spaceW+(interBttnStpW-bttnW-spaceW)/2;

buttnHndl(iBttn) = uicontrol( buttonGroup, 'Style', 'pushbutton',...
'FontUnits', 'normalized', 'Units', 'characters', 'FontSize', bttnFontSize,...
'String', dlgOptions{iBttn}, 'Callback', 'uiresume(gcbf)',...
'Position', [currBttnLeft , currBttnHeigth, bttnW, bttnH] );
end
set(buttnHndl(iDefOption), 'Value', 1); % set default option
set(cat(1, buttnHndl, titleH, buttonGroup),'Units', 'normalized')

uiwait(menuFigH); % wait untill user makes his choise, or closes figure

choise=find( cell2mat( get(buttnHndl, 'Value') ) );
delete(menuFigH);

to

for iBttn=1:nButtons
[iRow, iCol]=ind2sub([bttnRows, bttnCols],iBttn);
currBttnHeigth=figH-titleSps-iRow*interBttnStpH;
currBttnLeft=(iCol-1)*interBttnStpW+spaceW+(interBttnStpW-bttnW-spaceW)/2;
buttnHndl(iBttn) = uicontrol( buttonGroup, 'Style', 'pushbutton',...
'FontUnits', 'normalized', 'Units', 'characters', 'FontSize', bttnFontSize,...
'String', dlgOptions{iBttn}, 'Callback', @my_bttnCallBack,...
'Position', [currBttnLeft , currBttnHeigth, bttnW, bttnH]);
end
set(buttnHndl(iDefOption), 'Value', 1); % set default option
set(cat(1, buttnHndl, titleH, buttonGroup),'Units', 'normalized')

uiwait(menuFigH); % wait untill user makes his choise, or closes figure

delete(menuFigH);

function my_bttnCallBack(hObject, ~)
choise=find(strcmp(dlgOptions,get(hObject,'String')));
uiresume(gcbf)
end

end
