A short introduction on using model based design approach in Embedded System

by



This document is an introduction on using based model based design for embedded control systems.

| Watch this File

File Information
Description

Simulink & Stateflow are used to design the embedded control system algorithms.
Using Mathworks products Simulink

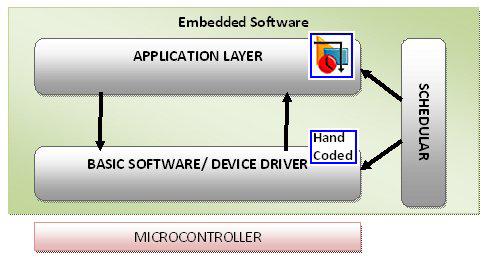

coder (formerly Real time Workshop) and Embedded coder we can generate produnction quality code which can be integrated into an existing software framework that consists of an operating system or schedular, device drivers and support utilities.

This document supported by some dummy codes briefs about how to integrate the model generated code with low level code and schedular.

Required Products Embedded Coder
Simulink
Stateflow
Stateflow Coder
MATLAB
MATLAB release MATLAB 7.13 (R2011b)
