Description

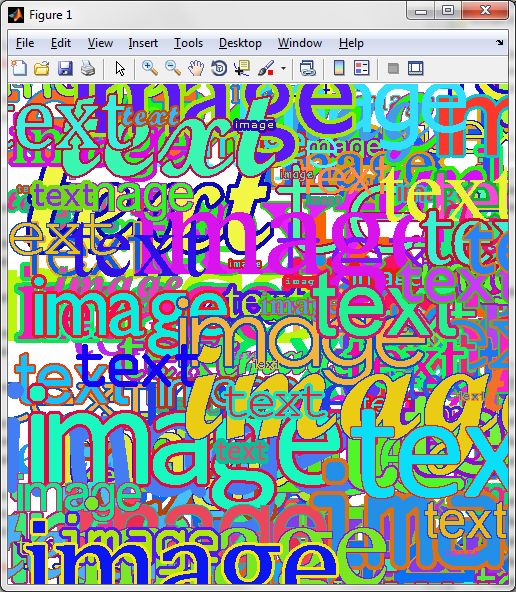

Sometimes it's nice to be able to place text on an image and know precisely where it will render irrespective of the figure size and shape and other whims of the text() function. This submission achieves that by directly overwriting part of the image matrix with rasterized text generated using bitmapped fonts. It allows the use of any system font that text() will take. Text size, colour and position can also be controlled.

This code can undoubtedly be tweaked (or maybe just rewritten) to produce more aesthetically pleasing results. Feel free to build upon it!

Required Products MATLAB
