The Marine Visualization Toolbox

5.0

5.0 | 9 ratings Rate this file 44 Downloads (last 30 days) File Size: 3.22 MB File ID: #4217
image thumbnail

The Marine Visualization Toolbox

by



04 Dec 2003 (Updated )

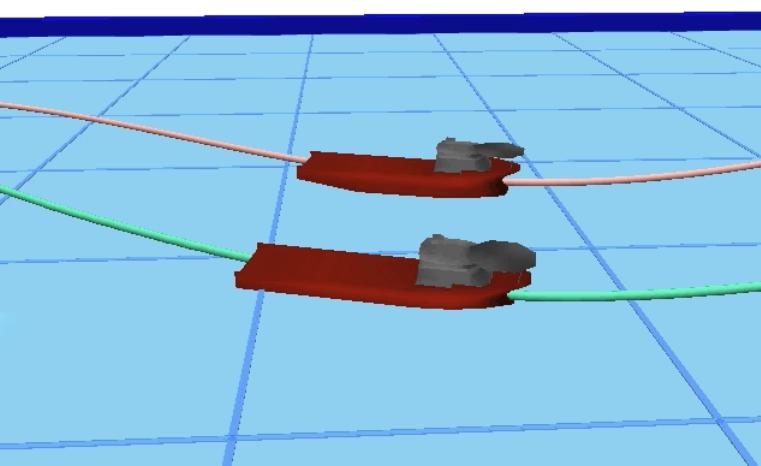

The toolbox creates 3D animations from 6 DOF data

| Watch this File

File Information
Description

The toolbox displays up to 6 DOF data from simulations, experiments or measurements of marine control systems as 3D animations. The animations may be viewed on-line or saved to AVI-files.

3D models of some marine vessels are included. By following the MVT guidelines custom models may be used with the toolbox. This is described in a tutorial.

Help on all functions and two tutorials are included to get you started, and to provide information for those who want to customize the functionality.

Required Products Simulink 3D Animation
MATLAB release MATLAB 6.5 (R13)
Tags for This File   Please login to tag files.
Please login to add a comment or rating.
Comments and Ratings (10)
08 Apr 2014 Pavel M.

Hello dear Andreas Lund Danielsen,
Attn.: One that succ. to install the toolbox,
What I do? - I run the MVTInstall.m from the same folder as the other files as per Installation.txt and I get:

>> MVTinstall
Installing the Marine Visualization Toolbox, version 1.0

Searching for installed components...
No components were found.

Installing toolbox functions:
Error using mkdir
Access is denied.

Error in extractArchive>extractArchiveEntry (line 74)
mkdir(parentDir)

Error in extractArchive (line 49)
files = extractArchiveEntry( ...

Error in unzip (line 98)
files = extractArchive(outputDir, api, mfilename);

Error in MVTinstall (line 114)
unzip('MVT_toolbox.zip', mvt_folder);

Error in MVTinstall (line 30)
MVTinstall('toolbox');

Please respond, what is wrong ? How to fix and install finally the toolbox ?

07 Oct 2011 Mr Smart
23 Oct 2010 Simulink Dude
08 Jun 2010 Pawan Mandawat

I was trying to install it but it was giving me a couple errors which are like....
??? Error using ==> mkdir
Access is denied.

Error in ==> extractArchive>extractArchiveEntry at 77
mkdir(parentDir)

Error in ==> extractArchive at 52
files = extractArchiveEntry( ...

Error in ==> unzip at 92
files = extractArchive(outputDir, api, mfilename);

Error in ==> MVTinstall at 114
unzip('MVT_toolbox.zip', mvt_folder);

Error in ==> MVTinstall at 30
MVTinstall('toolbox');

initially then i extracted both the folders and then tried running the install file and it gave a error again......

??? Attempt to execute SCRIPT run as a function:
C:\Program Files\MATLAB\R2009b\toolbox\mss\hydro\hydro\vessels\shipx\S175\run.m

Installing the Marine Visualization Toolbox, version 1.0

Searching for installed components...
No components were found.

??? Error using ==> MVTinstall at 105
The file MVT_toolbox.zip was not found!

Error in ==> MVTinstall at 30
MVTinstall('toolbox');

so do i need to add this folder first into the path and then try and run it or whatelse are the other alternates...
thanks......

22 Apr 2008 Larouci benyekhlef

virtual reality toolbox

19 Apr 2005 Federico Torreti

This was very useful!! Well done.

29 Mar 2005 hugo ferreira

Very good work.
www.dee.isep.ipp.pt/~e980933
www.lsa.isep.ipp.pt
www.lsa.isep.ipp.pt/~hf

23 Aug 2004 PETRES Clement

So usefiul for me
Thank you !!

21 Jan 2004 hugo ferreira
09 Dec 2003 Espen Reinertsen

Nice easy-to-use interface with good documentation and help files.
