Recalculate rectification indices for rectangle image

Be the first to rate this file! 17 Downloads (last 30 days) File Size: 113 KB File ID: #47167 Version: 1.2

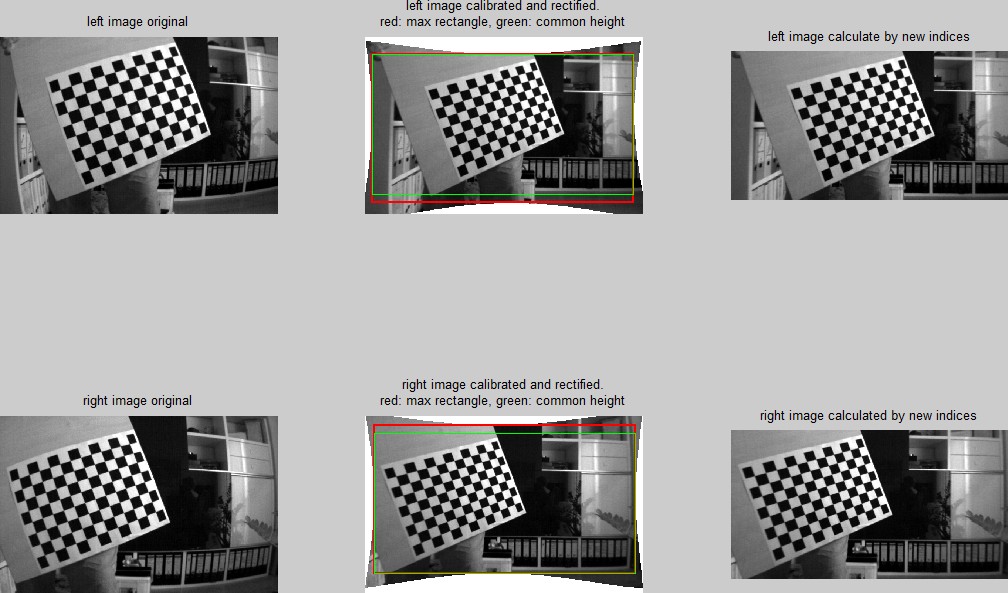

image thumbnail

Recalculate rectification indices for rectangle image



08 Jul 2014 (Updated )

For fast image processing this script extracts parameters for stereo image rectification.

| Watch this File

File Information

  For fast image processing this script extracts all the parameters for stereo image rectification in order to get the largest rectangular image pairs with only valid pixel values. The parameters are sorted in the way images are read in (First pixels of first row, then pixels of 2nd row etc.). Furthermore the precision for the bilinear transformation can be reduced to 8, 16, 32 or nearest neighbor in order to save calculation efforts. The effect of precision reduction are evaluated with 'Double_versus_uint.m'.
     This script works only in conjunction with the "Camera Calibration Toolbox for Matlab" from Jean-Yves Bouguet:
Also required is the modified file 'FindLargestRectanglesPUS.m' (original from Jaroslaw Tuszynski, see
This files is included in this package.


Inscribed Rectangle inspired this file.

Required Products MATLAB
MATLAB release MATLAB 8.0 (R2012b)
Tags for This File   Please login to tag files.
Please login to add a comment or rating.
19 Aug 2014 1.1

For bilinear transformation 'nearest neighbor' is added.

26 Aug 2014 1.2

Indices for left and right rectified images with largest common rectangle.
