# Shortest Path with Obstacle Avoidance (ver 1.3)

03 Oct 2005 (Updated )

Computes shortest path between two points in the plane, avoiding obstacles.

File Information
Description

SHPATH - shortest path with obstacle avoidance (ver 1.3)

Given a "terrain" matrix consisting of zeros (for open space) and ones (for obstacles), this function computes the shortest path between two specified points while avoiding obstacles.

A two-stage solution is employed. In stage one, the algorithm rapidly propagates through all possible pathways to find a representative shortest route. In stage two, the path is contracted to follow closely around sharp corners and eliminate quantization noise. Although the map coordinates (and intial and final points) are integers, the solution coordinates are reals to allow for the elimination of jitter from map quantization.

Note that diagonal "moves" ARE allowed.

To avoid confusion over X/Y conventions for grid matrices, the issue is avoided entirely by referring only to the row and column entries in the grid. The user is invited to employ whatever convention he or she is comfortable using for mapping Cartesian coordinates to the grid matrix entries.

The user is encouraged to see the code comments (or the "help" text) and to run the example code.

Michael Kleder, Oct 2005

MATLAB release MATLAB 7.0.4 (R14SP2)
03 Mar 2014

could you give me the flowchart of this algorithm?

17 Feb 2014

The algorithm is working fine in our case. I want to know on basis of which algorithm you have implemented this code. Or this is your own algo.
Thanks Michael

16 Apr 2013

??? Input argument "MM" is undefined.

Error in ==> test at 137
M=logical(MM);

07 Nov 2011

hi,i am not able to execute the code

30 Aug 2010

Dear Michael,

The algortihm is working perfectly in my case. I was only wondering whether or not it is possible to calculate the length of the final path?

Thijs

30 Aug 2010
02 Nov 2009
30 Jan 2008

Thank you so much. I was in search of similar algorithm for an autonomous robot navigation event. Credits assured. Keep it up

12 Jan 2008

thi is one of good soft

23 Dec 2007
29 Mar 2007

very interesting!

13 Feb 2007

Hello Subrata,
Since this is comand-line function, it wants its input arguments when it is called. There is a lengthy example at the end of the help text that appears when you type "help shpath".

13 Feb 2007

This is not working. MM is undefined.

17 May 2006

Hi Jackson,
Since this is comand-line function rather than an interactive GUI, it wants its input arguments when it is called. There is a lengthy example at the end of the help text that appears when you type "help shpath" which you can copy and paste all at once onto the command line to see an example.
Hope it helps,
Mike

16 May 2006

Hi. I can't get it to work. When I type shpath in Matlab command window, it says:

??? Input argument 'MM' is undefined.
Error in ==> F:\shpath.m
On line 137 ==> M=logical(MM);

19 Dec 2005

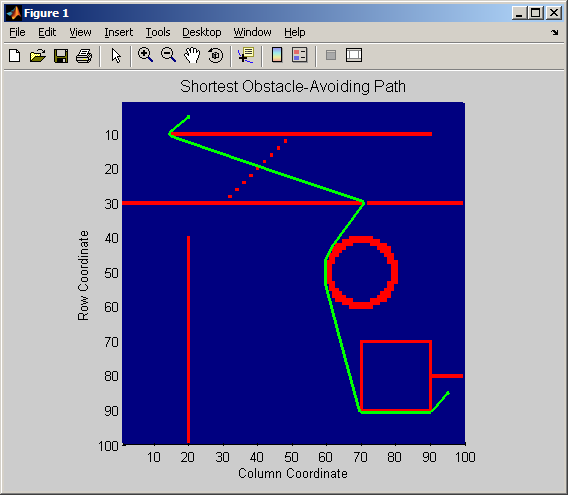

I feel the algorithm works too good.But, there is a problem: it doesnt recognise diagonal obstacles eg- in the given figure itself the shortest path crosses the diagonal line.

07 Oct 2005

Version 1.3 has been uploaded and should be available soon. It is faster, more precise, and has greatly improved handling of tight spaces and corridors.

06 Oct 2005

Ver 1.2 (recently posted) outputs relative path distances from all points to the final point. (One can reverse the order of the inputs to observe distances from the intial point.) Distance units are arbitrary. (See updated example code in the function.)

06 Oct 2005

Related to my previous post, if I am interested not in a single, shortest path, but rather marking distance in all directions around whatever obstacles exist, can the guts of your code be leveraged to that end? Thanks for the quick turnaround on the improvements too - very useful.

05 Oct 2005

Thank you for your comments. I have uploaded version 1.1 as an "update." In that version, the function performs checks on the inputs and also returns NaNs and a warning if no unobstructed route exists. (Also, note that ones are for obstacles and zeros are for open space.)

05 Oct 2005

Great algorithm, Mike. Was wondering whether an optional output could be added that shows the propogation result, whether it be a figure or just the underlying matrix. This would be useful to show all possible paths in addition to the shortest path shown now.

05 Oct 2005
04 Oct 2005

Not bad, Michael, but you might want to add in some error checking for the case where there is no path between the starting and ending points.

% Generate our map
M = ones(25);
M([5 20], 5:20) = 0;
M(5:20, [5 20]) = 0;
% Note the white square -- impenetrable
spy(M)
% You can't get to (10, 10) from (2, 2)
X = shpath(M, 2, 2, 10, 10);

Right now, the code generates an error on line 133 during the interpolation in the second iteration.

06 Oct 2005

Input checks added. Unsolvable case handled. Description text edited.

07 Oct 2005

10 Oct 2005

Improved speed and precision; improved unit-width corridor penetration; improved penetration between diagonally adjacent obstacle squares; improved example plot; improved description text
