rotateY

Rotate shape about y-axis and angle

Syntax

rotateY(shape,angle)

c = rotateY(shape,angle)

rotateY(shape,angle) rotate shape about the y-axis and angle.

c = rotateY(shape,angle) rotate shape about the y-axis and angle.

Create a rectangle shape.

r = antenna.Rectangle;
show(r)
axis equal

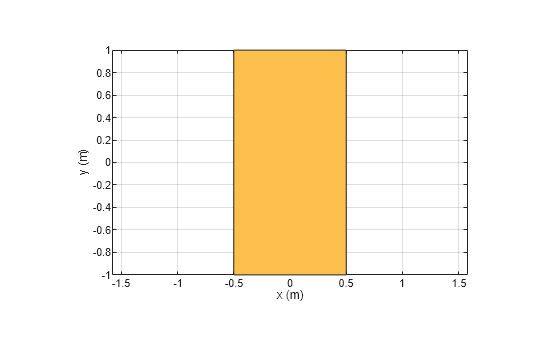

Figure contains an axes object. The axes object contains 2 objects of type patch. This object represents PEC.

Rotate the rectangle at 45 degrees about the Y-axis.

r1 = rotateY(r,45)

r1 =
  Rectangle with properties:

         Name: 'myrectangle'
       Center: [0 0]
       Length: 1
        Width: 2
    NumPoints: 2

show(r1)
axis equal

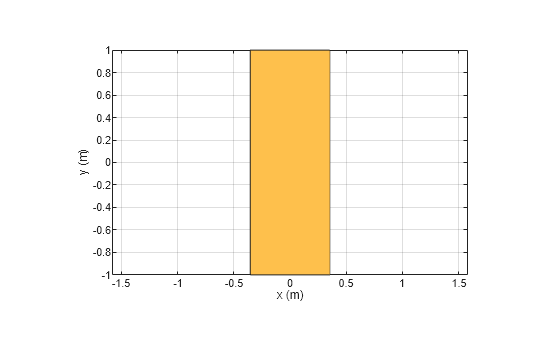

Figure contains an axes object. The axes object contains 2 objects of type patch. This object represents PEC.

Shape created using custom elements and shape objects of Antenna Toolbox, specified as an object.

Example: rotateY(rectangle) where rectangle is created using antenna.Rectangle object.

Angle of rotation, specified as a scalar in degrees.

Example: rotateY(rectangle,45) rotates the rectangle around y-axis by 45 degrees.

Data Types: double

Introduced in R2017a
