Multilayer Shallow Neural Network Architecture

This topic presents part of a typical multilayer shallow network workflow. For more information and other steps, see Multilayer Shallow Neural Networks and Backpropagation Training.

Neuron Model (logsig, tansig, purelin)

An elementary neuron with R inputs is shown below. Each input is weighted with an appropriate w. The sum of the weighted inputs and the bias forms the input to the transfer function f. Neurons can use any differentiable transfer function f to generate their output.

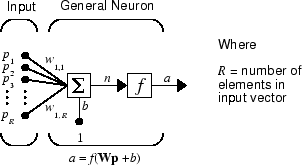

Schematic diagram of a general neuron. The neuron multiplies a input vector p by a weights vector w, sums the result, and applies a bias b. A transfer function f is then applied, generating output a.

Multilayer networks often use the log-sigmoid transfer function logsig.

A plot of the log-sigmoid transfer function. For large positive inputs, the output tends to +1. For large negative inputs, the output tends to 0. An input of 0 gives an output of 0.5.

The function logsig generates outputs between 0 and 1 as the neuron's net input goes from negative to positive infinity.

Alternatively, multilayer networks can use the tan-sigmoid transfer function tansig.

A plot of the tan-sigmoid transfer function. For large positive inputs, the output tends to +1. For large negative inputs, the output tends to -1. An input of 0 gives an output of 0.

Sigmoid output neurons are often used for pattern recognition problems, while linear output neurons are used for function fitting problems. The linear transfer function purelin is shown below.

A plot of the linear transfer function. The output scales linearly with the input.

The three transfer functions described here are the most commonly used transfer functions for multilayer networks, but other differentiable transfer functions can be created and used if desired.

Feedforward Neural Network

A single-layer network of S logsig neurons having R inputs is shown below in full detail on the left and with a layer diagram on the right.

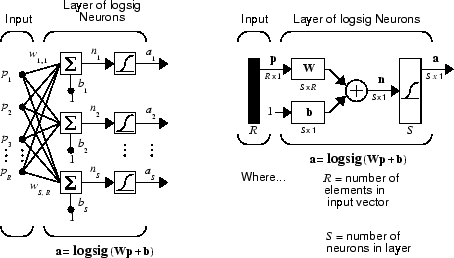

Schematic diagram showing a layer containing S logsig neurons.

Feedforward networks often have one or more hidden layers of sigmoid neurons followed by an output layer of linear neurons. Multiple layers of neurons with nonlinear transfer functions allow the network to learn nonlinear relationships between input and output vectors. The linear output layer is most often used for function fitting (or nonlinear regression) problems.

On the other hand, if you want to constrain the outputs of a network (such as between 0 and 1), then the output layer should use a sigmoid transfer function (such as logsig). This is the case when the network is used for pattern recognition problems (in which a decision is being made by the network).

For multiple-layer networks the layer number determines the superscript on the weight matrix. The appropriate notation is used in the two-layer tansig/purelin network shown next.

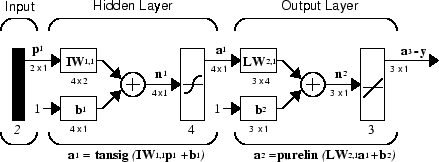

A schematic diagram of a network containing two layers. A hidden layer receives an input vector p. The weights of the hidden layer are denoted with a superscript 1. An output layer receives the output of the hidden layer. The weights of the output layer are denoted with a superscript 1.

This network can be used as a general function approximator. It can approximate any function with a finite number of discontinuities arbitrarily well, given sufficient neurons in the hidden layer.

Now that the architecture of the multilayer network has been defined, the design process is described in the following sections.
