computeBoundaryModel

Compute lane boundary points from clothoid lane boundary model

Description

yworld = computeBoundaryModel(boundary,xworld) returns the y-coordinates of lane boundary points, yworld, derived from a lane boundary, boundary, at points specified by the x-coordinates, xworld. All points are in world coordinates.

Examples

collapse all

Create clothoid curves to represent left and right lane boundaries. Then, plot the curves.

Create the left boundary.

lb = clothoidLaneBoundary('BoundaryType','Solid', ...
'Strength',1,'Width',0.2,'CurveLength',40, ...

Create the right boundary with almost identical properties.

rb = lb;
rb.LateralOffset = -2;

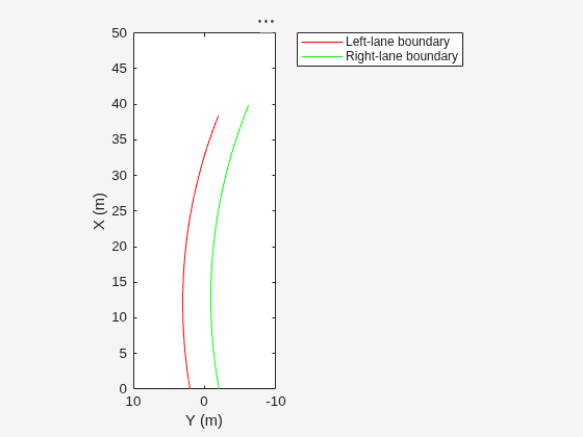

Create a bird's-eye plot. Then, create the lane boundary plotters and plot the boundaries.

bep = birdsEyePlot('XLimits',[0 50],'YLimits',[-10 10]);
lbPlotter = laneBoundaryPlotter(bep,'DisplayName','Left-lane boundary','Color','r');
rbPlotter = laneBoundaryPlotter(bep,'DisplayName','Right-lane boundary','Color','g');
plotLaneBoundary(lbPlotter,lb)
plotLaneBoundary(rbPlotter,rb);
grid

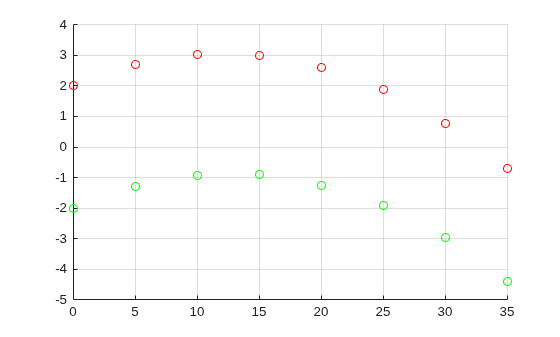

hold on Plot the coordinates of selected points along the boundaries.

x = 0:5:50;
yl = computeBoundaryModel(lb,x);
yr = computeBoundaryModel(rb,x);
plot(x,yl,'ro')
plot(x,yr,'go')
hold off Input Arguments

collapse all

Lane boundary model, specified as a clothoidLaneBoundary object.

x-world coordinates, specified as a real-valued vector of length N, where N is the number of coordinates.

Example: 2:2.5:100

Data Types: single | double

Output Arguments

collapse all

y-world coordinates, returned as a real-valued vector of length N, where N is the number of coordinates. The length and data type of yWorld are the same as for xWorld.

Data Types: single | double
