Extended Target Tracking with Multipath Radar Reflections in Simulink

This example shows how to model and mitigate multipath radar reflections in a highway driving scenario in Simulink®. It closely follows the Highway Vehicle Tracking with Multipath Radar Reflections (Radar Toolbox) MATLAB® example.

Introduction

While automotive radars provide robust detection performance across the diverse array of environmental conditions encountered in autonomous driving scenarios, interpreting the detections reported by the radar can prove challenging. Sensor fusion algorithms processing the radar detections will need to be able to identify the desired target detections returned along with detections arising from road (often referred to as clutter) and multipath between the various objects in the driving scenario like guardrails and other vehicles on the road. Detections generated by multiple reflections between the radar and a particular target are often referred to as ghost detections because they seem to originate in regions where no targets exist. This example shows you the impact of these multipath reflections on designing and configuring an object tracking strategy using radar detections. For more details regarding multipath phenomenon and simulation of ghost detections, refer to the Simulate Radar Ghosts Due to Multipath Return (Radar Toolbox) example.

Load Scenario and Radars

This example uses the same scenario and radars defined by the helperCreateMultipathDrivingScenario function used in the Highway Vehicle Tracking with Multipath Radar Reflections (Radar Toolbox) example. Opening the model loads this scenario into the workspace for use by the Scenario Reader (Automated Driving Toolbox) block.

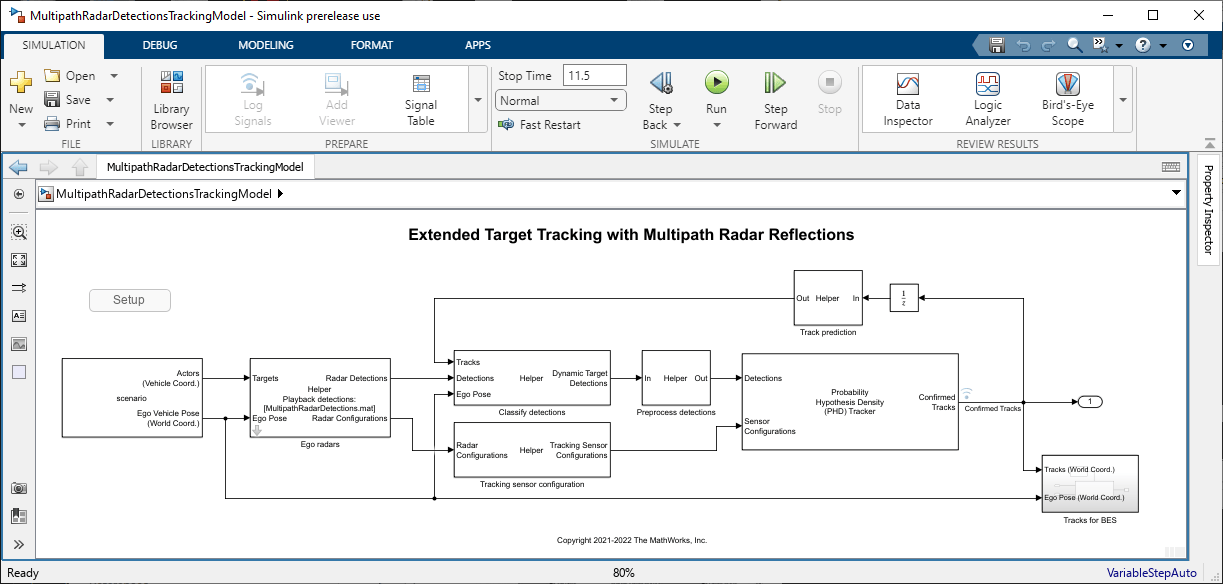

open_system('MultipathRadarDetectionsTrackingModel')

Use the "Ego radars" helper block to playback detections recorded from four radars providing full 360 degree coverage around the ego vehicle. To record a new set of detections, uncheck "Playback radar recording".

open_system('MultipathRadarDetectionsTrackingModel/Ego radars')

close_system('MultipathRadarDetectionsTrackingModel/Ego radars')

The four sensor models are configured in the "Record radars" block.

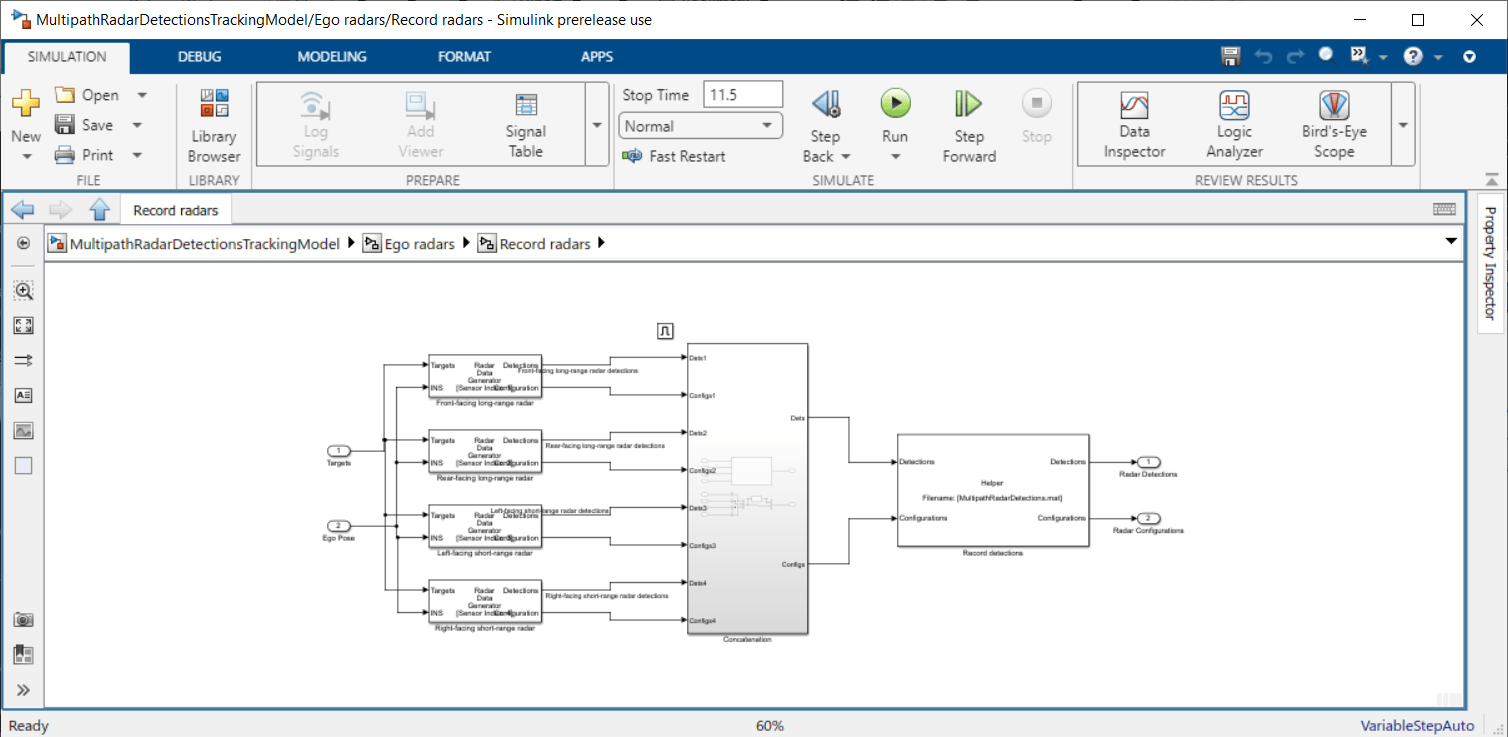

open_system('MultipathRadarDetectionsTrackingModel/Ego radars/Record radars')

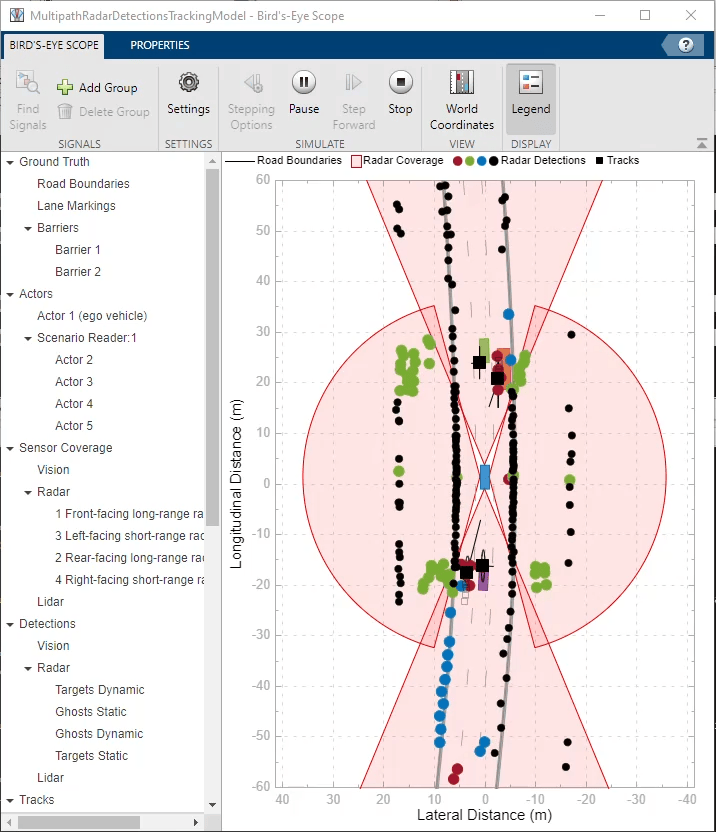

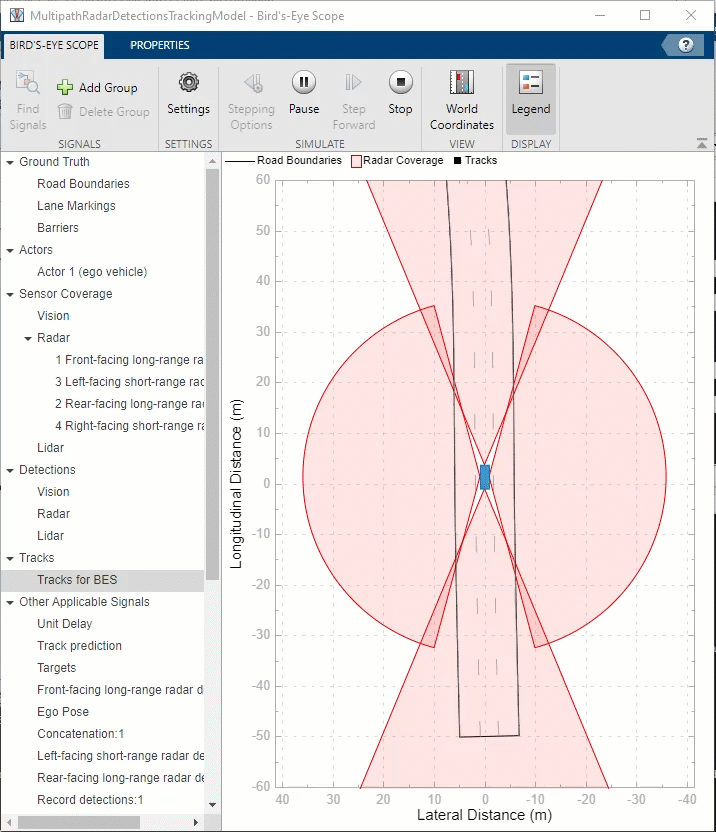

Use Bird's-Eye Scope (Automated Driving Toolbox) to visualize the scenario and sensor coverage in this model.

The "Classify detections" helper block classifies the detections generated by the four radars by comparing their measurements to the confirmed tracks from the Probability Hypothesis Density (PHD) Tracker block. The detection classification utilizes the measured radial velocity from the targets to determine if the target generating the detection was static or dynamic [1]. The detections are classified into four categories:

  1. Dynamic targets - These (red) detections are classified to originate from real dynamic targets in the scene.

  2. Static ghosts - These (green) detections are classified to originate from dynamic targets but reflected via the static environment.

  3. Dynamic ghosts - These (blue) detections are classified to originate from dynamic targets but reflected via other dynamic objects.

  4. Static targets - These (black) detections are classified to originate from the static environment.

Configure GGIW-PHD Extended Object Tracker

Configure the Probability Hypothesis Density (PHD) Tracker block with the same parameters as used by the Highway Vehicle Tracking with Multipath Radar Reflections (Radar Toolbox) example. Reuse the helperMultipathExamplePartitionFcn function to define the detection partitions used within the tracker.

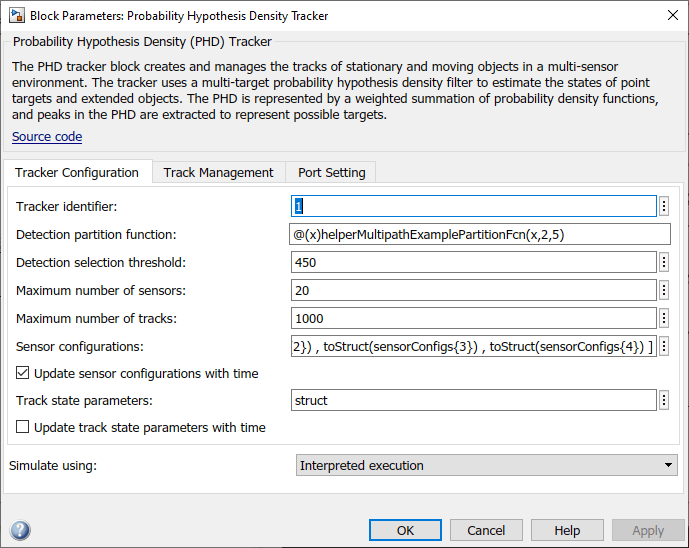

open_system('MultipathRadarDetectionsTrackingModel/Probability Hypothesis Density Tracker')

close_system('MultipathRadarDetectionsTrackingModel/Probability Hypothesis Density Tracker',0)

Run Simulation

Use the following command to playback the recorded detections and generate tracks.

simout = sim('MultipathRadarDetectionsTrackingModel')

Use helperSaveSimulationLogs to save the logged tracks and classified detections for offline analysis.

helperSaveSimulationLogs('MultipathRadarDetectionsTrackingModel',simout);

Analyze Performance

Load the logged tracks and detections to assess the performance of the tracking algorithm by using the GOSPA metric and its associated components.

[confirmedTracks,confusionMatrix] = helperLoadSimulationLogs('MultipathRadarDetectionsTrackingModel');

Use trackGOSPAMetric to calculate GOSPA metrics from the logged tracks.

gospaMetric = trackGOSPAMetric('Distance','custom', ...
    'DistanceFcn',@helperGOSPADistance, ...
    'CutoffDistance',35);

% Number of simulated track updates
numSteps = numel(confirmedTracks.Time);

% GOSPA metric
gospa = NaN(4,numSteps);

restart(scenario);
groundTruth = scenario.Actors(2:end);
iStep = 1;
tol = seconds(scenario.SampleTime/4);
while scenario.SimulationTime<=seconds(confirmedTracks.Time(end))
    % Select data from time table for current simulation time
    tsim = scenario.SimulationTime;
    wt = withtol(seconds(tsim),tol);

    % Select tracks from time table and compute GOSPA metrics
    theseTracks = confirmedTracks{wt,'Tracks'}{1};
    [gospa(1,iStep),~,~,gospa(2,iStep),gospa(3,iStep),gospa(4,iStep)] = gospaMetric(theseTracks,groundTruth);

    if scenario.IsRunning
        advance(scenario);
    else
        break
    end
    iStep = iStep+1;
end

Quantitatively assess the performance of the tracking algorithm by using the GOSPA metric and its associated components. A lower value of the metric denotes better tracking performance. In the figure below, the "Missed-target" component of the metric remains zero after a few steps in the beginning, representing establishment delay of the tracker. This component shows that no targets were missed by the tracker. The "False-tracks" component of the metric is zero for most of the simulation, indicating that no false tracks were confirmed by the tracker during those times.

% Plot GOSPA metrics
plot(seconds(confirmedTracks.Time),gospa','LineWidth',2);
xlabel('Time (s)');
title('GOSPA Metrics');
grid on;
legend('GOSPA','Localization GOSPA','Missed-target GOSPA','False-tracks GOSPA');

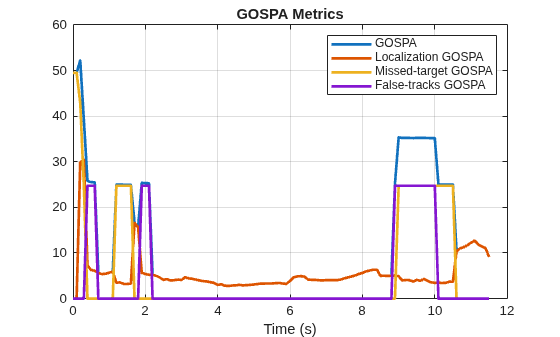

Figure contains an axes object. The axes object with title GOSPA Metrics contains 4 objects of type line. These objects represent GOSPA, Localization GOSPA, Missed-target GOSPA, False-tracks GOSPA.

Similar to the tracking algorithm, you also quantitatively analyze the performance of the radar detection classification algorithm by using a confusion matrix [2]. The rows shown in the table denote the true classification information of the radar detections and the columns represent the predicted classification information. For example, the second element of the first row defines the percentage of target detections predicted as ghosts from static object reflections.

91% of the target detections are classified correctly. However, a small percentage of the target detections are misclassified as ghosts from dynamic reflections. Also, approximately 3% of ghosts from static object reflections and 23% of ghosts from dynamic object reflections are misclassified as targets and sent to the tracker for processing. A common situation when this occurs in this example is when the detections from two-bounce reflections lie inside the estimated extent of the vehicle. Further, the classification algorithm used in this example is not designed to find false alarms or clutter in the scene. Therefore, the fifth column of the confusion matrix is zero. Due to spatial distribution of the false alarms inside the field of view, the majority of false alarm detections are either classified as reflections from static objects or dynamic objects.

% Accumulate confusion matrix over all steps
confMat = shiftdim(reshape([confusionMatrix{:,'Confusion Matrix'}],numSteps,5,5),1);
confMat = sum(confMat,3);

% Number of detections for each target type
numDetections = sum(confMat,2);

numDetsTable = array2table(numDetections,'RowNames',{'Targets','Ghost (S)','Ghost (D)','Environment','Clutter'},...
    'VariableNames',{'Number of Detections'});

disp('True Information');disp(numDetsTable);
True Information
                   Number of Detections
                   ____________________

    Targets                1986
    Ghost (S)              3244
    Ghost (D)               836
    Environment           27441
    Clutter                 139
% Calculate classification percentages
percentMatrix = confMat./numDetections*100;

percentMatrixTable = array2table(round(percentMatrix,2),'RowNames',{'Targets','Ghost (S)','Ghost (D)','Environment','Clutter'},...
    "VariableNames",{'Targets','Ghost (S)','Ghost (D)', 'Environment','Clutter'});

disp('True vs Predicted Confusion Matrix (%)');disp(percentMatrixTable);
True vs Predicted Confusion Matrix (%)
                   Targets    Ghost (S)    Ghost (D)    Environment    Clutter
                   _______    _________    _________    ___________    _______

    Targets         90.99        0.76         7.85          0.4           0
    Ghost (S)        3.18       85.39        11.13         0.31           0
    Ghost (D)       22.97        0.36        76.67            0           0
    Environment      1.56        2.92         3.41         92.1           0
    Clutter         19.42       65.47        14.39         0.72           0

Summary

In this example, you simulated radar detections due to multipath propagation in an urban highway driving scenario using Simulink. You configured a data processing algorithm to simultaneously filter ghost detections and track vehicles on the highway. You also analyzed the performance of the tracking algorithm and the classification algorithm using the GOSPA metric and confusion matrix.
