# Implement Sqrt Block with Control Signals

This example shows how to implement the control-signal based Square root block and use it to generate HDL code.

### Open and Run the Simulink Model

Specify the input data as a linear sweep. You can change these values according to your requirements.

```SQRT_input = fi(1/2^17:1/2^17:1,0,18,17)'; ```

Specify the word length for fixed-point datatypes and the latency for the model. For more information on the latency calculation, see Sqrt.

```WL = 18; latency = 20; ```

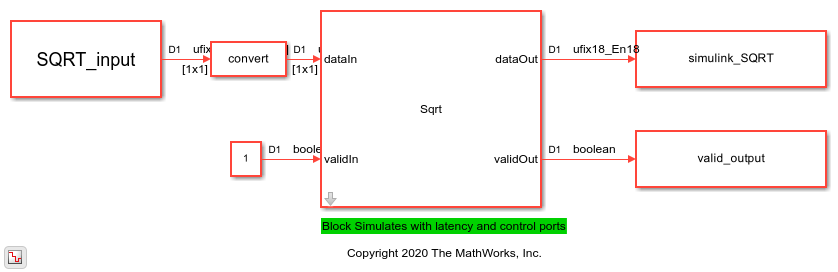

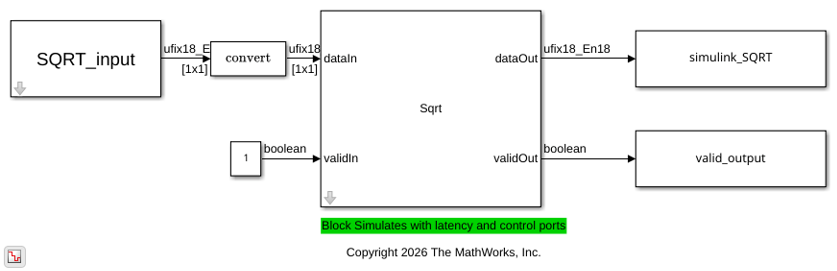

Open the `hdlcoder_sqrt_bitset_control` model and specify a stop time sufficient to process all the input combinations.

```stoptime = length(SQRT_input)-1+latency; open_system('hdlcoder_sqrt_bitset_control') sim('hdlcoder_sqrt_bitset_control') ```

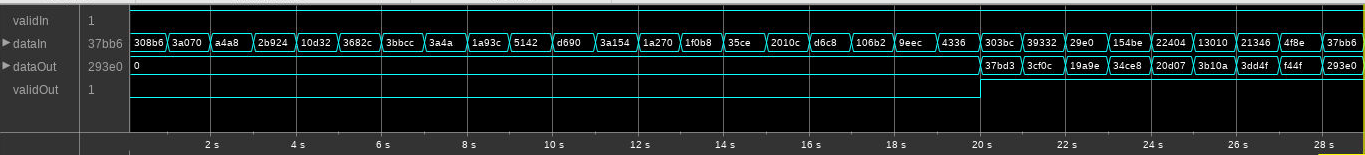

This figure shows the simulation waveform for the model. You can see that `dataOut` output is valid when `validOut` is `1`.

### Validate Simulink Output by Using Reference Output

To validate the output of the Simulink model, compare this output to a reference values. To obtain the reference values, use the `sqrt` function. Compute the reference output by using the `sqrt` function.

```ref_SQRT = sqrt(double(SQRT_input)); ```

Use logical indexing to extract valid output.

```implementation_SQRT = simulink_SQRT(valid_output); ```

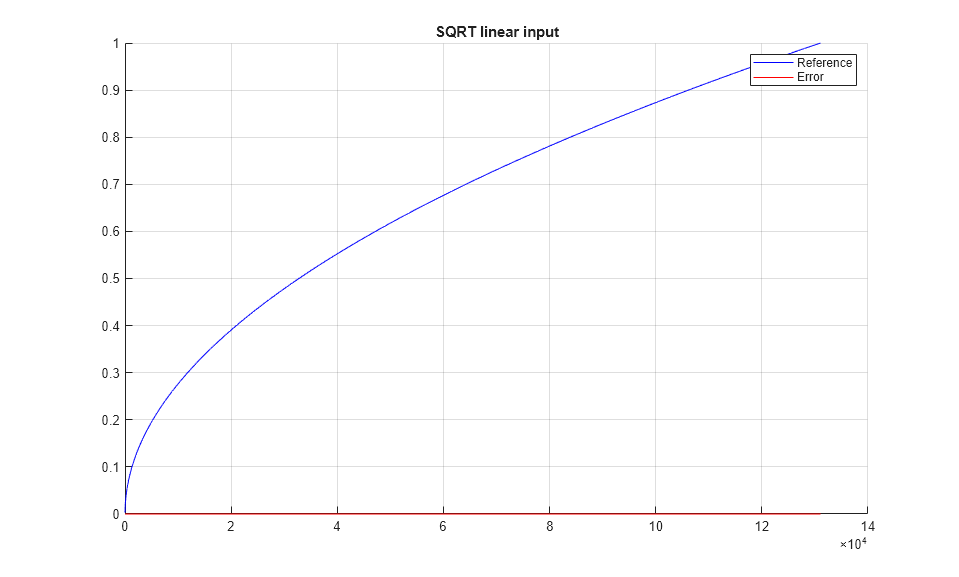

Plot the comparison results by using the `comparison_plot_sqrt` function. The maximum error value is significantly smaller than the output of the model.

```comparison_plot_sqrt(ref_SQRT,implementation_SQRT,1,'SQRT linear input'); ```
```Maximum Error SQRT linear input 3.814697e-06 Maximum PctError SQRT linear input 3.803159e-02 ```

### Generate HDL Code for Square Root Implementation

Check the HDL settings saved of the model by using the `hdlsaveparams` function.

```hdlsaveparams('hdlcoder_sqrt_bitset_control') ```
```%% Set Model 'hdlcoder_sqrt_bitset_control' HDL parameters hdlset_param('hdlcoder_sqrt_bitset_control', 'Backannotation', 'on'); hdlset_param('hdlcoder_sqrt_bitset_control', 'HDLSubsystem', 'hdlcoder_sqrt_bitset_control/Sqrt'); hdlset_param('hdlcoder_sqrt_bitset_control', 'ResetType', 'Synchronous'); hdlset_param('hdlcoder_sqrt_bitset_control', 'SynthesisTool', 'Xilinx Vivado'); hdlset_param('hdlcoder_sqrt_bitset_control', 'SynthesisToolChipFamily', 'Virtex7'); hdlset_param('hdlcoder_sqrt_bitset_control', 'SynthesisToolDeviceName', 'xc7v2000t'); hdlset_param('hdlcoder_sqrt_bitset_control', 'SynthesisToolPackageName', 'fhg1761'); hdlset_param('hdlcoder_sqrt_bitset_control', 'SynthesisToolSpeedValue', '-2'); hdlset_param('hdlcoder_sqrt_bitset_control', 'TargetDirectory', 'hdl_prj\hdlsrc'); hdlset_param('hdlcoder_sqrt_bitset_control', 'TargetFrequency', 500); hdlset_param('hdlcoder_sqrt_bitset_control', 'Traceability', 'on'); % Set SubSystem HDL parameters hdlset_param('hdlcoder_sqrt_bitset_control/Sqrt', 'FlattenHierarchy', 'on'); hdlset_param('hdlcoder_sqrt_bitset_control/Sqrt/LumpLatency', 'Architecture', 'MATLAB Datapath'); % Set SubSystem HDL parameters hdlset_param('hdlcoder_sqrt_bitset_control/Sqrt/LumpLatency', 'FlattenHierarchy', 'on'); % Set Sqrt HDL parameters hdlset_param('hdlcoder_sqrt_bitset_control/Sqrt/Sqrt', 'LatencyStrategy', 'Max'); hdlset_param('hdlcoder_sqrt_bitset_control/Sqrt/ValidLine', 'Architecture', 'MATLAB Datapath'); % Set SubSystem HDL parameters hdlset_param('hdlcoder_sqrt_bitset_control/Sqrt/ValidLine', 'FlattenHierarchy', 'on'); ```

To generate HDL code for the Sqrt block in the model, use the `makehdl` function.

``` makehdl('hdlcoder_sqrt_bitset_control/Sqrt') close_system('hdlcoder_sqrt_bitset_control') close all; ```
```### Working on the model <a href="matlab:open_system('hdlcoder_sqrt_bitset_control')">hdlcoder_sqrt_bitset_control</a> ### Generating HDL for <a href="matlab:open_system('hdlcoder_sqrt_bitset_control/Sqrt')">hdlcoder_sqrt_bitset_control/Sqrt</a> ### Using the config set for model <a href="matlab:configset.showParameterGroup('hdlcoder_sqrt_bitset_control', { 'HDL Code Generation' } )">hdlcoder_sqrt_bitset_control</a> for HDL code generation parameters. ### Running HDL checks on the model 'hdlcoder_sqrt_bitset_control'. ### Begin compilation of the model 'hdlcoder_sqrt_bitset_control'... ### Begin compilation of the model 'hdlcoder_sqrt_bitset_control'... ### Working on the model 'hdlcoder_sqrt_bitset_control'... ### Working on... <a href="matlab:configset.internal.open('hdlcoder_sqrt_bitset_control', 'GenerateModel')">GenerateModel</a> ### Begin model generation 'gm_hdlcoder_sqrt_bitset_control'... ### Rendering DUT with optimization related changes (IO, Area, Pipelining)... ### Model generation complete. ### Generated model saved at <a href="matlab:open_system('hdl_prj/hdlsrc/hdlcoder_sqrt_bitset_control/gm_hdlcoder_sqrt_bitset_control.slx')">hdl_prj/hdlsrc/hdlcoder_sqrt_bitset_control/gm_hdlcoder_sqrt_bitset_control.slx</a> ### Begin VHDL Code Generation for 'hdlcoder_sqrt_bitset_control'. ### Working on... <a href="matlab:configset.internal.open('hdlcoder_sqrt_bitset_control', 'Traceability')">Traceability</a> ### Working on hdlcoder_sqrt_bitset_control/Sqrt/Sqrt as hdl_prj/hdlsrc/hdlcoder_sqrt_bitset_control/Sqrt_block.vhd. ### Working on hdlcoder_sqrt_bitset_control/Sqrt as hdl_prj/hdlsrc/hdlcoder_sqrt_bitset_control/Sqrt.vhd. ### Generating package file hdl_prj/hdlsrc/hdlcoder_sqrt_bitset_control/Sqrt_pkg.vhd. ### Code Generation for 'hdlcoder_sqrt_bitset_control' completed. ### Generating HTML files for code generation report at <a href="matlab:hdlcoder.report.openDdg('/tmp/Bdoc24b_2679053_1485932/tpf9accb54/hdlcoder-ex92585700/hdl_prj/hdlsrc/hdlcoder_sqrt_bitset_control/html/hdlcoder_sqrt_bitset_control_codegen_rpt.html')">hdlcoder_sqrt_bitset_control_codegen_rpt.html</a> ### Creating HDL Code Generation Check Report file:///tmp/Bdoc24b_2679053_1485932/tpf9accb54/hdlcoder-ex92585700/hdl_prj/hdlsrc/hdlcoder_sqrt_bitset_control/Sqrt_report.html ### HDL check for 'hdlcoder_sqrt_bitset_control' complete with 0 errors, 0 warnings, and 0 messages. ### HDL code generation complete. ```

### Sqrt Block Synthesis Performance

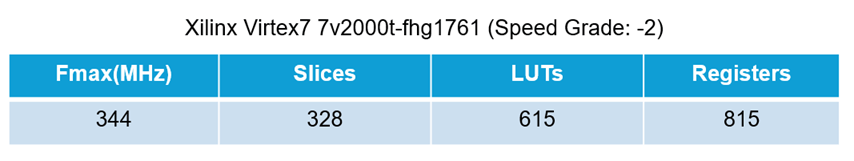

This figure shows the Sqrt block synthesis performance on the Xilinx® Virtex® 7 and Intel® Stratix® V devices.
