Detecting Cars in a Video of Traffic

This example shows how to use Image Processing Toolbox™ to visualize and analyze videos or image sequences. This example uses VideoReader (MATLAB®), implay, and other Image Processing Toolbox functions to detect light-colored cars in a video of traffic. Note that VideoReader has platform-specific capabilities and may not be able to read the supplied Motion JPEG2000 video on some platforms.

Step 1: Access Video with VideoReader

The VideoReader function constructs a multimedia reader object that can read video data from a multimedia file. See VideoReader for information on which formats are supported on your platform.

Use VideoReader to access the video and get basic information about it.

trafficVid = VideoReader('traffic.mj2')
trafficVid =

  VideoReader with properties:

   General Properties:
            Name: 'traffic.mj2'
            Path: '/mathworks/devel/bat/filer/batfs1904-0/Bdoc24a.2528353/build/matlab/toolbox/images/imdata'
        Duration: 8
     CurrentTime: 0
       NumFrames: 120

   Video Properties:
           Width: 160
          Height: 120
       FrameRate: 15
    BitsPerPixel: 24
     VideoFormat: 'RGB24'

The get method provides more information on the video such as its duration in seconds.

obj =

  VideoReader with properties:

   General Properties:
            Name: 'traffic.mj2'
            Path: '/mathworks/devel/bat/filer/batfs1904-0/Bdoc24a.2528353/build/matlab/toolbox/images/imdata'
        Duration: 8
     CurrentTime: 0
       NumFrames: 120

   Video Properties:
           Width: 160
          Height: 120
       FrameRate: 15
    BitsPerPixel: 24
     VideoFormat: 'RGB24'

Step 2: Explore Video with IMPLAY

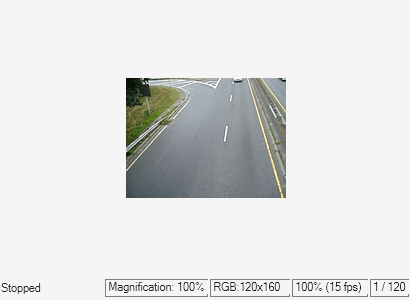

Explore the video in implay.


Step 3: Develop Your Algorithm

When working with video data, it can be helpful to select a representative frame from the video and develop your algorithm on that frame. Then, this algorithm can be applied to the processing of all the frames in the video.

For this car-tagging application, examine a frame that includes both light-colored and dark-colored cars. When an image has many structures, like the traffic video frames, it is useful to simplify the image as much as possible before trying to detect an object of interest. One way to do this for the car tagging application is to suppress all objects in the image that are not light-colored cars (dark-colored cars, lanes, grass, etc.). Typically, it takes a combination of techniques to remove these extraneous objects.

One way to remove the dark-colored cars from the video frames is to use the imextendedmax function. This function returns a binary image that identifies regions with intensity values above a specified threshold, called regional maxima. All other objects in the image with pixel values below this threshold become the background. To eliminate the dark-colored cars, determine the average pixel value for these objects in the image. (Use im2gray to convert the original video from RGB to grayscale.) You can use the pixel region tool in implay to view pixel values. Specify the average pixel value (or a value slightly higher) as the threshold when you call imextendedmax. For this example, set the value to 50.

darkCarValue = 50;
darkCar = im2gray(read(trafficVid,71));
noDarkCar = imextendedmax(darkCar, darkCarValue);
figure, imshow(noDarkCar)

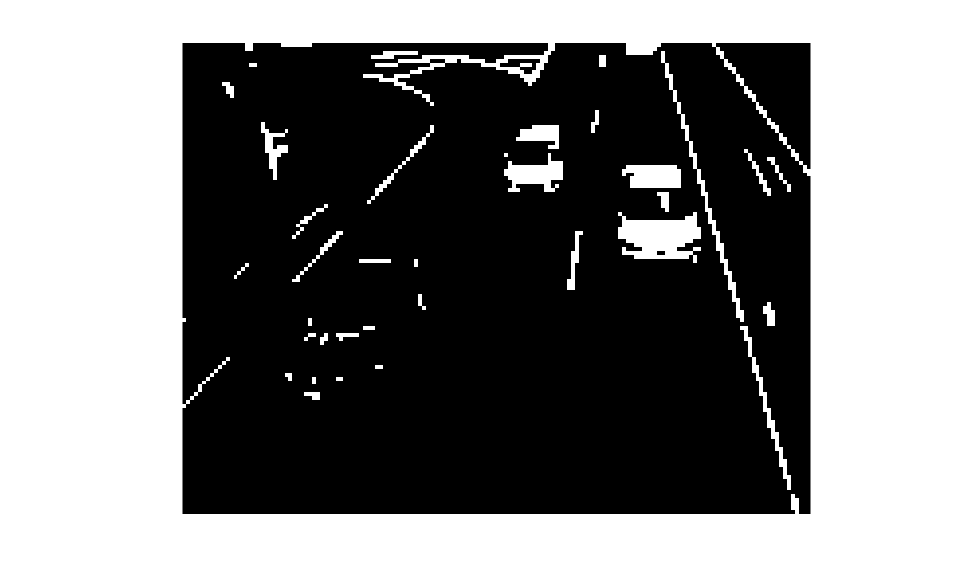

In the processed image, note how most of the dark-colored car objects are removed but many other extraneous objects remain, particularly the lane-markings. The regional maxima processing will not remove the lane markings because their pixel values are above the threshold. To remove these objects, you can use the morphological function imopen. This function uses morphological processing to remove small objects from a binary image while preserving large objects. When using morphological processing, you must decide on the size and shape of the structuring element used in the operation. Because the lane-markings are long and thin objects, use a disk-shaped structuring element with radius corresponding to the width of the lane markings. You can use the pixel region tool in implay to estimate the width of these objects. For this example, set the value to 2.

sedisk = strel('disk',2);
noSmallStructures = imopen(noDarkCar, sedisk);

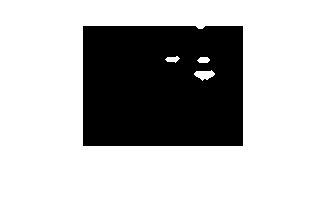

To complete the algorithm, use regionprops to find the centroid of the objects in noSmallStructures (should just be the light-colored cars). Use this information to position the tag on the light-colored cars in the original video.

Step 4: Apply the Algorithm to the Video

The car-tagging application processes the video one frame at a time in a loop. (Because a typical video contains a large number of frames, it would take a lot of memory to read and process all the frames at once.)

A small video (like the one in this example) could be processed at once, and there are many functions that provide this capability. For more information, see Process Image Sequences.

For faster processing, preallocate the memory used to store the processed video.

nframes = trafficVid.NumberOfFrames;
I = read(trafficVid, 1);
taggedCars = zeros([size(I,1) size(I,2) 3 nframes], class(I));

for k = 1 : nframes
    singleFrame = read(trafficVid, k);

    % Convert to grayscale to do morphological processing.
    I = rgb2gray(singleFrame);

    % Remove dark cars.
    noDarkCars = imextendedmax(I, darkCarValue);

    % Remove lane markings and other non-disk shaped structures.
    noSmallStructures = imopen(noDarkCars, sedisk);

    % Remove small structures.
    noSmallStructures = bwareaopen(noSmallStructures, 150);

    % Get the area and centroid of each remaining object in the frame. The
    % object with the largest area is the light-colored car.  Create a copy
    % of the original frame and tag the car by changing the centroid pixel
    % value to red.
    taggedCars(:,:,:,k) = singleFrame;

    stats = regionprops(noSmallStructures, {'Centroid','Area'});
    if ~isempty([stats.Area])
        areaArray = [stats.Area];
        [junk,idx] = max(areaArray);
        c = stats(idx).Centroid;
        c = floor(fliplr(c));
        width = 2;
        row = c(1)-width:c(1)+width;
        col = c(2)-width:c(2)+width;
        taggedCars(row,col,1,k) = 255;
        taggedCars(row,col,2,k) = 0;
        taggedCars(row,col,3,k) = 0;

Step 5: Visualize Results

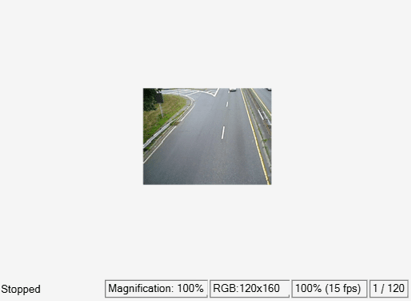

Get the frame rate of the original video and use it to see taggedCars in implay.

frameRate = trafficVid.FrameRate;
