Process Blocked Images Efficiently Using Partial Images or Lower Resolutions
This example shows how to process a blocked image quickly using two strategies that enable computations on smaller representative samples of the high-resolution image.
Processing blocked images can be time consuming, which makes iterative development of algorithms prohibitively expensive. There are two common ways to shorten the feedback cycle: iterate on a lower resolution image or iterate on a partial region of the blocked image. This example demonstrates both of these approaches for creating a segmentation mask for a blocked image.
If you have Parallel Computing Toolbox™ installed, then you can further accelerate the processing by using multiple workers.
blockedImage object using a modified version of image "tumor_091.tif" from the CAMELYON16 data set. The original image is a training image of a lymph node containing tumor tissue. The original image has eight resolution levels, and the finest level has resolution 53760-by-61440. The modified image has only three coarse resolution levels. The spatial referencing of the modified image has been adjusted to enforce a consistent aspect ratio and to register features at each level.
bim = blockedImage('tumor_091R.tif');

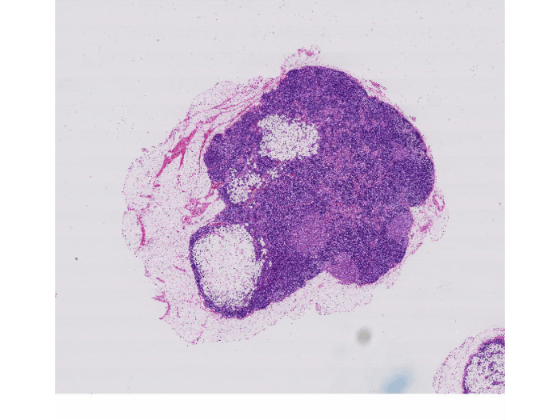

Display the blocked image by using the
Accelerate Processing Using Lower Resolution Image
Many blocked images contain multiple resolution levels, including coarse lower resolution versions of the finest high-resolution image. In general, the distribution of individual pixel values should be roughly equal across all the levels. Leveraging this assumption, you can compute global statistics at a coarse level and then use the statistics to process the finer levels.

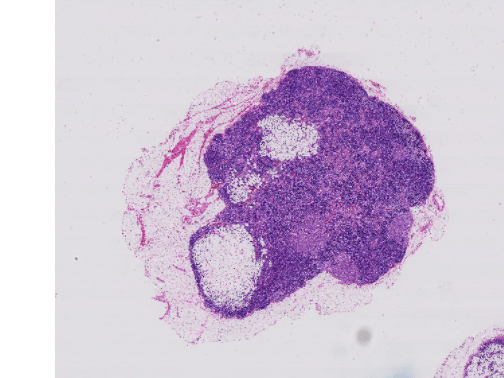

Extract the image at the coarsest level, then convert the image to grayscale.
imLowRes = gather(bim); % default is coarsest imLowResGray = rgb2gray(imLowRes);

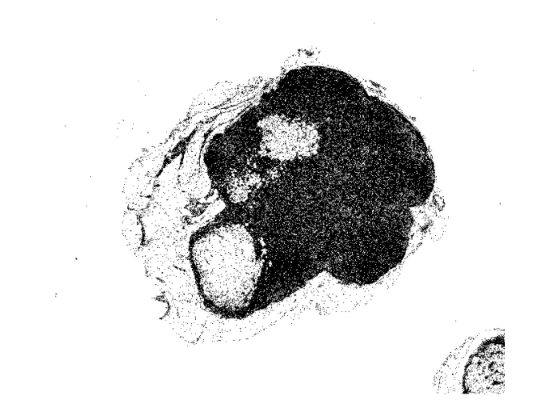

Threshold the image into two classes and display the result.

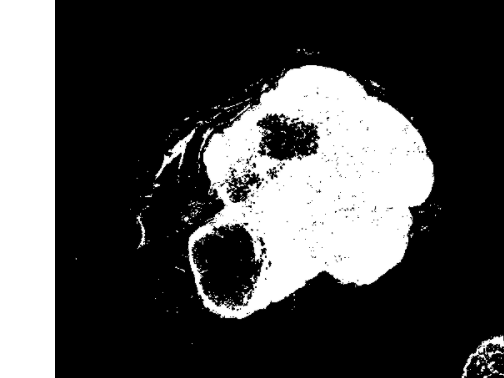

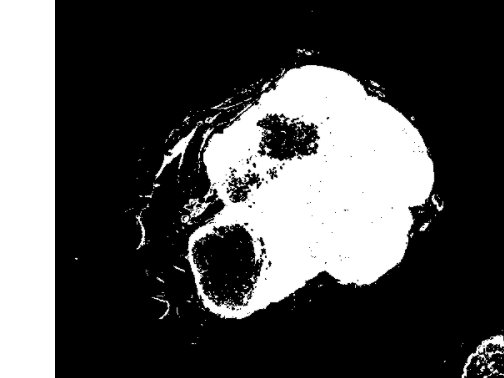

thresh = graythresh(imLowResGray); imLowResQuant = imbinarize(imLowResGray,thresh); imshow(imLowResQuant)
Validate on the largest image. Negate the result to obtain a mask for the stained region.
bq = apply(bim, ... @(bs)~imbinarize(rgb2gray(bs.Data),thresh));
Visualize the result at the finest level.
Accelerate Processing Using Using Partial Regions of blocked Image
Another approach while working with large images is to extract a smaller region with features of interest. You can compute statistics from the ROI and then use the statistics to process the entire high-resolution image.
% Zoom in on a region of interest. bigimageshow(bim); xlim([2400,3300]) ylim([900 1700])

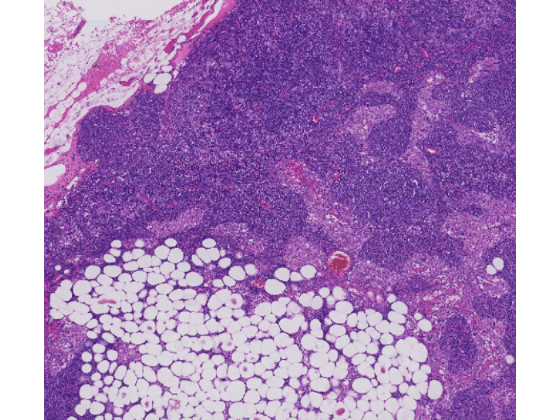

Extract the region being shown from the finest level.
xrange = xlim; yrange = ylim; imRegion = getRegion(bim,[900 2400 1],[1700 3300 3],'Level',1); imshow(imRegion);
Prototype with this region then display the results.

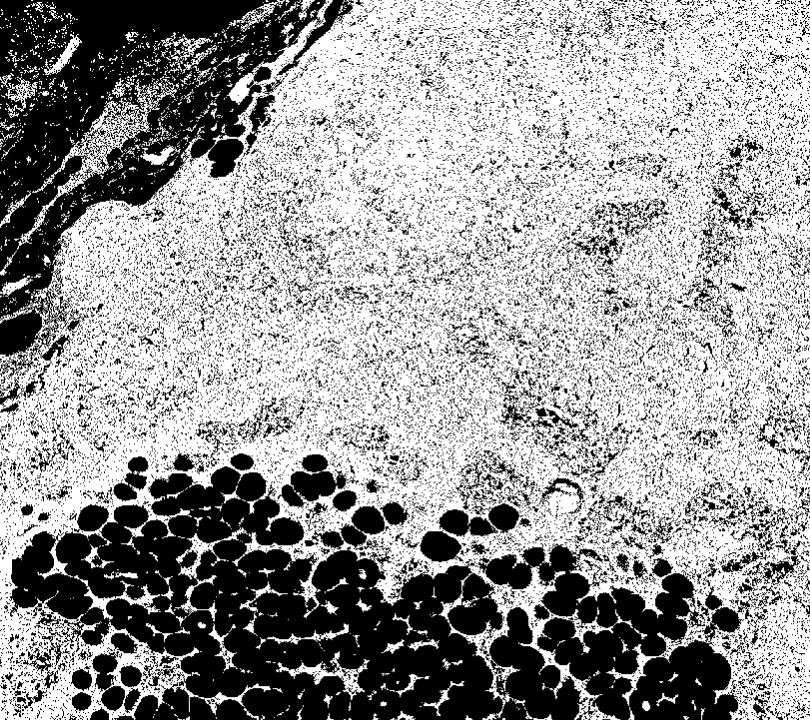

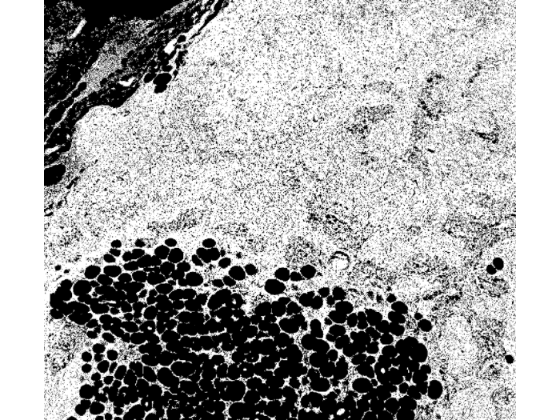

imRegionGray = rgb2gray(imRegion); thresh = graythresh(imRegionGray); imLowResQuant = ~imbinarize(imRegionGray,thresh); imshow(imLowResQuant)
Validate on the full blocked image and display the results.

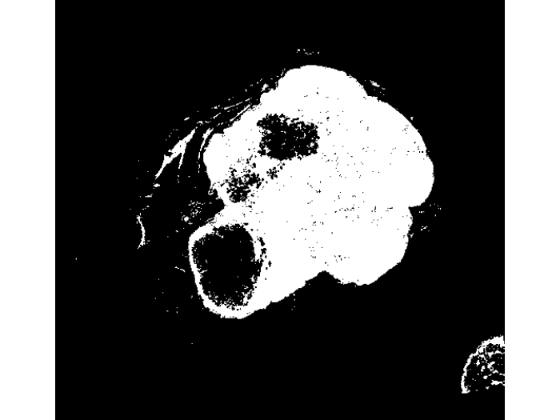

bq = apply(bim, ... @(bs)~imbinarize(rgb2gray(bs.Data),thresh)); bigimageshow(bq,'CDataMapping','scaled');
Accelerate Processing Using Parallel Computing Toolbox
If you have the Parallel Computing Toolbox™ installed, then you can distribute the processing across multiple workers to accelerate the processing. To try processing the image in parallel, set the
runInParallel variable to
runInParallel = false; if runInParallel % Open a pool p = gcp; % Ensure workers are on the same folder as the file to be able to % access it using just the relative path sourceDir = fileparts(which('tumor_091R.tif')); spmd cd(sourceDir) end % Run in parallel bq = apply(bim, ... @(bs)~imbinarize(rgb2gray(bs.Data),thresh),'UseParallel',true); end
