Import Co-Simulation FMU into Simulink

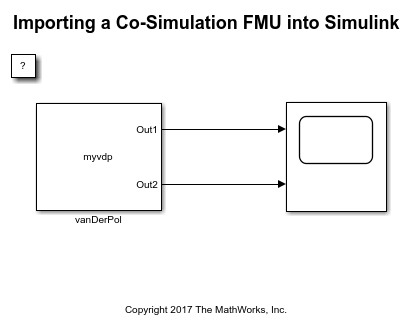

This example shows how to use the FMU Import block to load an FMU file. The FMU file supports execution in co-simulation mode. Simulink® software supports stepping back and forth, tuning parameters in between, and saving states for the FMU Import block as long as the FMU itself supports these features.

This FMU file models the Van der Pol equation, which is a nonlinear second order system. The FMU file supports FMI 2.0 Co-Simulation mode. You can change the communication step size in the FMU Import Block Parameters dialog box.
