Isolate Model Components for Functional Testing

You can create a standalone model for the model designed using Design Model Architecture. The model slice isolates the model components and relevant signals for debugging and refinement.

Isolate Subsystems for Functional Testing

To debug and refine a subsystem of your model, create a standalone model. The standalone model isolates the subsystem and relevant signals. You can observe the subsystem behavior without simulating the entire source model.


You cannot slice virtual subsystems. To isolate a virtual subsystem, first convert it to an atomic subsystem.

Isolate a Subsystem with Simulation-Based Inputs

To observe the simulation behavior of a subsystem, include logged signal inputs in the standalone model. When you configure the model slice, specify a simulation time window. For large models, observing subsystem behavior in a separate model can save time compared to compiling and running the entire source model.

This example shows how to include simulation effects for the Controller subsystem of a cruise control system.

Simulink canvas for cruise control system

  1. To open the Model Slicer, on the Apps tab, under Model Verification, Validation, and Test gallery, click Model Slicer.

  2. To select the starting point for dependency analysis, right-click a block, signal, or a port, and select Model Slicer > Add as Starting point.

  3. To isolate the subsystem in the sliced model, right-click the subsystem, and select Model Slicer > Slice component.

    In the example model, selecting Slice component for the Controller subsystem limits the dependency analysis to the path between the starting point (the throttle outport) and the Controller subsystem.

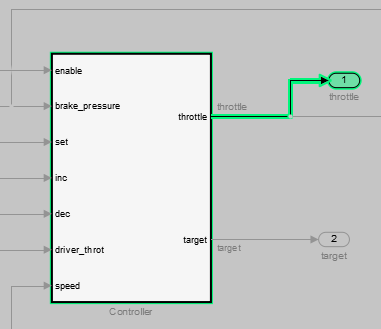

    Simulink canvas with Controller subsystem and throttle outport highlighted

  4. To specify the simulation time window:

    1. In the Model Slicer, select Simulation time window.

    2. Click the run simulation button .

    3. Enter the simulation stop time, and click OK.

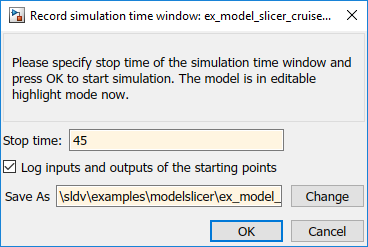

      Record simulation time window showing Stop time of 45 seconds

      The Model slicer analyzes the model dependencies for the simulation interval.

  5. To extract the subsystem and logged signals, click Generate slice. Enter a file name for the sliced model.

    Based on the dependency analysis, a Signal Editor block supplies the signal inputs to the subsystem.

    In the sliced model shown, the sliced model Signal Editor block contains one test case representing the signal inputs to the controller subsystem for simulation time 0–45 seconds.

    Simulink canvas for sliced model

Isolate Referenced Model for Functional Testing

To functionally test a referenced model, you can create a slice of a referenced model treating it as an open-loop model. You can isolate the simplified open-loop referenced model with the inputs generated by simulating the close-loop system.

This example shows how to slice the referenced model controller of a fault-tolerant fuel control system for functional testing. To create a simplified open-loop referenced model for debugging and refinement, you generate a slice of the referenced controller.

Step 1: Open the Model

The fault-tolerant fuel control system model contains a referenced model controller fuel_rate_control.


Step 2: Slice the Referenced Model

To analyze the fuel_rate_control referenced model, you slice it to create a standalone open-loop model. To open the Model Slice Manager, select Apps > Model Verification, Validation, and Test > Model Slicer, or right-click the fuel_rate_control model and select Model Slicer > Slice component. When you open the Model Slice Manager, the Model Slicer compiles the model. You then configure the model slice properties.

Note: The simulation mode of the sldvSlicerdemo_fuelsys model is Accelerator mode. When you slice the referenced model, the software configures the simulation mode to Normal mode and sets it back to its original simulation mode while exiting the Model Slicer.

Step 3: Select Starting Point

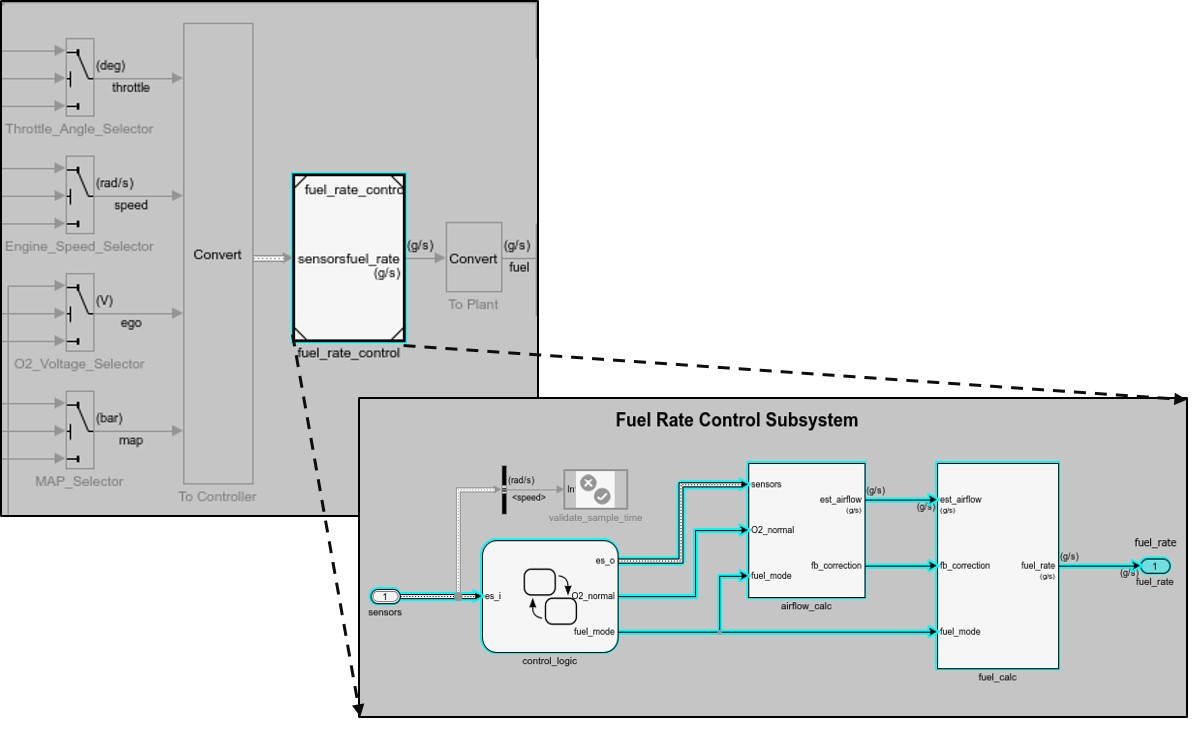

Open the fuel_rate_control model, right-click the fuel-rate port, and select Model Slicer > Add as starting point. The Model Slicer highlights the upstream constructs that affect the fuel_rate.

Step 4: Generate Slice

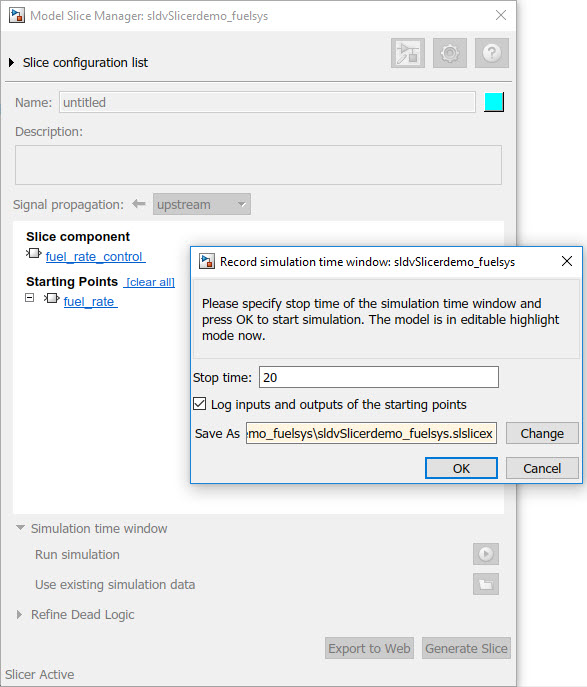

a. In the Model Slice Manager dialog box, select the Simulation time window.

b. Click Run simulation.

c. For the Stop time, enter 20. Click OK.

d. Click Generate Slice. The software simulates the sliced referenced model by using the inputs of the close-loop sldvSlicerdemo_fuelsys model.

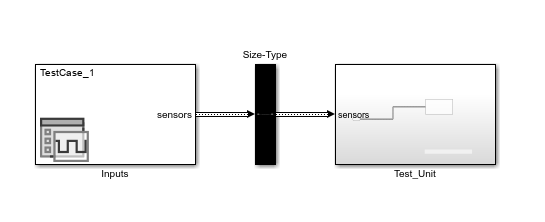

For the sliced model, in the Signal Editor window, one test case is displayed that represents the signals input to the referenced model for simulation time 0–20 seconds.
