Plot a Histogram with a Distribution Fit

This example shows how to fit a distribution to data in a ThingSpeak™ channel. You simultaneously generate a histogram and a fit to the distribution for traffic density data for a highway in Massachusetts.

Read Data from the Car-Counter ThingSpeak Channel

The car-counter ThingSpeak channel uses a Raspberry Pi™ and a webcam to count cars on a busy highway. A car-counting algorithm is running on the Raspberry Pi, and the density of cars counted every 15 seconds is sent to ThingSpeak. Fields 1 and 2 contain eastbound and westbound traffic data, respectively.

data = thingSpeakRead(38629,'NumDays',1,'Fields',[1,2],'outputFormat','table');

Filter Your Data

Before fitting the distribution, filter your data to remove zeros.

data_without_zeros = data.DensityOfEastboundCars(data.DensityOfEastboundCars > 0);

Plot Histogram and Fit Distribution

Visualize the eastbound traffic data as a histogram and fit a distribution such as normal, poisson, gamma, or kernel. Visualizing the data helps you to understand the shape of the underlying distribution. Fit a nonparametric kernel smoothing distribution.

number_of_bins = 20;
histfit(data_without_zeros,number_of_bins,'kernel');
xlabel('Bins for density of cars every 15 seconds');
title('Fitting Kernel Function on Distribution of Eastbound Cars in the Past Day');

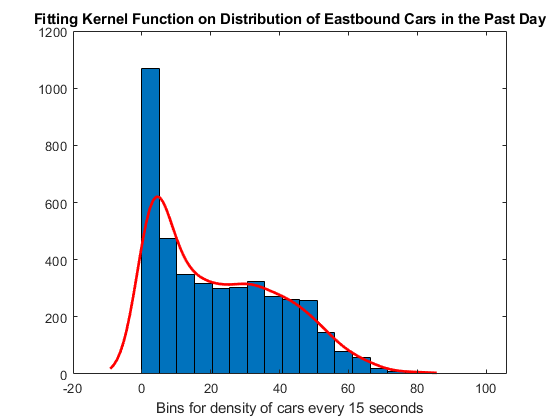

The histogram and fit show that the distribution is skewed to the right.
