Create Empty Project in Unreal Engine

If you do not have an existing Unreal Engine® project, you can create an empty project by following these steps.

  1. In Unreal Engine, select File > New Project.

  2. Create a project. For example, select the Games template category. Click Next.

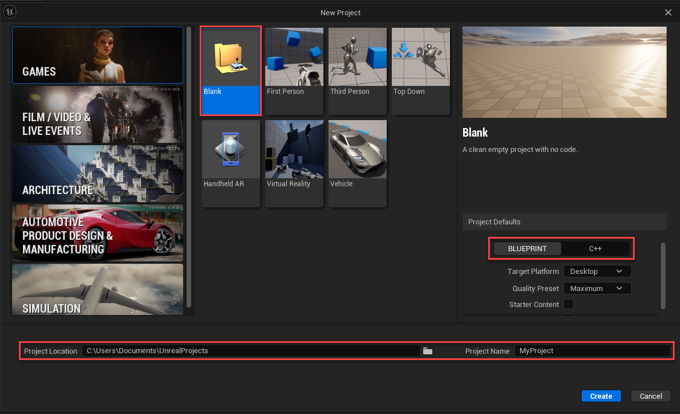

    Unreal Project browser image.

  3. Select a Blank template. Click Next.

    Unreal Project browser blank template image.

  4. In Project Settings, create a Blueprint or C++ project, and select a project name and location. Click Create Project.

    Project settings.

    The Epic Games Launcher creates a new project and opens the Unreal® Editor.

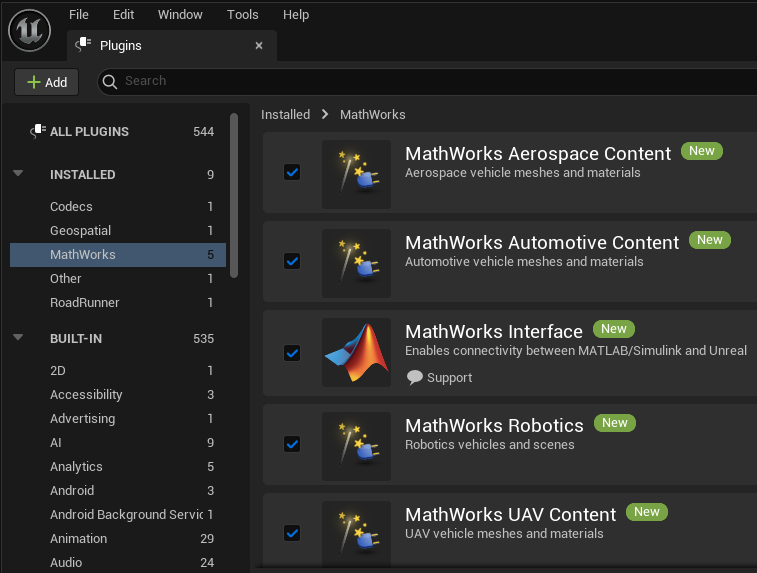

  5. Enable the MathWorks Interface plugin.

    1. Select Edit > Plugins.

    2. On the Plugins tab, navigate to MathWorks Interface. Select Enabled.

      Project settings

  6. Save the project. Close the Unreal Editor.

  7. Launch Simulink®. In a Simulation 3D Scene Configuration block, set:

    • Scene Source to Unreal Editor

    • Project to the project created in step 6.

    Select Open Unreal Editor to open the editor.
