# Depth Estimation From Stereo Video

This example shows how to detect people in video taken with a calibrated stereo camera and determine their distances from the camera.

### Load the Parameters of the Stereo Camera

Load the stereoParameters object, which is the result of calibrating the camera using either the stereoCameraCalibrator app or the estimateCameraParameters function.

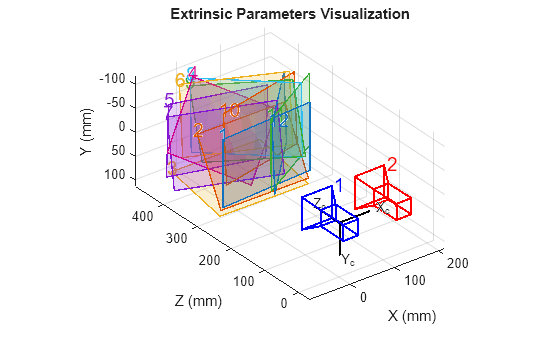

% Visualize camera extrinsics.
showExtrinsics(stereoParams);

### Create Video File Readers and the Video Player

Create System Objects for reading and displaying the video.

videoFileLeft = 'handshake_left.avi';
videoFileRight = 'handshake_right.avi';

player = vision.VideoPlayer('Position', [20,200,740 560]);

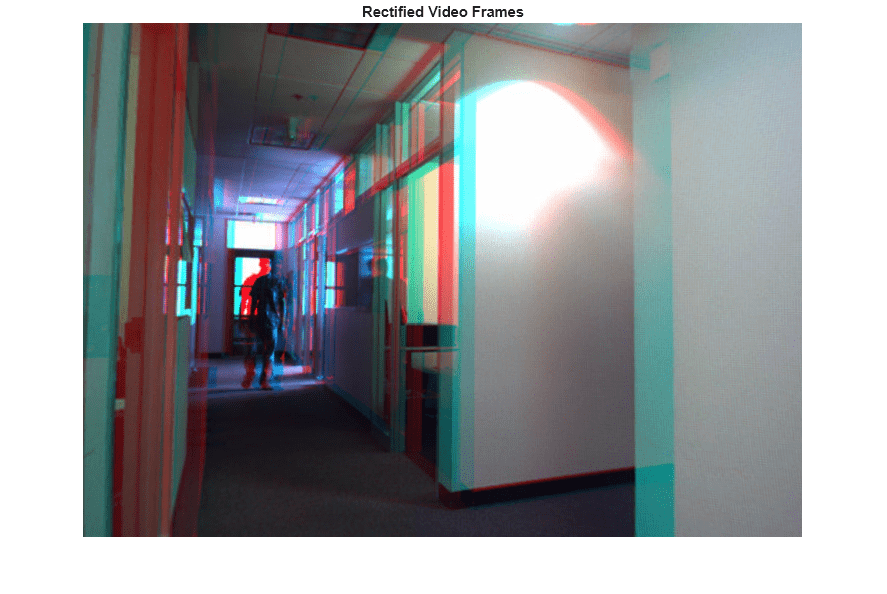

### Read and Rectify Video Frames

The frames from the left and the right cameras must be rectified in order to compute disparity and reconstruct the 3-D scene. Rectified images have horizontal epipolar lines, and are row-aligned. This simplifies the computation of disparity by reducing the search space for matching points to one dimension. Rectified images can also be combined into an anaglyph, which can be viewed using the stereo red-cyan glasses to see the 3-D effect.

[frameLeftRect, frameRightRect, reprojectionMatrix] = ...
rectifyStereoImages(frameLeft, frameRight, stereoParams);

figure;
imshow(stereoAnaglyph(frameLeftRect, frameRightRect));
title('Rectified Video Frames');

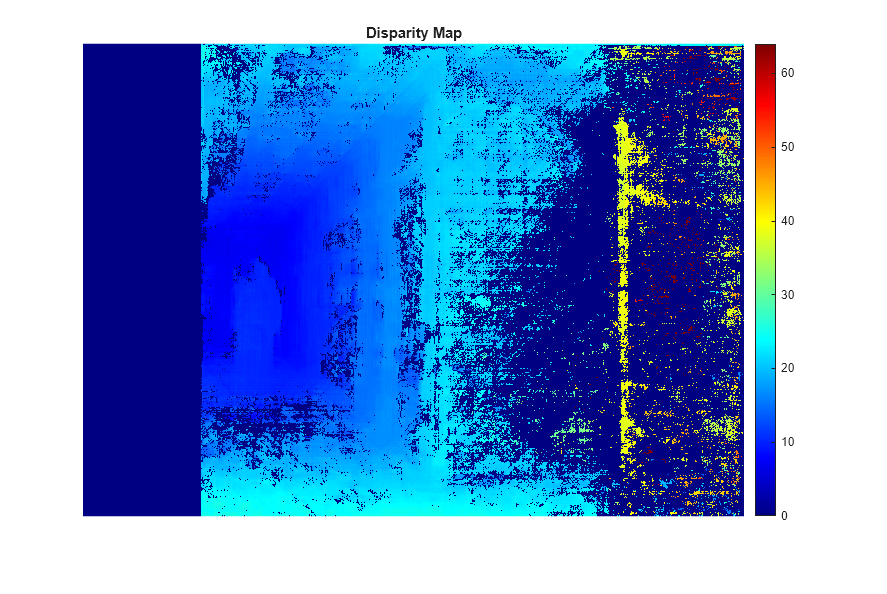

### Compute Disparity

In rectified stereo images any pair of corresponding points are located on the same pixel row. For each pixel in the left image compute the distance to the corresponding pixel in the right image. This distance is called the disparity, and it is proportional to the distance of the corresponding world point from the camera.

frameLeftGray  = rgb2gray(frameLeftRect);
frameRightGray = rgb2gray(frameRightRect);

disparityMap = disparitySGM(frameLeftGray, frameRightGray);
figure;
imshow(disparityMap, [0, 64]);
title('Disparity Map');
colormap jet
colorbar

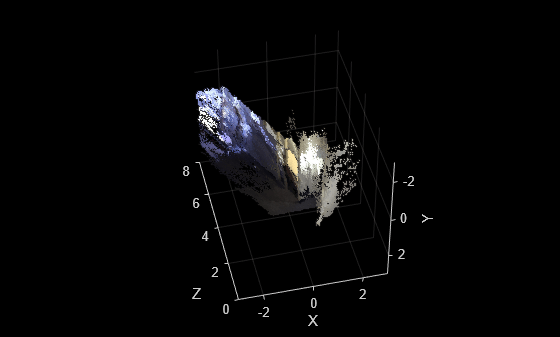

### Reconstruct the 3-D Scene

Reconstruct the 3-D world coordinates of points corresponding to each pixel from the disparity map.

points3D = reconstructScene(disparityMap, reprojectionMatrix);

% Convert to meters and create a pointCloud object
points3D = points3D ./ 1000;
ptCloud = pointCloud(points3D, 'Color', frameLeftRect);

% Create a streaming point cloud viewer
player3D = pcplayer([-3, 3], [-3, 3], [0, 8], 'VerticalAxis', 'y', ...
'VerticalAxisDir', 'down');

% Visualize the point cloud
view(player3D, ptCloud);

### Detect People in the Left Image

Use the vision.PeopleDetector system object to detect people.

% Create the people detector object. Limit the minimum object size for
% speed.
peopleDetector = vision.PeopleDetector('MinSize', [166 83]);

% Detect people.
bboxes = peopleDetector.step(frameLeftGray);

### Determine The Distance of Each Person to the Camera

Find the 3-D world coordinates of the centroid of each detected person and compute the distance from the centroid to the camera in meters.

% Find the centroids of detected people.
centroids = [round(bboxes(:, 1) + bboxes(:, 3) / 2), ...
round(bboxes(:, 2) + bboxes(:, 4) / 2)];

% Find the 3-D world coordinates of the centroids.
centroidsIdx = sub2ind(size(disparityMap), centroids(:, 2), centroids(:, 1));
X = points3D(:, :, 1);
Y = points3D(:, :, 2);
Z = points3D(:, :, 3);
centroids3D = [X(centroidsIdx)'; Y(centroidsIdx)'; Z(centroidsIdx)'];

% Find the distances from the camera in meters.
dists = sqrt(sum(centroids3D .^ 2));

% Display the detected people and their distances.
labels = cell(1, numel(dists));
for i = 1:numel(dists)
labels{i} = sprintf('%0.2f meters', dists(i));
end
figure;
imshow(insertObjectAnnotation(frameLeftRect, 'rectangle', bboxes, labels));
title('Detected People');

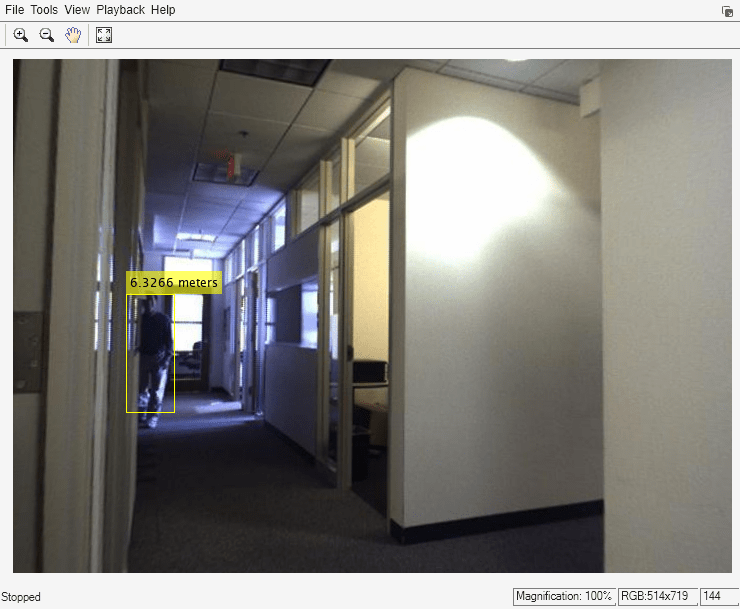

### Process the Rest of the Video

Apply the steps described above to detect people and measure their distances to the camera in every frame of the video.

% Rectify the frames.
[frameLeftRect, frameRightRect] = ...
rectifyStereoImages(frameLeft, frameRight, stereoParams);

% Convert to grayscale.
frameLeftGray  = rgb2gray(frameLeftRect);
frameRightGray = rgb2gray(frameRightRect);

% Compute disparity.
disparityMap = disparitySGM(frameLeftGray, frameRightGray);

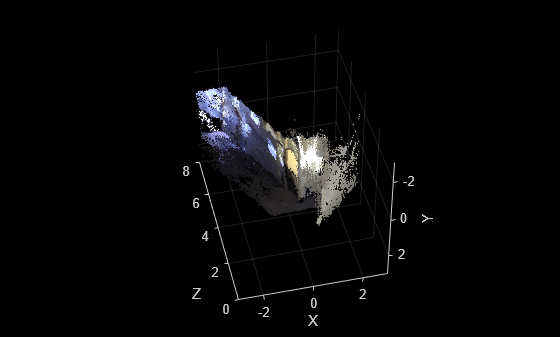

% Reconstruct 3-D scene.
points3D = reconstructScene(disparityMap, reprojectionMatrix);
points3D = points3D ./ 1000;
ptCloud = pointCloud(points3D, 'Color', frameLeftRect);
view(player3D, ptCloud);

% Detect people.
bboxes = peopleDetector.step(frameLeftGray);

if ~isempty(bboxes)
% Find the centroids of detected people.
centroids = [round(bboxes(:, 1) + bboxes(:, 3) / 2), ...
round(bboxes(:, 2) + bboxes(:, 4) / 2)];

% Find the 3-D world coordinates of the centroids.
centroidsIdx = sub2ind(size(disparityMap), centroids(:, 2), centroids(:, 1));
X = points3D(:, :, 1);
Y = points3D(:, :, 2);
Z = points3D(:, :, 3);
centroids3D = [X(centroidsIdx), Y(centroidsIdx), Z(centroidsIdx)];

% Find the distances from the camera in meters.
dists = sqrt(sum(centroids3D .^ 2, 2));

% Display the detect people and their distances.
labels = cell(1, numel(dists));
for i = 1:numel(dists)
labels{i} = sprintf('%0.2f meters', dists(i));
end
dispFrame = insertObjectAnnotation(frameLeftRect, 'rectangle', bboxes,...
labels);
else
dispFrame = frameLeftRect;
end

% Display the frame.
step(player, dispFrame);
end

% Clean up
release(player);

### Summary

This example showed how to localize pedestrians in 3-D using a calibrated stereo camera.

### References

[1] G. Bradski and A. Kaehler, "Learning OpenCV : Computer Vision with the OpenCV Library," O'Reilly, Sebastopol, CA, 2008.

[2] Dalal, N. and Triggs, B., Histograms of Oriented Gradients for Human Detection. CVPR 2005.
