ROI of Palmprint Images
Updated 6 Aug 2015
Locating the ROI of Palmprint images is a popular problem in biometrics and image processing. This is the primary step in developing a biometric system based on palmprint image recognition.
The code provided here attempts to locate the ROI of a given palm print image (either left hand or right hand), assuming that the naming convention used by CASIA database is maintained.
Simple alternations of the code should make it usable even for images outside this database. The current code checks the file name to classify the image as either left hand or right hand.

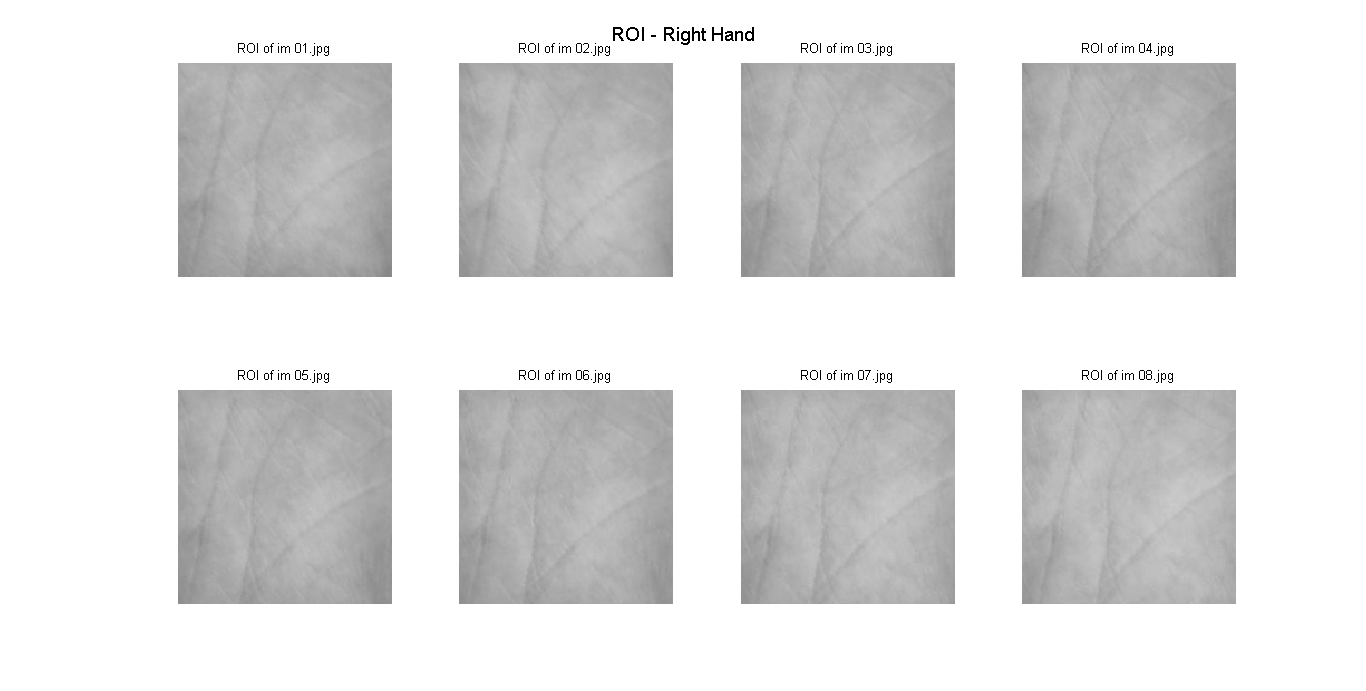

The output ROI will be a 192x192 (uint8) segment of the input image.
The method employed is simple and aimed to provide an efficient calculation. However, further optimizations should be possible since these requirements were not looked into in this version.
Please refer the reference given below for a step-by-step approach to the ROI detection.
You can browse the entire CASIA database at: http://www.cbsr.ia.ac.cn/english/Palmprint%20Databases.asp
References: David Zhang, Wai-Kin Kong, Jane You and Michael Wong, Online Palmprint Identification, published in IEEE Transactions on Pattern Analysis and Machine Intelligence (PAMI) Vol. 25, No. 9, September 2003
Sudaraka Mallawaarachchi - 23/07/2015
Sudaraka Mallawaarachchi (2023). ROI of Palmprint Images (https://www.mathworks.com/matlabcentral/fileexchange/46573-roi-of-palmprint-images), MATLAB Central File Exchange. Retrieved .
MATLAB Release Compatibility
Platform CompatibilityWindows macOS Linux
- Industries > Aerospace and Defense > C4ISR >
- Image Processing and Computer Vision > Image Processing Toolbox > Image Filtering and Enhancement > ROI-Based Processing >
Inspired: Combining Left and Right Palmprint Images for More Accurate Personal Identiﬁcation
Community Treasure Hunt
Find the treasures in MATLAB Central and discover how the community can help you!Start Hunting!
Discover Live Editor
Create scripts with code, output, and formatted text in a single executable document.
Corrected a small issue with respect to the palm print size. Will not have an impact on the output...
Updated image, included reference and improved the ROI detection accuracy and added an edge detector useful for authentication
