MATLAB Function Reference

lighting - Specify lighting algorithm

Syntax

lighting flat lighting gouraud lighting phong lighting none

lighting selects the algorithm used to calculate the effects of light objects on all surface and patch objects in the current axes.

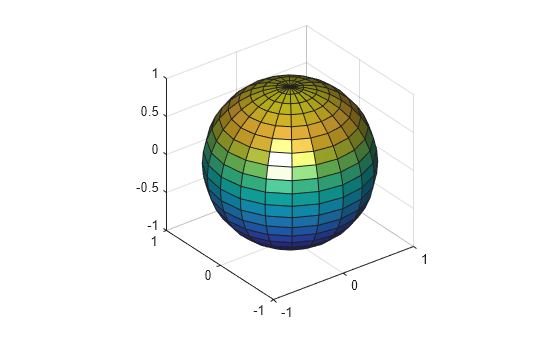

lighting flat selects flat lighting.

lighting gouraud selects gouraud lighting.

lighting phong selects phong lighting.

lighting none turns off lighting.

The surf, mesh, pcolor, fill, fill3, surface, and patch functions create graphics objects that are affected by light sources. The lighting command sets the FaceLighting and EdgeLighting properties of surfaces and patches appropriately for the graphics object.
