bwperim

Find perimeter of objects in binary image

Syntax

BW2 = bwperim(BW)
BW2 = bwperim(BW,conn)

Description

example

BW2 = bwperim(BW) returns a binary image that contains only the perimeter pixels of objects in the input image BW. A pixel is part of the perimeter if it is nonzero and it is connected to at least one zero-valued pixel.

BW2 = bwperim(BW,conn) specifies the pixel connectivity, conn.

Examples

collapse all

Read binary image into workspace.

BW = imread('circles.png');

Calculate the perimeters of objects in the image.

BW2 = bwperim(BW,8);

Display the original image and the perimeters side-by-side.

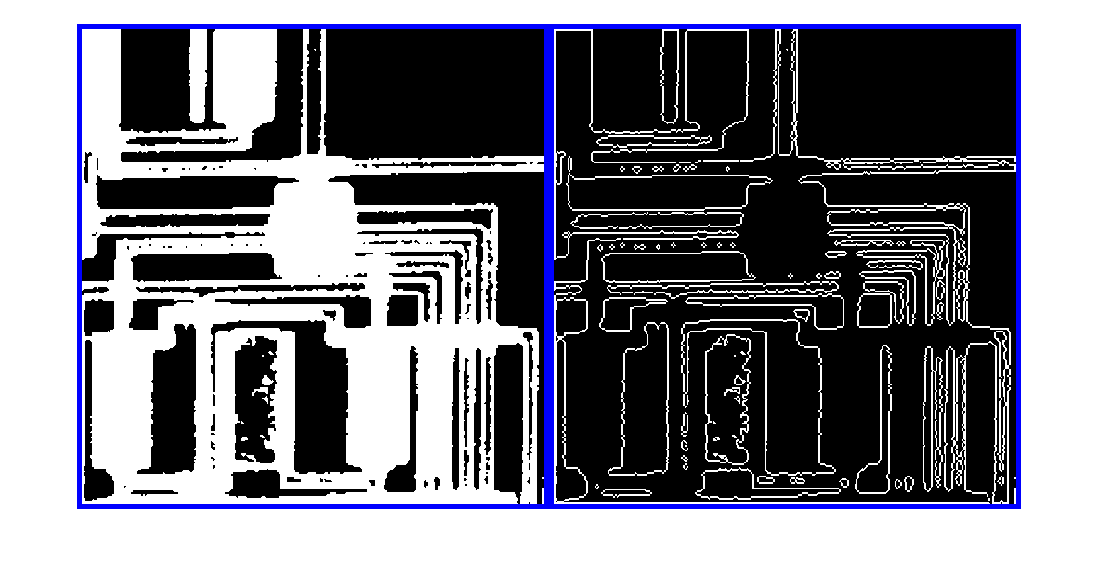

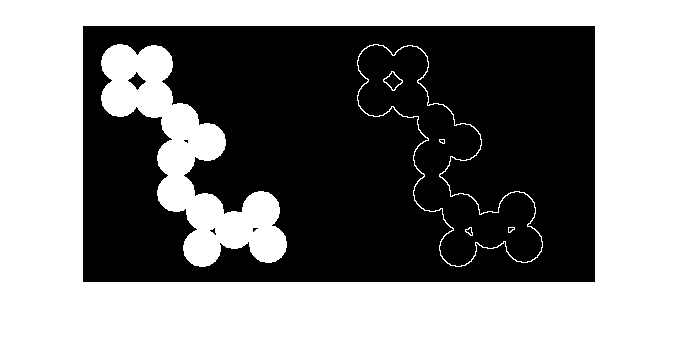

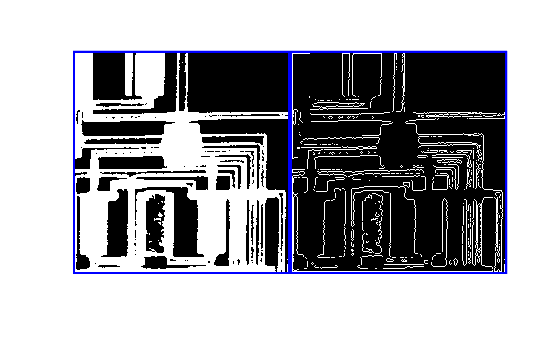

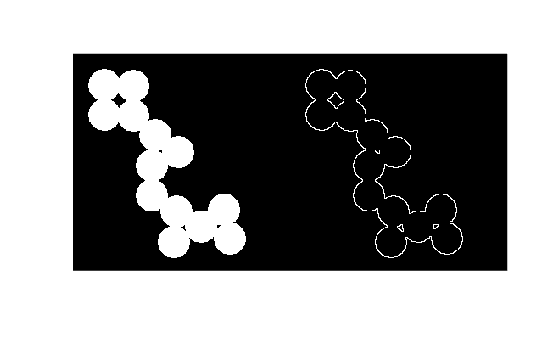

imshowpair(BW,BW2,'montage')

Input Arguments

collapse all

Input binary image, specified as a 2-D numeric or logical matrix.

Example: BW = imread('circles.png');

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Pixel connectivity, specified as one of the values in this table. The default connectivity is 4 for 2-D images, and 6 for 3-D images.

Value

Meaning

Two-Dimensional Connectivities

4-connected

Pixels are connected if their edges touch. Two adjoining pixels are part of the same object if they are both on and are connected along the horizontal or vertical direction.

8-connected

Pixels are connected if their edges or corners touch. Two adjoining pixels are part of the same object if they are both on and are connected along the horizontal, vertical, or diagonal direction.

Three-Dimensional Connectivities

6-connected

Pixels are connected if their faces touch. Two adjoining pixels are part of the same object if they are both on and are connected in:

  • One of these directions: in, out, left, right, up, and down

18-connected

Pixels are connected if their faces or edges touch. Two adjoining pixels are part of the same object if they are both on and are connected in

  • One of these directions: in, out, left, right, up, and down

  • A combination of two directions, such as right-down or in-up

26-connected

Pixels are connected if their faces, edges, or corners touch. Two adjoining pixels are part of the same object if they are both on and are connected in

  • One of these directions: in, out, left, right, up, and down

  • A combination of two directions, such as right-down or in-up

  • A combination of three directions, such as in-right-up or in-left-down

For higher dimensions, bwperim uses the default value conndef(ndims(BW),'minimal').

Connectivity can also be defined in a more general way for any dimension by specifying a 3-by-3-by- ... -by-3 matrix of 0s and 1s. The 1-valued elements define neighborhood locations relative to the center element of conn. Note that conn must be symmetric about its center element. See Specifying Custom Connectivities for more information.

Data Types: double | logical

Output Arguments

collapse all

Output image containing only perimeter pixels of objects, returned as a logical array.

Extended Capabilities

Introduced before R2006a
