# rgb2hsv

Convert RGB colors to HSV

## Syntax

``hsv = rgb2hsv(rgb)``

## Description

example

````hsv = rgb2hsv(rgb)` converts RGB values to the appropriate hue, saturation, and value (HSV) coordinates. `rgb` can be a p-by-3 colormap array or an m-by-n-by-3 image array. `hsv` is the same size as `rgb`.```

## Examples

collapse all

Get a down-sampled version of the `prism` colormap.

`rgb = prism(6)`
```rgb = 6×3 1.0000 0 0 1.0000 0.5000 0 1.0000 1.0000 0 0 1.0000 0 0 0 1.0000 0.6667 0 1.0000 ```

Convert the RGB values in the colormap to HSV.

`hsv = rgb2hsv(rgb)`
```hsv = 6×3 0 1.0000 1.0000 0.0833 1.0000 1.0000 0.1667 1.0000 1.0000 0.3333 1.0000 1.0000 0.6667 1.0000 1.0000 0.7778 1.0000 1.0000 ```

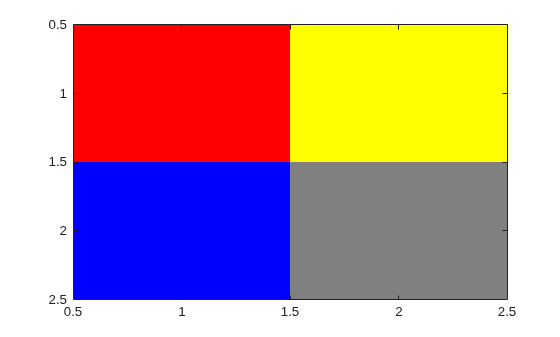

Create a 2-by-2 truecolor image.

```rgb(:,:,1) = [1 1; 0 .5]; rgb(:,:,2) = [0 1; 0 .5]; rgb(:,:,3) = [0 0; 1 .5]; image(rgb);```

Convert the image to an HSV array.

`hsv = rgb2hsv(rgb)`
```hsv = hsv(:,:,1) = 0 0.1667 0.6667 0 hsv(:,:,2) = 1 1 1 0 hsv(:,:,3) = 1.0000 1.0000 1.0000 0.5000 ```

## Input Arguments

collapse all

RGB values to convert, specified as a p-by-3 array or an m-by-n-by-3 image array.

If `rgb` is a p-by-3 array, then it must be of type `double`, and each row must contain an RGB triplet. An RGB triplet is a three-element row vector whose values specify the red, green, and blue components of a color, respectively. The values must be in the range [0, 1].

If `rgb` is an m-by-n-by-3 image array, then it can be of type `double`, `single`, `uint8`, or `uint16`. The third dimension of the array specifies the red, green, or blue intensity at pixel `(i,j)`:

• `rgb(i,j,1)` specifies the red intensity.

• `rgb(i,j,2)` specifies the green intensity.

• `rgb(i,j,3)` specifies the blue intensity.

Data Types: `single` | `double` | `uint8` | `uint16`

## Output Arguments

collapse all

HSV values, returned as returned as an array that is the same size as `rgb`: a p-by-3 array or an m-by-n-by-3 array. The values are in the range [0, 1], and their type depends on the type of `rgb`:

• If `rgb` is of type `single`, then `hsv` is of type `single`.

• Otherwise, `hsv` is of type `double`.

The attributes (hue, saturation, and value) are described in the following table.

AttributeDescription Location in hsv Array
HueValue from `0` to `1` that corresponds to the color’s position on a color wheel. As hue increases from `0` to `1`, the color transitions from red to orange, yellow, green, cyan, blue, magenta, and finally back to red.
• `hsv(:,1)` when `hsv` is p-by-3

• `hsv(:,:,1)` when `hsv` is m-by-n-by-3

SaturationAmount of hue or departure from neutral. `0` indicates a neutral shade, whereas `1` indicates maximum saturation.
• `hsv(:,2)` when `hsv` is p-by-3

• `hsv(:,:,2)` when `hsv` is m-by-n-by-3

Value

Maximum value among the red, green, and blue components of a specific color.

• `hsv(:,3)` when `hsv` is p-by-3

• `hsv(:,:,3)` when `hsv` is m-by-n-by-3

## References

[1] Smith, A. R. “Color Gamut Transform Pairs”. SIGGRAPH 78 Conference Proceedings. 1978, pp. 12–19.
