# triangulate

3-D locations of undistorted matching points in stereo images

## Syntax

``worldPoints = triangulate(matchedPoints1,matchedPoints2,stereoParams)``
``worldPoints = triangulate(matchedPoints1,matchedPoints2,cameraMatrix1,cameraMatrix2)``
``````[worldPoints,reprojectionErrors] = triangulate(___)``````

## Description

example

````worldPoints = triangulate(matchedPoints1,matchedPoints2,stereoParams)` returns 3-D locations of matching pairs of undistorted image points from two stereo images.```
````worldPoints = triangulate(matchedPoints1,matchedPoints2,cameraMatrix1,cameraMatrix2)` returns the 3-D locations of the matching pairs in a world coordinate system. These locations are defined by camera projection matrices. ```
``````[worldPoints,reprojectionErrors] = triangulate(___)``` additionally returns reprojection errors for the world points using any of the input arguments from previous syntaxes.```

## Examples

collapse all

```load('webcamsSceneReconstruction.mat'); ```

Read in the stereo pair of images.

```I1 = imread('sceneReconstructionLeft.jpg'); I2 = imread('sceneReconstructionRight.jpg'); ```

Undistort the images.

```I1 = undistortImage(I1,stereoParams.CameraParameters1); I2 = undistortImage(I2,stereoParams.CameraParameters2); ```

Detect a face in both images.

```faceDetector = vision.CascadeObjectDetector; face1 = faceDetector(I1); face2 = faceDetector(I2); ```

Find the center of the face.

```center1 = face1(1:2) + face1(3:4)/2; center2 = face2(1:2) + face2(3:4)/2; ```

Compute the distance from camera 1 to the face.

```point3d = triangulate(center1, center2, stereoParams); distanceInMeters = norm(point3d)/1000; ```

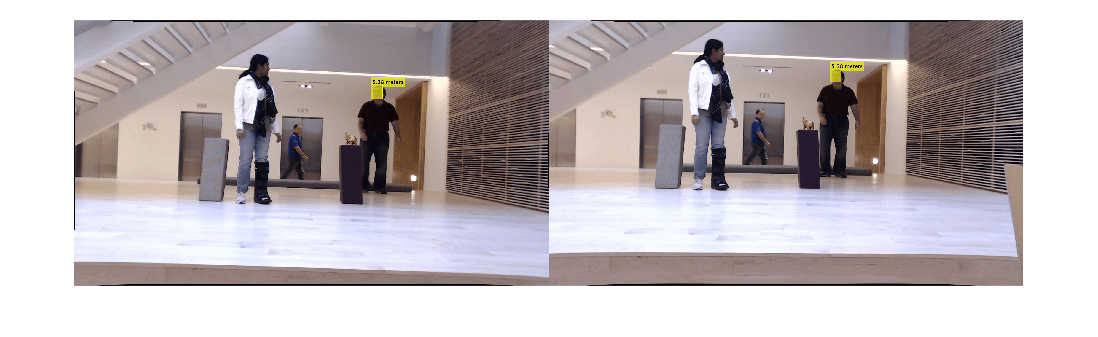

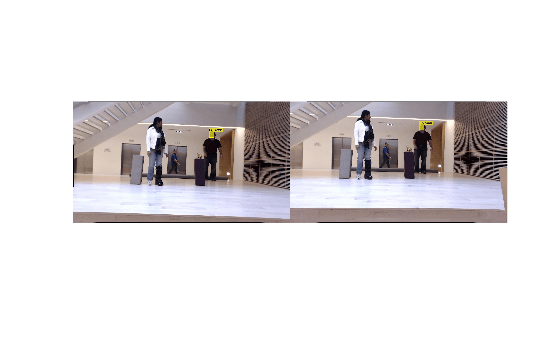

Display the detected face and distance.

```distanceAsString = sprintf('%0.2f meters', distanceInMeters); I1 = insertObjectAnnotation(I1,'rectangle',face1,distanceAsString,'FontSize',18); I2 = insertObjectAnnotation(I2,'rectangle',face2, distanceAsString,'FontSize',18); I1 = insertShape(I1,'FilledRectangle',face1); I2 = insertShape(I2,'FilledRectangle',face2); imshowpair(I1, I2, 'montage'); ```

## Input Arguments

collapse all

Coordinates of points in image 1, specified as an M-by-2 matrix of M number of [x y] coordinates, or as a `SURFPoints`, `MSERRegions`, `cornerPoints`, or `BRISKPoints` object. The `matchedPoints1` and `matchedPoints2` inputs must contain points that are matched using a function such as `matchFeatures`.

Coordinates of points in image 2, specified as an M-by-2 matrix of M number of [x y] coordinates, or as a `SURFPoints`, `MSERRegions`, `cornerPoints`, or `BRISKPoints` object. The `matchedPoints1` and `matchedPoints2` inputs must contain points that are matched using a function such as `matchFeatures`.

Camera parameters for stereo system, specified as a `stereoParameters` object. The object contains the intrinsic, extrinsic, and lens distortion parameters of the stereo camera system. You can use the `estimateCameraParameters` function to estimate camera parameters and return a `stereoParameters` object.

When you pass a `stereoParameters` object to the function, the origin of the world coordinate system is located at the optical center of camera 1. The x-axis points to the right, the y-axis points down, and the z-axis points away from the camera.

Projection matrix for camera 1, specified as a 4-by-3 matrix. The matrix maps a 3-D point in homogeneous coordinates onto the corresponding point in the camera's image. This input describes the location and orientation of camera 1 in the world coordinate system. `cameraMatrix1` must be a real and nonsparse numeric matrix. You can obtain the camera matrix using the `cameraMatrix` function.

Camera matrices passed to the function, define the world coordinate system.

Projection matrix for camera 1, specified as a 4-by-3 matrix. The matrix maps a 3-D point in homogeneous coordinates onto the corresponding point in the camera's image. This input describes the location and orientation of camera 1 in the world coordinate system. `cameraMatrix1` must be a real and nonsparse numeric matrix. You can obtain the camera matrix using the `cameraMatrix` function.

Camera matrices passed to the function, define the world coordinate system.

## Output Arguments

collapse all

3-D locations of matching pairs of undistorted image points, specified as an M-by-3 matrix. The matrix contains M number of [x,y, z] locations of matching pairs of undistorted image points from two stereo images.

When you specify the camera geometry using `stereoParams`, the world point coordinates are relative to the optical center of camera 1.

When you specify the camera geometry using `cameraMatrix1` and `cameraMatrix2`, the world point coordinates are defined by the camera matrices.

The function returns `worldPoints` as `double`, if `matchedPoints1` and `matchedPoints2` are `double`. Otherwise the function returns `worldPoints` as `single`.

Data Types: `single` | `double`

Reprojection errors, returned as an M-by-1 vector. The function projects each world point back into both images. Then in each image, the function calculates the reprojection error as the distance between the detected and the reprojected point. The `reprojectionErrors` vector contains the average reprojection error for each world point.

## Tips

The `triangulate` function does not account for lens distortion. You can undistort the images using the `undistortImage` function before detecting the points. Alternatively, you can undistort the points themselves using the `undistortPoints` function.

## References

[1] Hartley, R. and A. Zisserman. "Multiple View Geometry in Computer Vision." Cambridge University Press, p. 312, 2003.
