Custom-shaped histogram

by

Image Analyst (view profile)



06 Oct 2010 (Updated )

Transform an image to have any histogram you want.

| Watch this File

File Information
Description

This script transforms an image such that the object in the "foreground" of the image now becomes the histogram of the transformed image.
I provide three examples with 3 demo images:
   I change the image of a city skyline so that the histogram of the new image looks like the skyline.
   I change the image of a car so that the histogram of the new image looks like the car shape.

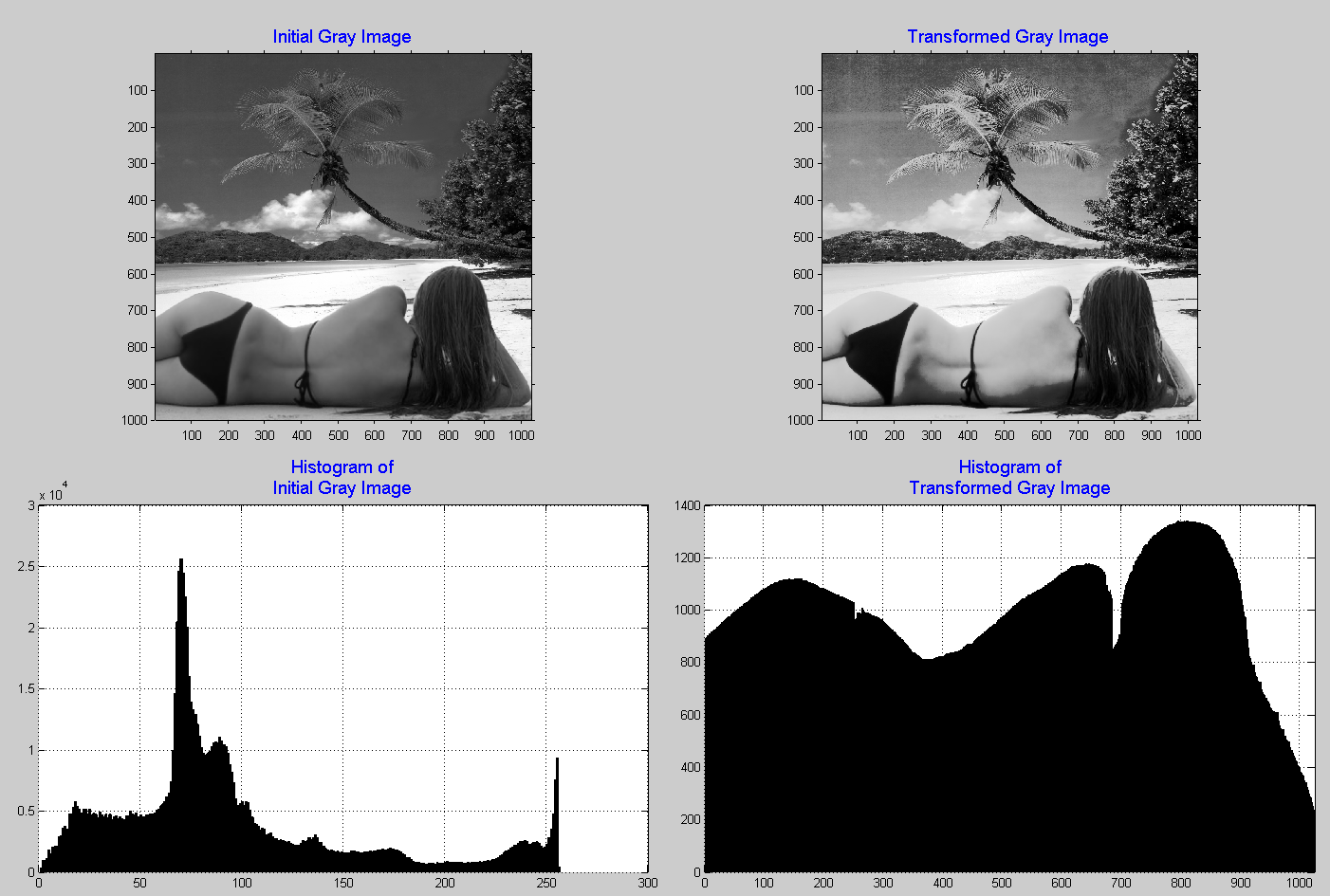

   I change the image of a woman so that the histogram of the new image looks like the shape of the woman. (See screenshot)
The script can also produce a perfectly flat histogram - the ultimate histogram equalization, far better than any standard histogram equalization method because the final histogram is TRULY FLAT.

In addition I give some examples for how to segment multi-colored objects (car, skyline, woman) out of the foreground of the image, thus demonstrating some standard image processing techniques such as color classification and thresholding.

As an extra bonus, I provide a thresholding GUI application where you can interactively threshold your image with scrollbars and see the results (original, binary, and masked) immediately. You can use this with any integer or floating point image. Here, if you uncomment it in the code, you can use it to select threshold values for the hue, saturation, and value channels of the "beach_woman" image. But it can be used in general for any image - it's not specific for this shaped histogram script, it's just bundled in.
