SCATTERCLOUD

4.57143

4.6 | 16 ratings Rate this file 37 Downloads (last 30 days) File Size: 2.38 KB File ID: #6037
image thumbnail

SCATTERCLOUD

by



12 Oct 2004 (Updated )

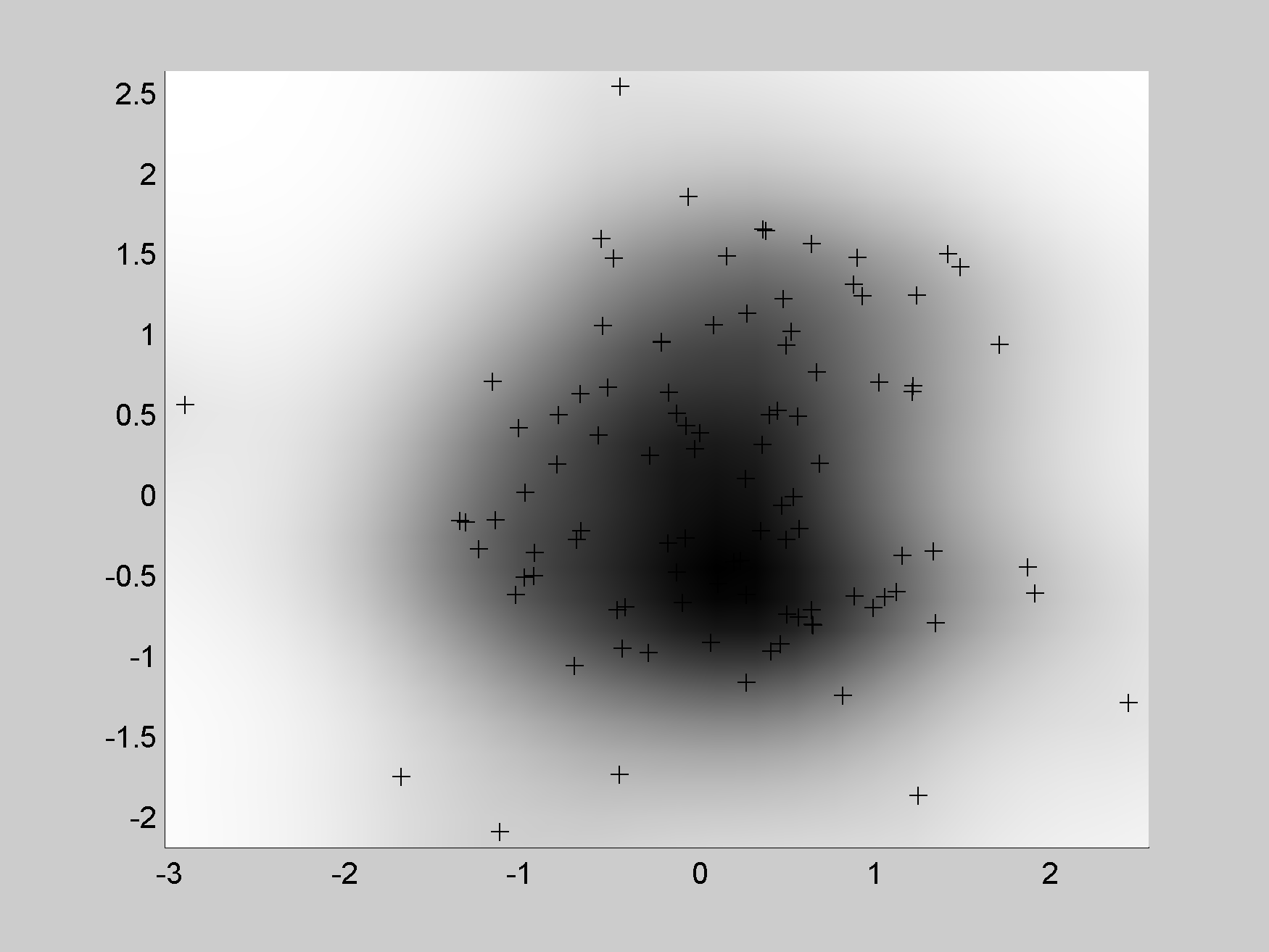

Scatterplot over a density cloud.

| Watch this File

File Information
Description

SCATTERCLOUD creates a scatterplot from X and Y data sets, and overlays it on top of a density plot of the same data.

From the help:

 SCATTERCLOUD display density of scatter data

SCATTERCLOUD(X,Y) creates a scatterplot of X and Y, displayed over a surface representing the smoothed density of the points. The density is determined with a 2D histogram, using 25 equally spaced bins in both directions.

SCATTERCLOUD(X,Y,N) uses N equally spaced bins.

SCATTERCLOUD(X,Y,N,L) uses L as a parameter to the smoothing algorithm. Defaults to 1. Larger values of L lead to a smoother density, but a worse fit to the original data.

SCATTERCLOUD(X,Y,N,L,CLM) uses CLM as the color/linestyle/marker for the scatter plot. Defaults to 'k+'.
   SCATTERCLOUD(X,Y,N,L,CLM,CMAP) uses CMAP as the figure's colormap. The default is 'flipud(gray(256))'.

H = SCATTERCLOUD(...) returns the handles for the surface and line objects created.

References:
     Eilers, Paul H. C. & Goeman, Jelle J. (2004). Enhancing scatterplots with smoothed densities. Bioinformatics 20(5), 623-628.

MATLAB release MATLAB 6.5 (R13)
Tags for This File   Please login to tag files.
Please login to add a comment or rating.
Comments and Ratings (19)
06 Dec 2013 Yung-Yeh

Very nice and decent code for displaying scatterplot in the 2D map with color for empirical distribution. The counting part was efficient only if you have a larger dataset but set a smaller # of bins. If you increase bin to larger than certain value it starts to get slowly even you have smaller dataset. I can't think of anything better but use an alternative approach for the condition with smaller dataset, and switch to the original method if the # of bin is actually smaller.

Following is my approach, similar to BLu's but with better decision switching between two methods. BTW, the centering bug was fixed in this version based on Thomas's post so length(C) == n

% do counts
if numel(x) < n^2
% New method
binIntX = diff(limitX)/(n-1);
binIntY = diff(limitX)/(n-1);
for idx = 1:numel(x)
idxX = min([round(x(idx)/binIntX)+1 numX]);
idxY = min([round(y(idx)/binIntY)+1 numY]);
C(idxY,idxX) = C(idxY,idxX) + 1;
end
else
% Old method
for i = 1:numY-1
for j = 1:numX-1
C(i,j) = length(find(x >= xEdges(j) & x < xEdges(j+1) &...
y >= yEdges(i) & y < yEdges(i+1)));
end
end
end

02 Jul 2012 Nic
21 Apr 2012 Julien

Very useful function.

02 Mar 2012 Thomas

Centering bug:
I've symmetric data, but the cloud is not symmetric! Matt's solution does not solve the problem only by shifting the cloud. Debugging the code I found the C is non-symmetric padded by zeros and therefore not smoothed symmetric!

Solution:

C = zeros(numY-1,numX-1);

[...]

s = surf(linspace(minX,maxX,n),...
linspace(minY,maxY,n),...
zeros(numY-1,numX-1),C,...
'EdgeColor','none',...
'FaceColor','interp');

23 Aug 2011 J G

This would be really useful for scatter3 too, any suggestions how I could do that?

15 Jul 2011 J G

Very cool function. Can it be done on a 3D scatter plot?

25 Apr 2011 BLu

It works well for small datasets and small n (such as 50).
I added a none option, as suggested above and changed the centering problem as suggested above.
I tried a large dataset and n=200, and have to terminate the calculation because it is taking too long. The code used in calculating the counts is not the most efficient. cloudPlot has a much more efficient algorithm. I made modification based on cloudPlot.

error(nargchk(2,6,nargin),'struct');

x = x(:);
y = y(:);

%new code
pointSelect = isinf(x) | isnan(x) | isinf(y) | isnan(y);
x = x(~pointSelect);
y = y(~pointSelect);
%new code ends

if length(x) ~= length(y)
error('SCATTERCLOUDDataVectorSizesDoNotMatch','The number of elements in x and y do not match')
end

if nargin < 6
%cmap = flipud(gray(256));
cmap='default';
end

if nargin < 5
%clm = 'k+';
clm='none';
end

if nargin < 4
l = 1;
end

if nargin < 3
n = 25;
end

% min/max of x and y
minX = min(x);
maxX = max(x);
minY = min(y);
maxY = max(y);

% edge locations
xEdges = linspace(minX,maxX,n);
yEdges = linspace(minY,maxY,n);

% shift edges
xDiff = xEdges(2) - xEdges(1);
yDiff = yEdges(2) - yEdges(1);
xEdges = [-Inf, xEdges(2:end) - xDiff/2, Inf];
yEdges = [-Inf, yEdges(2:end) - yDiff/2, Inf];

% number of edges
numX = numel(xEdges);
numY = numel(yEdges);

%new code
xBinIndex = floor((x - minX+xDiff/2)/xDiff)+1;
yBinIndex = floor((y - minY+yDiff/2)/yDiff)+1;
%new code ends

% hold counts
C = zeros(numY,numX);

% do counts
%new code
for i=1:numel(x)
C(yBinIndex(i),xBinIndex(i))=C(yBinIndex(i),xBinIndex(i))+1;
end
%new code ends

%for i = 1:numY-1
% for j = 1:numX-1
% C(i,j) = sum(x >= xEdges(j) & x < xEdges(j+1) &...
% y >= yEdges(i) & y < yEdges(i+1));
% end
% disp(num2str(i));
%end

% get rid of Infs from the edges
xEdges = [xEdges(2) - xDiff,xEdges(2:end-1), xEdges(end-1) + xDiff] + xDiff/2;
yEdges = [yEdges(2) - yDiff,yEdges(2:end-1), yEdges(end-1) + yDiff] + yDiff/2;

%xEdges = [xEdges(2) - xDiff,xEdges(2:end-1), xEdges(end-1) + xDiff];
%yEdges = [yEdges(2) - yDiff,yEdges(2:end-1), yEdges(end-1) + yDiff];

% smooth the density data, in both directions.
C = localSmooth(localSmooth(C,l)',l)';

% create the graphics
ax = newplot;
s = surf(xEdges,yEdges,zeros(numY,numX),C,...
'EdgeColor','none',...
'FaceColor','interp');
view(ax,2);
colormap(ax,cmap);
grid(ax,'off');
holdstate = get(ax,'NextPlot');
set(ax,'NextPlot','add');

if ~strcmpi(clm,'none')
p = plot(x,y,clm);
end

axis(ax,'tight');
set(ax,'NextPlot',holdstate)

% outputs
if nargout
h = [s;p];
end

function B = localSmooth(A,L)
r = size(A,1);
I = eye(r);
D1 = diff(I);
D2 = diff(I,2);
B = (I + L ^ 2 * D2' * D2 + 2 * L * D1' * D1) \ A;

27 Mar 2011 J G

works great thanks!

01 Feb 2011 Matt Caywood

To fix the glaring centering bug, change these lines from:

xEdges = [xEdges(2) - xDiff,xEdges(2:end-1), xEdges(end-1) + xDiff];
yEdges = [yEdges(2) - yDiff,yEdges(2:end-1), yEdges(end-1) + yDiff];

TO:

xEdges = [xEdges(2) - xDiff,xEdges(2:end-1), xEdges(end-1) + xDiff] + xDiff/2;
yEdges = [yEdges(2) - yDiff,yEdges(2:end-1), yEdges(end-1) + yDiff] + yDiff/2;

In the future, if there's a "simple" fix, why not post it and be helpful?

26 Nov 2010 David Verrelli

Hi, Ruello.
I haven't looked at this recently, but I believe that the point ended up being plotted at the 'bottom left' of each rectangular region over which the data points were summed.
—DIV

03 Nov 2010 Ruello Rubino

David,
could you please elaborate on "Output is biased toward the origin" and what fix did you make?

PS: Ialso fixed clm='none' issue... but I am quite puzzled by the fact that I was sure it used to work... until yesterday!
This seems an issue in the built-in function plot :
>> plot(1:10,1:10,'none')
??? Error using ==> plot
Error in color/linetype argument
!!! 'none' is listed as a valid LineStyle property, or am I wrong?!?!?
In fact:
>> p=plot(1:10,1:10);
>> set(p,'LineStyle','none')
is OK... 0_0
Sorry if this is the wrong place to post...

Ruello

17 Oct 2010 David Verrelli

Output is biased toward the origin. A fix is fairly simple. It is also useful to be able to accept CLM = 'none'. I have made those two changes in my copy of the code.

28 Jul 2010 koji takahashi
24 Nov 2009 Pearl
12 Apr 2008 Mark Tut

Thank you

01 Jun 2006 Gotzon Basterretxea
22 Aug 2005 Kay Hamacher

Excatly what I needed. Thanks!

08 Jul 2005 Erik Benkler

very useful m-file.

06 May 2005 paul naude

Just what I was looking for! Now, how can one change the shade to a cold-hot colour?

Updates
18 Nov 2010

Add reference to journal article.
