# particleFilter

Particle filter object for online state estimation

## Description

A particle filter is a recursive, Bayesian state estimator that uses discrete particles to approximate the posterior distribution of an estimated state. It is useful for online state estimation when measurements and a system model, that relates model states to the measurements, are available. The particle filter algorithm computes the state estimates recursively and involves initialization, prediction, and correction steps.

`particleFilter` creates an object for online state estimation of a discrete-time nonlinear system using the discrete-time particle filter algorithm.

Consider a plant with states x, input u, output m, process noise w, and measurement y. Assume that you can represent the plant as a nonlinear system.

The algorithm computes the state estimates $\stackrel{^}{x}$ of the nonlinear system using the state transition and measurement likelihood functions you specify.

The software supports arbitrary nonlinear state transition and measurement models, with arbitrary process and measurement noise distributions.

To perform online state estimation, create the nonlinear state transition function and measurement likelihood function. Then construct the `particleFilter` object using these nonlinear functions. After you create the object:

1. Initialize the particles using the `initialize` command.

2. Predict state estimates at the next step using the `predict` command.

3. Correct the state estimates using the `correct` command.

The prediction step uses the latest state to predict the next state based on the state transition model you provide. The correction step uses the current sensor measurement to correct the state estimate. The algorithm optionally redistributes, or resamples, the particles in the state space to match the posterior distribution of the estimated state. Each particle represents a discrete state hypothesis of these state variables. The set of all particles is used to help determine the state estimate.

## Creation

### Syntax

``pf = particleFilter(StateTransitionFcn,MeasurementLikelihoodFcn)``

### Object Description

example

````pf = particleFilter(StateTransitionFcn,MeasurementLikelihoodFcn)` creates a particle filter object for online state estimation of a discrete-time nonlinear system. `StateTransitionFcn` is a function that calculates the particles (state hypotheses) at the next time step, given the state vector at a time step. `MeasurementLikelihoodFcn` is a function that calculates the likelihood of each particle based on sensor measurements.After creating the object, use the `initialize` command to initialize the particles with a known mean and covariance or uniformly distributed particles within defined bounds. Then, use the `correct` and `predict` commands to update particles (and hence the state estimate) using sensor measurements.```

### Input Arguments

expand all

State transition function, specified as a function handle, determines the transition of particles (state hypotheses) between time steps. Also a property of the `particleFilter` object. For more information, see Properties.

Measurement likelihood function, specified as a function handle, is used to calculate the likelihood of particles (state hypotheses) from sensor measurements. Also a property of the `particleFilter` object. For more information, see Properties.

## Properties

expand all

Number of state variables, specified as a scalar. This property is read-only and is set using `initialize`. The number of states is implicit based on the specified matrices for the initial mean of particles, or the state bounds.

Number of particles used in the filter, specified as a scalar. Each particle represents a state hypothesis. You specify this property only by using `initialize`.

State transition function, specified as a function handle, determines the transition of particles (state hypotheses) between time steps. This function calculates the particles at the next time step, including the process noise, given particles at a time step.

In contrast, the state transition function for the `extendedKalmanFilter` and `unscentedKalmanFilter` generates a single state estimate at a given time step.

You write and save the state transition function for your nonlinear system, and specify it as a function handle when constructing the `particleFilter` object. For example, if `vdpParticleFilterStateFcn.m` is the state transition function, specify `StateTransitionFcn` as `@vdpParticleFilterStateFcn`. You can also specify `StateTransitionFcn` as a function handle to an anonymous function.

The function signature is as follows:

`function predictedParticles = myStateTransitionFcn(previousParticles,varargin)`

The `StateTransitionFcn` function accepts at least one input argument. The first argument is the set of particles `previousParticles` that represents the state hypotheses at the previous time step. The optional use of `varargin` in the function enables you to input any extra parameters that are relevant for predicting the next state, using `predict`, as follows:

`predict(pf,arg1,arg2)`

If `StateOrientation` is 'column', then `previousParticles` is a `NumStateVariables`-by-`NumParticles` array. If `StateOrientation` is 'row', then `previousParticles` is a `NumParticles`-by-`NumStateVariables` array.

`StateTransitionFcn` must return exactly one output, `predictedParticles`, which is the set of predicted particle locations for the current time step (array with same dimensions as `previousParticles`).

`StateTransitionFcn` must include the random process noise (from any distribution suitable for your application) in the `predictedParticles`.

To see an example of a state transition function with the `StateOrientation` property set to 'column', type `edit vdpParticleFilterStateFcn` at the command line.

Measurement likelihood function, specified as a function handle, is used to calculate the likelihood of particles (state hypotheses) using the sensor measurements. For each state hypothesis (particle), the function first calculates an N-element measurement hypothesis vector. Then the likelihood of each measurement hypothesis is calculated based on the sensor measurement and the measurement noise probability distribution.

In contrast, the measurement function for `extendedKalmanFilter` and `unscentedKalmanFilter` takes a single state hypothesis and returns a single measurement estimate.

You write and save the measurement likelihood function based on your measurement model, and use it to construct the object. For example, if `vdpMeasurementLikelihoodFcn.m` is the measurement likelihood function, specify `MeasurementLikelihoodFcn` as `@vdpMeasurementLikelihoodFcn`. You can also specify `MeasurementLikelihoodFcn` as a function handle to an anonymous function.

The function signature is as follows:

`function likelihood = myMeasurementLikelihoodFcn(predictedParticles,measurement,varargin)`

The `MeasurementLikelihoodFcn` function accepts at least two input arguments. The first argument is the set of particles `predictedParticles` that represents the predicted state hypothesis. If `StateOrientation` is 'column', then `predictedParticles` is a `NumStateVariables`-by-`NumParticles` array. If `StateOrientation` is 'row', then `predictedParticles` is a `NumParticles`-by-`NumStateVariables` array. The second argument, `measurement`, is the N-element sensor measurement at the current time step. You can provide additional input arguments using `varargin`.

The `MeasurementLikelihoodFcn` must return exactly one output, `likelihood`, a vector with `NumParticles` length, which is the likelihood of the given `measurement` for each particle (state hypothesis).

To see an example of a measurement likelihood function, type ```edit vdpMeasurementLikelihoodFcn``` at the command line.

Whether the state variables have a circular distribution, specified as a logical array.

This is a read-only property and is set using `initialize`.

Circular (or angular) distributions use a probability density function with a range of `[-pi,pi]`. `IsStateVariableCircular` is a row-vector with `NumStateVariables` elements. Each vector element indicates whether the associated state variable is circular.

Policy settings that determine when to trigger resampling, specified as a `particleResamplingPolicy` object.

The resampling of particles is a vital step in estimating states using a particle filter. It enables you to select particles based on the current state, instead of using the particle distribution given at initialization. By continuously resampling the particles around the current estimate, you can get more accurate tracking and improve long-term performance.

You can trigger resampling either at fixed intervals or dynamically, based on the number of effective particles. The minimum effective particle ratio is a measure of how well the current set of particles approximates the posterior distribution. The number of effective particles is calculated by:

In this equation, `N` is the number of particles, and `w` is the normalized weight of each particle. The effective particle ratio is then `Neff` / `NumParticles`. Therefore, the effective particle ratio is a function of the weights of all the particles. After the weights of the particles reach a low enough value, they are not contributing to the state estimation. This low value triggers resampling, so the particles are closer to the current state estimation and have higher weights.

The following properties of the `particleResamplingPolicy` object can be modified to control when resampling is triggered:

PropertyValueTypeDescription

TriggerMethod

`'ratio'` (default)

`'interval'`

character vector

It is a method to determine when resampling occurs, based on the value chosen. The `'interval'` value triggers resampling at regular time steps of the particle filter operation. The `'ratio'` value triggers resampling based on the ratio of effective total particles.

SamplingInterval

1 (default)

scalar

Fixed interval between resampling, specified as a scalar. This interval determines during which correction steps the resampling is executed. For example, a value of 2 means the resampling is executed every second correction step. A value of `inf` means that resampling is never executed.

This property only applies with the `TriggerMethod` is set to `'interval'`.

MinEffectiveParticleRatio

0.5 (default)

scalar

It is the minimum desired ratio of the effective number of particles to the total number of particles `NumParticles`. The effective number of particles is a measure of how well the current set of particles approximates the posterior distribution. A lower effective particle ratio implies that a lower number of particles are contributing to the estimation and resampling is required.

If the ratio of the effective number of particles to the total number of particles `NumParticles` falls below the `MinEffectiveParticleRatio`, a resampling step is triggered.

Method used for particle resampling, specified as one of the following:

• `'multinomial'`

• `'residual'`

• `'stratified'`

• `'systematic'`

Method used for extracting a state estimate from particles, specified as one of the following:

• `'mean'` - The object outputs the weighted mean of the particles, depending on the properties `Weights` and `Particles`, as the state estimate.

• `'maxweight'` - The object outputs the particle with the highest weight as the state estimate.

Array of particle values, specified as an array based on the `StateOrientation` property:

• If `StateOrientation` is `'row'` then `Particles` is an `NumParticles`-by-`NumStateVariables` array.

• If `StateOrientation` is `'column'` then `Particles` is an `NumStateVariables`-by-`NumParticles` array.

Each row or column corresponds to a state hypothesis (a single particle).

Particle weights, defined as a vector based on the value of the `StateOrientation` property:

• If `StateOrientation` is `'row'` then `Weights` is a `NumParticles`-by-1 vector, where each weight is associated with the particle in the same row in the `Particles` property.

• If `StateOrientation` is `'column'` then `Weights` is a 1-by-`NumParticles` vector, where each weight is associated with the particle in the same column in the `Particles` property.

Current state estimate, defined as a vector based on the value of the `StateOrientation` property:

• If `StateOrientation` is `'row'` then `State` is a 1-by-`NumStateVariables` vector

• If `StateOrientation` is `'column'` then `State` is a `NumStateVariables`-by-1 vector

`State` is a read-only property, and is derived from `Particles` based on the `StateEstimationMethod` property. Refer to StateEstimationMethod for details on how the value of `State` is determined.

`State` along with `StateCovariance` can also be determined using `getStateEstimate`.

Current estimate of state estimation error covariance, defined as an `NumStateVariables`-by-`NumStateVariables` array. `StateCovariance` is a read-only property and is calculated based on the `StateEstimationMethod`. If you specify a state estimation method that does not support covariance, then the function returns `StateCovariance` as [ ].

`StateCovariance` and `State` can be determined together using `getStateEstimate`.

## Object Functions

 `initialize` Initialize the state of the particle filter `predict` Predict state and state estimation error covariance at next time step using extended or unscented Kalman filter, or particle filter `correct` Correct state and state estimation error covariance using extended or unscented Kalman filter, or particle filter and measurements `getStateEstimate` Extract best state estimate and covariance from particles `clone` Copy online state estimation object

## Examples

collapse all

To create a particle filter object for estimating the states of your system, create appropriate state transition function and measurement likelihood function for the system.

In this example, the function `vdpParticleFilterStateFcn` describes a discrete-time approximation to van der Pol oscillator with nonlinearity parameter, mu, equal to 1. In addition, it models Gaussian process noise. `vdpMeasurementLikelihood` function calculates the likelihood of particles from the noisy measurements of the first state, assuming a Gaussian measurement noise distribution.

Create the particle filter object. Use function handles to provide the state transition and measurement likelihood functions to the object.

`myPF = particleFilter(@vdpParticleFilterStateFcn,@vdpMeasurementLikelihoodFcn);`

To initialize and estimate the states and state estimation error covariance from the constructed object, use the `initialize`, `predict`, and `correct` commands.

Load the van der Pol ODE data, and specify the sample time.

`vdpODEdata.mat` contains a simulation of the van der Pol ODE with nonlinearity parameter mu=1, using ode45, with initial conditions `[2;0]`. The true state was extracted with sample time `dt = 0.05`.

```addpath(fullfile(matlabroot,'examples','control','main')) % add example data load ('vdpODEdata.mat','xTrue','dt') tSpan = 0:dt:5;```

Get the measurements. For this example, a sensor measures the first state with a Gaussian noise with standard deviation `0.04`.

```sqrtR = 0.04; yMeas = xTrue(:,1) + sqrtR*randn(numel(tSpan),1);```

Create a particle filter, and set the state transition and measurement likelihood functions.

`myPF = particleFilter(@vdpParticleFilterStateFcn,@vdpMeasurementLikelihoodFcn);`

Initialize the particle filter at state `[2; 0]` with unit covariance, and use `1000` particles.

`initialize(myPF,1000,[2;0],eye(2));`

Pick the `mean` state estimation and `systematic` resampling methods.

```myPF.StateEstimationMethod = 'mean'; myPF.ResamplingMethod = 'systematic';```

Estimate the states using the `correct` and `predict` commands, and store the estimated states.

```xEst = zeros(size(xTrue)); for k=1:size(xTrue,1) xEst(k,:) = correct(myPF,yMeas(k)); predict(myPF); end```

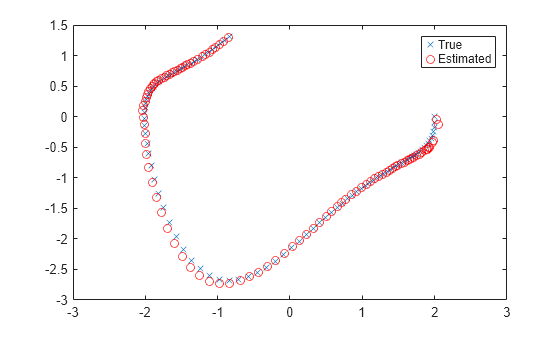

Plot the results, and compare the estimated and true states.

```figure(1) plot(xTrue(:,1),xTrue(:,2),'x',xEst(:,1),xEst(:,2),'ro') legend('True','Estimated')```

`rmpath(fullfile(matlabroot,'examples','control','main')) % remove example data`
