## Custom Nonlinear ENSO Data Analysis

This example fits the ENSO data using several custom nonlinear equations. The ENSO data consists of monthly averaged atmospheric pressure differences between Easter Island and Darwin, Australia. This difference drives the trade winds in the southern hemisphere.

The ENSO data is clearly periodic, which suggests it can be described by a Fourier series:

$$y(x)={a}_{0}+{\displaystyle \sum _{i=1}^{\infty}{a}_{i}\mathrm{cos}\left(2\pi \frac{x}{{c}_{i}}\right)}+{b}_{i}\mathrm{sin}\left(2\pi \frac{x}{{c}_{i}}\right)$$

where *a _{i}* and

*b*are the amplitudes, and

_{i}*c*are the periods (cycles) of the data. Determine how many cycles exist.

_{i}As a first attempt, assume a single cycle and fit the data using one cosine term and one sine term.

$${y}_{1}(x)={a}_{0}+{a}_{1}\mathrm{cos}\left(2\pi \frac{x}{{c}_{1}}\right)+{b}_{1}\mathrm{sin}\left(2\pi \frac{x}{{c}_{1}}\right)$$

If the fit does not describe the data well, add additional cosine and sine terms with unique period coefficients until a good fit is obtained.

The equation is nonlinear because an unknown coefficient
*c*_{1} is included as part of the
trigonometric function arguments.

### Load Data and Fit Library and Custom Fourier Models

Load the data and open the Curve Fitter app.

`load enso curveFitter`

The app includes the Fourier series as a nonlinear library equation. However, the library equation does not meet the needs of this example because its terms are defined as fixed multiples of the fundamental frequency

*w*. Refer to Fit Fourier Models for more information. Create the built-in library Fourier fit to compare with your custom equations:In the app, on the

**Curve Fitter**tab, in the**Data**section, click**Select Data**. In the Select Fitting Data dialog box, select`month`

as the**X data**value and`pressure`

as the**Y data**value.On the

**Curve Fitter**tab, in the**Fit Type**section, click the arrow to open the gallery. In the fit gallery, click**Fourier**in the**Regression Models**group.In the

**Table Of Fits**pane, double-click the**Fit name**value and enter`Fourier`

.In the

**Fit Options**pane, change the number of terms to`8`

.Observe the library model fit. In the next steps, you will create custom equations to compare.

Duplicate your fit. Right-click your fit in the

**Table Of Fits**pane and select**Duplicate "Fourier"**.Name the new fit

`Enso1Period`

.On the

**Curve Fitter**tab, in the**Fit Type**section, open the fit type gallery and click**Custom Equation**in the**Custom**group.In the

**Fit Options**pane, replace the example text in the equation edit box with the following:a0 + a1*cos(2*pi*x/c1) + b1*sin(2*pi*x/c1)

The app applies the fit to the

`enso`

data.

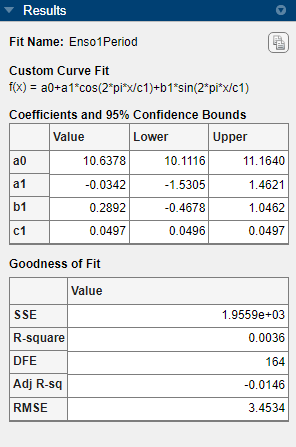

The graphical and numerical results shown here indicate that the fit
does not describe the data well. In particular, the fitted value for
`c1`

is unreasonably small. Your initial fit results might
differ from these results because the starting points are randomly selected.

By default, the coefficients are unbounded and have random starting values from 0
to 1.
The
data include a periodic component with a period of about 12 months. However, with
`c1`

unconstrained and with a random starting point, this fit
failed to find that cycle.

### Use Fit Options to Constrain a Coefficient

To assist the fitting procedure, constrain

`c1`

to a value from 10 to 14. In the**Fit Options**pane, click**Advanced Options**to expand the section and view the constraints for the coefficients. Observe that by default the coefficients are unbounded (bounds of`-Inf`

and`Inf`

).In the

**Coefficient Constraints**table, change the**Lower**and**Upper**bounds for`c1`

to constrain the cycle from 10 to 14 months, as shown next.The Curve Fitter app updates the fit.

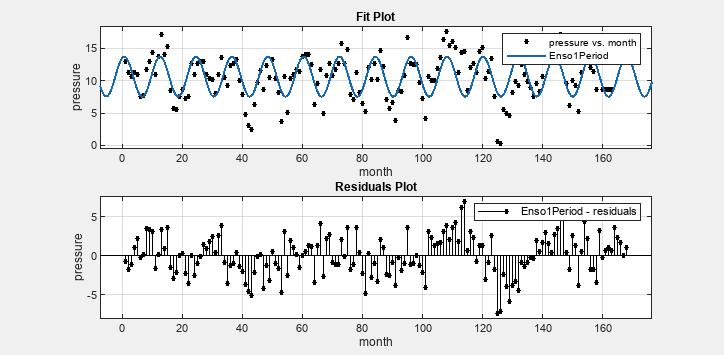

Observe the new fit and the residuals plot. If necessary, click

**Residuals Plot**in the**Visualization**section of the**Curve Fitter**tab.The fit appears to be reasonable for some data points but clearly does not describe the entire data set very well. As predicted, the numerical results in the

**Results**pane (`c1=11.94`

) indicate a cycle of approximately 12 months. However, the residuals show a systematic periodic distribution, indicating that at least one more cycle exists. There are additional cycles that you should include in the fit equation.

### Create Second Custom Fit with Additional Terms and Constraints

To refine your fit, you need to add an additional sine and cosine term to
*y*_{1}(*x*) as
follows:

$${y}_{2}(x)={y}_{1}(x)+{a}_{2}\mathrm{cos}\left(2\pi \frac{x}{{c}_{2}}\right)+{b}_{2}\mathrm{sin}\left(2\pi \frac{x}{{c}_{2}}\right)$$

and constrain the upper and lower bounds of
*c*_{2} to be roughly twice the bounds used
for *c*_{1}.

Duplicate your fit by right-clicking it in the

**Table Of Fits**pane and selecting**Duplicate "Enso1Period"**.Name the new fit

`Enso2Period`

.In the

**Fit Options**pane, add two terms to the end of the previous equation so that the equation box displays the following terms:a0 + a1*cos(2*pi*x/c1) + b1*sin(2*pi*x/c1) + a2*cos(2*pi*x/c2) + b2*sin(2*pi*x/c2)

Click

**Advanced Options**to expand the section. In the**Coefficient Constraints**table, observe the**Lower**and**Upper**bounds for`c1`

, which constrain the cycle from 10 to 14 months. Add more coefficient constraints.Change the

**Lower**and**Upper**bounds for`c2`

to be roughly twice the bounds used for`c1`

(20<`c2`

<30).Change the

**StartPoint**value for`a0`

to`5`

.

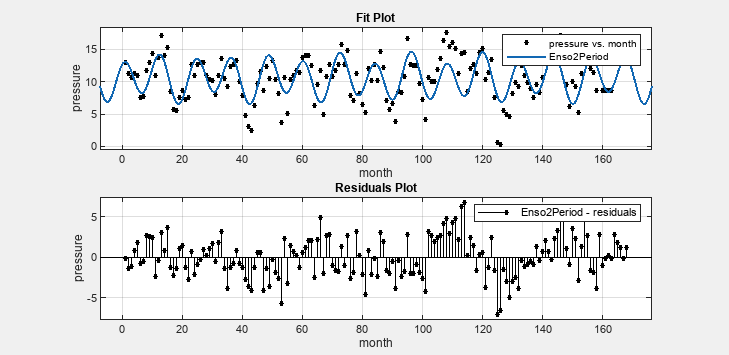

As you change each setting, the Curve Fitter app updates the fit. You can observe the fit plot and the residuals plot.

The fit appears reasonable for most data points. However, the residuals indicate that you should include another cycle to the fit equation.

### Create a Third Custom Fit with Additional Terms and Constraints

As a third attempt, add an additional sine and cosine term to
*y*_{2}(*x*)

$${y}_{3}(x)={y}_{2}(x)+{a}_{3}\mathrm{cos}\left(2\pi \frac{x}{{c}_{3}}\right)+{b}_{3}\mathrm{sin}\left(2\pi \frac{x}{{c}_{3}}\right)$$

and constrain the lower bound of *c*_{3} to
be roughly triple the value of *c*_{1}.

Duplicate your fit by right-clicking it in the

**Table Of Fits**pane and selecting**Duplicate "Enso2Period"**.Name the new fit

`Enso3Period`

.In the

**Fit Options**pane, add two terms to the end of the previous equation so that the equation box displays the following terms:a0 + a1*cos(2*pi*x/c1) + b1*sin(2*pi*x/c1) + a2*cos(2*pi*x/c2) + b2*sin(2*pi*x/c2) + a3*cos(2*pi*x/c3) + b3*sin(2*pi*x/c3)

Click

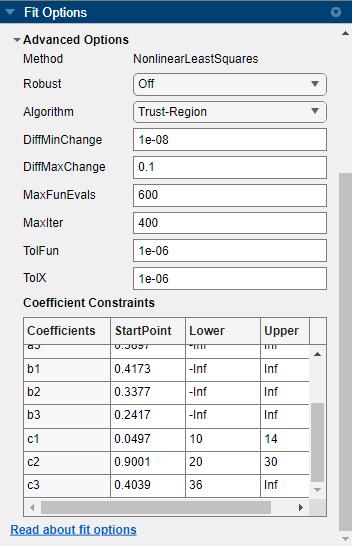

**Advanced Options**to expand the section. Observe that your previous fit options are still present.In the

**Coefficient Constraints**table, change the**Lower**bound for`c3`

to`36`

, which is roughly triple the value of`c1`

.As you change each setting, the Curve Fitter app updates the fit. You can observe the fit plot and the residuals plot.

The fit is an improvement over the previous two fits, and appears to account for most of the cycles in the ENSO data set. The residuals appear random for most of the data, although a pattern is still visible indicating that additional cycles might be present, or you can improve the fitted amplitudes.

In conclusion, Fourier analysis of the data reveals three significant cycles. The annual cycle is the strongest, but cycles with periods of approximately 44 and 22 months are also present. These cycles correspond to El Nino and the Southern Oscillation (ENSO).
