Generate cascade-forward neural network



net = cascadeforwardnet(hiddenSizes,trainFcn) returns a cascade-forward neural network with a hidden layer size of hiddenSizes and training function, specified by trainFcn.

Cascade-forward networks are similar to feed-forward networks, but include a connection from the input and every previous layer to following layers.

As with feed-forward networks, a two-or more layer cascade-network can learn any finite input-output relationship arbitrarily well given enough hidden neurons.


collapse all

This example shows how to use a cascade-forward neural network to solve a simple problem.

Load the training data.

[x,t] = simplefit_dataset;

The 1-by-94 matrix x contains the input values and the 1-by-94 matrix t contains the associated target output values.

Construct a cascade-forward network with one hidden layer of size 10.

net = cascadeforwardnet(10);

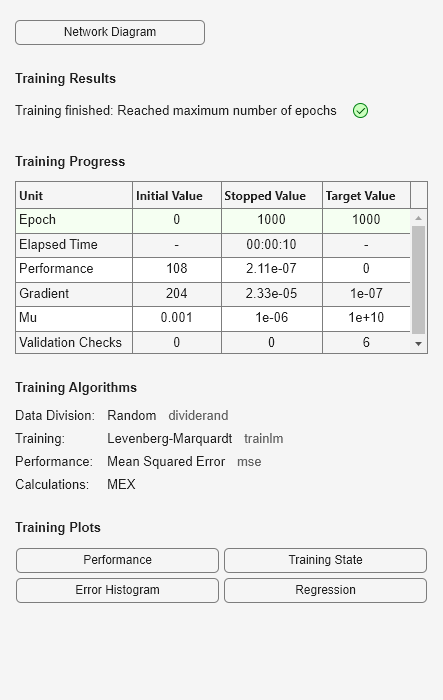

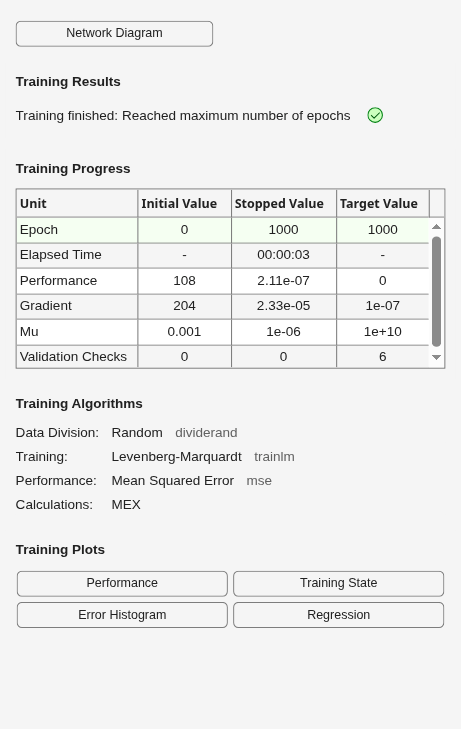

Train the network net using the training data.

net = train(net,x,t);

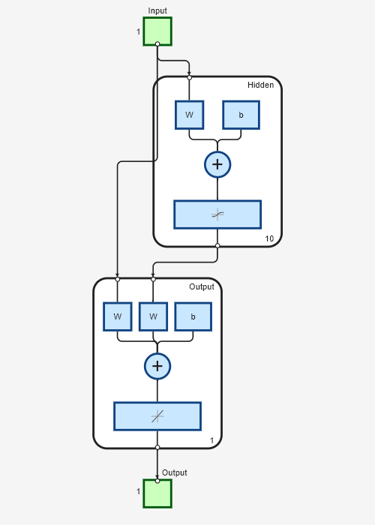

View the trained network.


Estimate the targets using the trained network.

y = net(x);

Assess the performance of the trained network. The default performance function is mean squared error.

perf = perform(net,y,t)
perf = 1.9372e-05

Input Arguments

collapse all

Size of the hidden layers in the network, specified as a row vector. The length of the vector determines the number of hidden layers in the network.

Example: For example, you can specify a network with 3 hidden layers, where the first hidden layer size is 10, the second is 8, and the third is 5 as follows: [10,8,5]

The input and output sizes are set to zero. The software adjusts the sizes of these during training according to the training data.

Data Types: single | double

Training function name, specified as one of the following.

Training FunctionAlgorithm



Bayesian Regularization


BFGS Quasi-Newton


Resilient Backpropagation


Scaled Conjugate Gradient


Conjugate Gradient with Powell/Beale Restarts


Fletcher-Powell Conjugate Gradient


Polak-Ribiére Conjugate Gradient


One Step Secant


Variable Learning Rate Gradient Descent


Gradient Descent with Momentum


Gradient Descent

Example: For example, you can specify the variable learning rate gradient descent algorithm as the training algorithm as follows: 'traingdx'

For more information on the training functions, see Train and Apply Multilayer Shallow Neural Networks and Choose a Multilayer Neural Network Training Function.

Data Types: char

Output Arguments

collapse all

Cascade-forward neural network, returned as a network object.

Version History

Introduced in R2010b
