vehicle

Add vehicle to driving scenario

Description

vc = vehicle(scenario) adds a Vehicle object, vc, to the driving scenario, scenario. The vehicle has default property values.

Vehicles are a specialized type of actor cuboid (box-shaped) object that has four wheels. For more details about how vehicles are defined, see Actors and Vehicles.

example

vc = vehicle(scenario,Name,Value) sets vehicle properties using one or more name-value pairs. For example, you can set the position, velocity, dimensions, orientation, and wheelbase of the vehicle.

Examples

collapse all

Create a driving scenario containing a curved road, two straight roads, and two actors: a car and a bicycle. Both actors move along the road for 60 seconds.

Create the driving scenario object.

scenario = drivingScenario('SampleTime',0.1','StopTime',60);

Create the curved road using road center points following the arc of a circle with an 800-meter radius. The arc starts at 0°, ends at 90°, and is sampled at 5° increments.

angs = [0:5:90]';
R = 800;
roadcenters = R*[cosd(angs) sind(angs) zeros(size(angs))];
roadwidth = 10;
road(scenario,roadcenters,roadwidth);

Add two straight roads with the default width, using road center points at each end.

roadcenters = [700 0 0; 100 0 0];
road(scenario,roadcenters)
roadcenters = [400 400 0; 0 0 0];
road(scenario,roadcenters)

Get the road boundaries.

rbdry = roadBoundaries(scenario);

Add a car and a bicycle to the scenario. Position the car at the beginning of the first straight road.

car = vehicle(scenario,'Position',[700 0 0],'Length',3,'Width',2,'Height',1.6);

Position the bicycle farther down the road.

bicycle = actor(scenario,'Position',[706 376 0]','Length',2,'Width',0.45,'Height',1.5);

Plot the scenario.

plot(scenario,'Centerline','on','RoadCenters','on');
title('Scenario');

Display the actor poses and profiles.

poses = actorPoses(scenario)
poses=2×7 struct
    ActorID
    Position
    Velocity
    Roll
    Pitch
    Yaw
    AngularVelocity

profiles = actorProfiles(scenario)
profiles=2×9 struct
    ActorID
    ClassID
    Length
    Width
    Height
    OriginOffset
    RCSPattern
    RCSAzimuthAngles
    RCSElevationAngles

Input Arguments

collapse all

Driving scenario, specified as a drivingScenario object.

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: vehicle('Length',2.2,'Width',0.6,'Height',1.5) creates a vehicle with the dimensions of a motorcycle. Units are in meters.

Classification identifier of actor, specified as the comma-separated pair consisting of 'ClassID' and a nonnegative integer.

Specify ClassID values to group together actors that have similar dimensions, radar cross-section (RCS) patterns, or other properties. As a best practice, before adding actors to a drivingScenario object, determine the actor classification scheme you want to use. Then, when creating the actors, specify the ClassID name-value pair to set classification identifiers according to the scheme.

Suppose you want to create a scenario containing these actors:

  • Two cars, one of which is the ego vehicle

  • A truck

  • A bicycle

The code shows a sample classification scheme for this scenario, where 1 refers to cars, 2 refers to trucks, and 3 refers to bicycles. The cars have default vehicle properties. The truck and bicycle have the dimensions of a typical truck and bicycle, respectively.

scenario = drivingScenario;
ego = vehicle(scenario,'ClassID',1);
car = vehicle(scenario,'ClassID',1);
truck = vehicle(scenario,'ClassID',2,'Length',8.2,'Width',2.5,'Height',3.5);
bicycle = actor(scenario,'ClassID',3,'Length',1.7,'Width',0.45,'Height',1.7);

The default ClassID of 0 is reserved for an object of an unknown or unassigned class. If you plan to import drivingScenario objects into the Driving Scenario Designer app, do not leave the ClassID property of actors set to 0. The app does not recognize a ClassID of 0 for actors and returns an error. Instead, set ClassID values of actors according to the actor classification scheme used in the app.

ClassIDClass Name
1Car
2Truck
3Bicycle
4Pedestrian
5Barrier

Position of the rotational center of the vehicle, specified as the comma-separated pair consisting of 'Position' and an [x y z] real-valued vector.

The rotational center of a vehicle is the midpoint of its rear axle. The vehicle extends rearward by a distance equal to the rear overhang. The vehicle extends forward a distance equal to the sum of the wheelbase and forward overhang. Units are in meters.

Example: [10;50;0]

Velocity (v) of the vehicle center in the x-, y- and z-directions, specified as the comma-separated pair consisting of 'Velocity' and a [vx vy vz] real-valued vector. The 'Position' name-value pair specifies the vehicle center. Units are in meters per second.

Example: [-4;7;10]

Yaw angle of the vehicle, specified as the comma-separated pair consisting of 'Yaw' and a real scalar. Yaw is the angle of rotation of the vehicle around the z-axis and is positive in the clockwise direction. Angle values are wrapped to the range [–180, 180]. Units are in degrees.

Example: -0.4

Pitch angle of the vehicle, specified as the comma-separated pair consisting of 'Pitch' and a real scalar. Pitch is the angle of rotation of the vehicle around the y-axis and is positive in the clockwise direction. Angle values are wrapped to the range [–180, 180]. Units are in degrees.

Example: 5.8

Roll angle of the vehicle, specified as the comma-separated pair consisting of 'Roll' and a real scalar. Roll is the angle of rotation of the vehicle around the x-axis and is positive in the clockwise direction. Angle values are wrapped to the range [–180, 180]. Units are in degrees.

Example: -10

Angular velocity (ω) of the vehicle, in world coordinates, specified as the comma-separated pair consisting of 'AngularVelocity' and a [ωx ωy ωz] real-valued vector. Units are in degrees per second.

Example: [20 40 20]

Length of the vehicle, specified as the comma-separated pair consisting of 'Length' and a positive real scalar. Units are in meters.

Example: 5.5

Width of the vehicle, specified as the comma-separated pair consisting of 'Width' and a positive real scalar. Units are in meters.

Example: 2.0

Height of the vehicle, specified as the comma-separated pair consisting of 'Height' and a positive real scalar. Units are in meters.

Example: 2.1

Radar cross-section (RCS) pattern of the vehicle, specified as the comma-separated pair consisting of 'RCSPattern' and a Q-by-P real-valued matrix. RCS is a function of the azimuth and elevation angles, where:

  • Q is the number of elevation angles specified by the 'RCSElevationAngles' name-value pair.

  • P is the number of azimuth angles specified by the 'RCSAzimuthAngles' name-value pair.

Units are in decibels per square meter (dBsm).

Example: 5.8

Azimuth angles of the vehicle's RCS pattern, specified as the comma-separated pair consisting of 'RCSAzimuthAngles' and a P-element real-valued vector. P is the number of azimuth angles. Values are in the range [–180°, 180°].

Each element of RCSAzimuthAngles defines the azimuth angle of the corresponding column of the 'RCSPattern' name-value pair. Units are in degrees.

Example: [-90:90]

Elevation angles of the vehicle's RCS pattern, specified as the comma-separated pair consisting of 'RCSElevationAngles' and a Q-element real-valued vector. Q is the number of elevation angles. Values are in the range [–90°, 90°].

Each element of RCSElevationAngles defines the elevation angle of the corresponding row of the 'RCSPattern' name-value pair. Units are in degrees.

Example: [0:90]

Front overhang of the vehicle, specified as the comma-separated pair consisting of 'FrontOverhang' and a real scalar. The front overhang is the distance that the vehicle extends beyond the front axle. If the vehicle does not extend past the front axle, then the front overhang is negative. Units are in meters.

Example: 0.37

Rear overhang of the vehicle, specified as the comma-separated pair consisting of 'RearOverhang' and a real scalar. The rear overhang is the distance that the vehicle extends beyond the rear axle. If the vehicle does not extend past the rear axle, then the rear overhang is negative. Negative rear overhang is common in semitrailer trucks, where the cab of the truck does not overhang the rear wheel. Units are in meters.

Example: 0.32

Distance between the front and rear axles of a vehicle, specified as the comma-separated pair consisting of 'Wheelbase' and a positive real scalar. Units are in meters.

Example: 1.51

Output Arguments

collapse all

Driving scenario vehicle, returned as a Vehicle object belonging to the driving scenario specified in scenario.

You can modify the Vehicle object by changing its property values. The property names correspond to the name-value pair arguments used to create the object.

The only property that you cannot modify is ActorID, which is a positive integer indicating the unique, scenario-defined ID of the vehicle.

To specify and visualize vehicle motion, use these functions:

trajectory

Create actor or vehicle trajectory in driving scenario

chasePlot

Ego-centric projective perspective plot

To get information about vehicle characteristics, use these functions:

actorPoses

Positions, velocities, and orientations of actors in driving scenario

actorProfiles

Physical and radar characteristics of actors in driving scenario

targetOutlines

Outlines of targets viewed by actor

targetPoses

Target positions and orientations relative to ego vehicle

driving.scenario.targetsToEgo

Convert actor poses to ego vehicle coordinates

To get information about the roads and lanes that the vehicle is on, use these functions:

roadBoundaries

Get road boundaries

driving.scenario.roadBoundariesToEgo

Convert road boundaries to ego vehicle coordinates

currentLane

Get current lane of actor

laneBoundaries

Get lane boundaries of actor lane

laneMarkingVertices

Lane marking vertices and faces in driving scenario

More About

collapse all

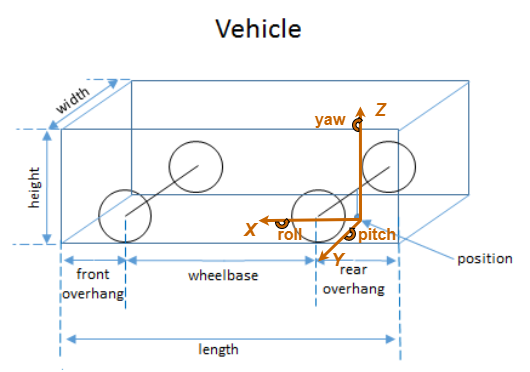

Actors and Vehicles

In driving scenarios, an actor is a cuboid (box-shaped) object with a specific length, width, and height. Actors also have a radar cross-section (RCS) pattern, specified in dBsm, which you can refine by setting angular azimuth and elevation coordinates. An actor's position is defined as the center of its bottom face. This center point is used as the actor's rotational center and point of contact with the ground.

A vehicle is a special kind of actor that moves on wheels. Vehicles have three extra properties that govern the placement of the front and rear axle.

  • Wheelbase — Distance between the front and rear axles

  • Front overhang — Distance between the front of the vehicle and the front axle.

  • Rear overhang — Distance between the rear axle and the rear of the vehicle.

Unlike other types of actors, the vehicle's position is defined by the point on the ground that is below the center of its rear axle. This point corresponds to the vehicle's natural center of rotation.

This table shows a list of common actors and their dimensions. To specify these values in Actor and Vehicle objects, set the corresponding properties shown.

Actor ClassificationActor ObjectActor Properties
LengthWidthHeightFrontOverhangRearOverhangWheelbaseRCSPattern
PedestrianActor0.24 m0.45 m1.7 mN/AN/AN/A–8 dBsm
CarVehicle4.7 m1.8 m1.4 m0.9 m1.0 m2.8 m10 dBsm
MotorcycleVehicle2.2 m0.6 m1.5 m0.37 m0.32 m1.51 m0 dBsm

Introduced in R2017a
